Goodrive300-01A series VFD for air compressor Wiring instruction
-12-

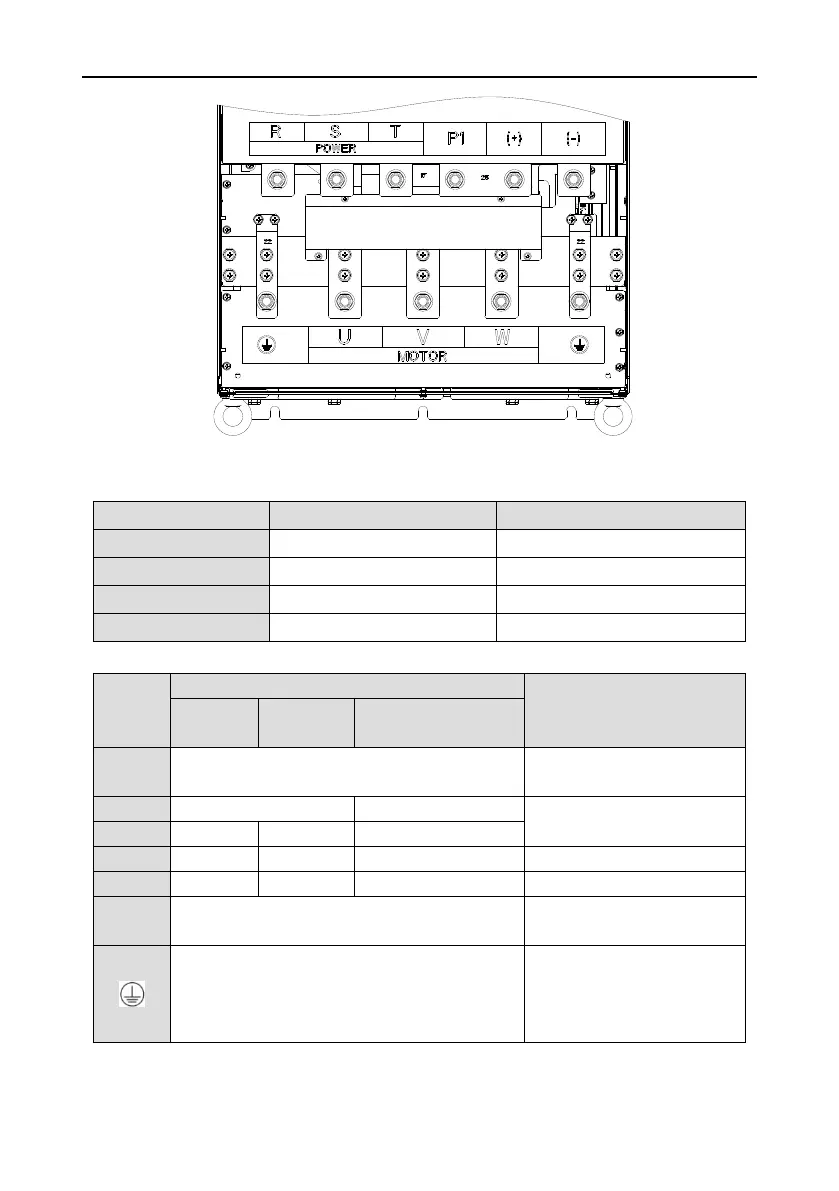

Figure 3-13 132–200kW main circuit terminal diagram
Table 3-1 Screw specification and torque of main circuit terminals of 7.5kW-200kW single VFD
Power range (kW)
Terminal screw specification
Torque of torque driver (N·m)
7.5–15
M5
2.5
18.5–37
M6
3.5
45–110
M8
10
132–200
M12
35
Table 3-2 Main circuit terminal description of single VFD
Terminal
sign
Terminal name
Terminal function
11–15kW
7.5kW and
18.5–110kW
132kW and above
R, S, T
Main circuit power input
3PH AC input terminal,
connected to the grid
P1
None
DC reactor terminal 1
P1, (+) connect to DC reactor
terminal
(+)
None
Reserved
DC reactor terminal 2
(-)
None
Reserved
Reserved
PB
None
Reserved
None
U, V, W
VFD output
3PH AC output terminal,
connected to the motor
Ground terminal for safety protection
Each machine must be
grounded; two PEs are
provided; and grounding
resistance is less than 10Ω.
