Goodrive300-01A series VFD for air compressor Wiring instruction

-13-

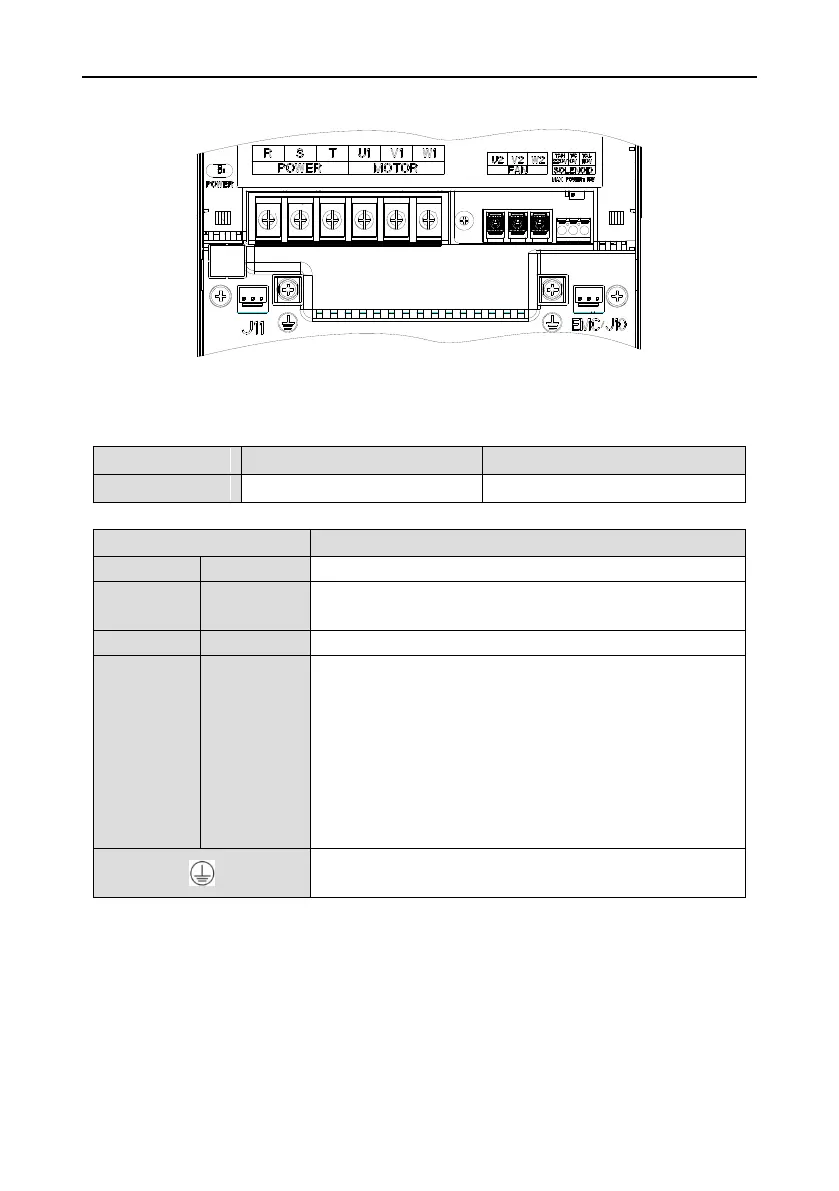

3.1.4 Main circuit terminal diagram of single-VFD integrated machine

Figure 3-14 Main circuit terminal diagram of 7.5–15kW single-VFD integrated machine

Table 3-3 Screw specification and torque of main circuit terminal of 7.5kW–15kW single-VFD

integrated machine7.5kW–15kW

Power range (kW)

Terminal screw specification

Torque of torque driver (N·m)

7.5-15

2.5

Table 3-4 Main circuit terminal description of single VFD integrated machine

Terminal sign

Function

POWER

R, S, T

3PH AC input terminal, connected to the grid

MOTOR

U1, V1, W1

3PH AC output terminal, connected to the main motor of air

compressor

FAN

U2, V2, W2

3PH AC output terminal, connected to the fan

SOLENOID

220V/TAH,

110V/TAL,

0V/TC

220V/110V output terminal, connected to solenoid valve coil

Note:

1. Max. output power of internal power-frequency transformer:

15W

2. When users choose the solenoid valve with 220V coil, connect

the solenoid coil to 220V and 0V connecting terminals;

3. When users choose the solenoid valve with 110V coil, connect

the solenoid coil to 110V and 0V connecting terminals.

Each machine must be grounded, three PEs, grounding

resistance is less than 10Ω

Note: Do not connect the connecting terminal of solenoid valve to other external loads; if the power of

solenoid valve coil exceeds 15W, the power-frequency transformer inside the integrated machine will

need to be customized or connected to external 220V/110V power independently.
