Goodrive300-01A series VFD for air compressor Commissioning instruction
-23-

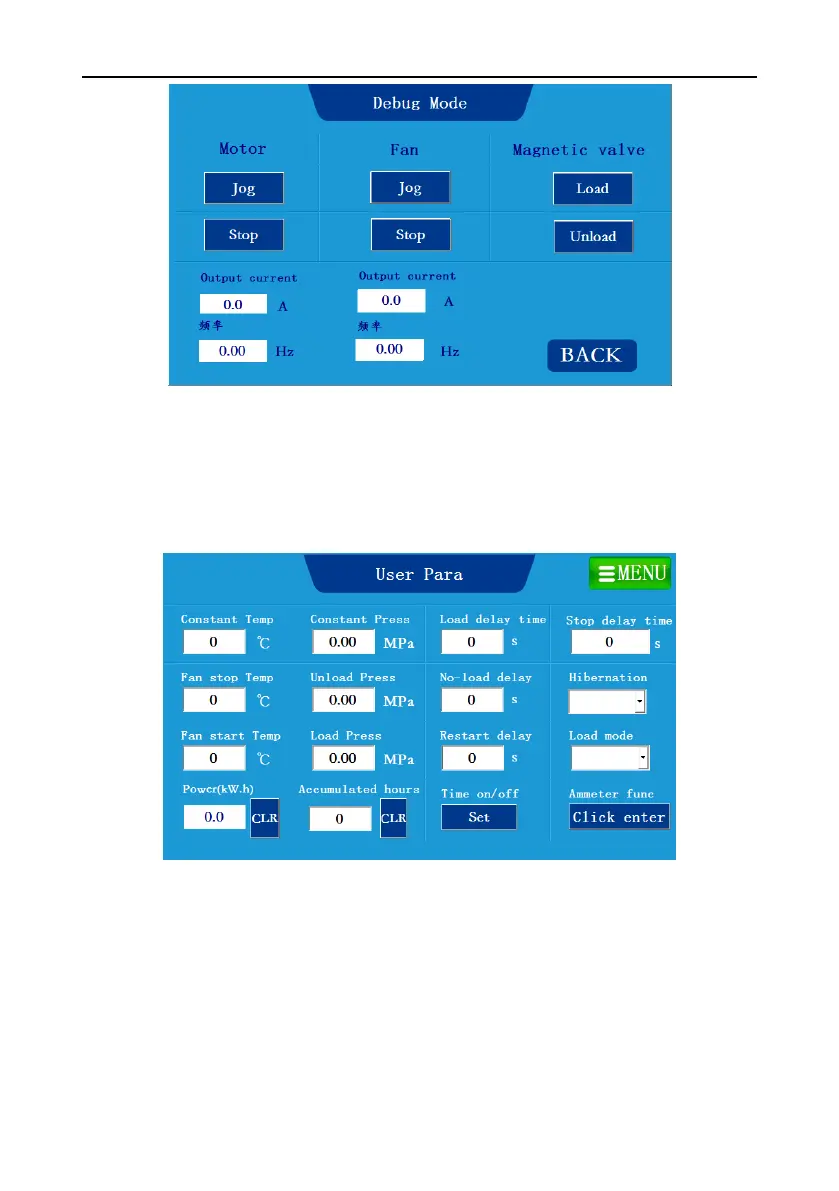

Figure 4-10 Debug mode interface
Click Jog for the motor and the fan to determine the motor rotation direction; click Load or Unload to
test the action of solenoid valve. Click BACK to enter system configuration, then, click Menu to return
to the menu interface.
Note: If the motor rotates reversely, adjust the wiring sequence of the motor cable.
6. Choose User Para in the touch screen menu. The page shown in Figure 4-11 is displayed.
Figure 4-11 User parameter interface
7. Choose Maintain Para in the touch screen menu. The page shown in Figure 4-12 is displayed.
