INVT Goodrive300 Series User Manual

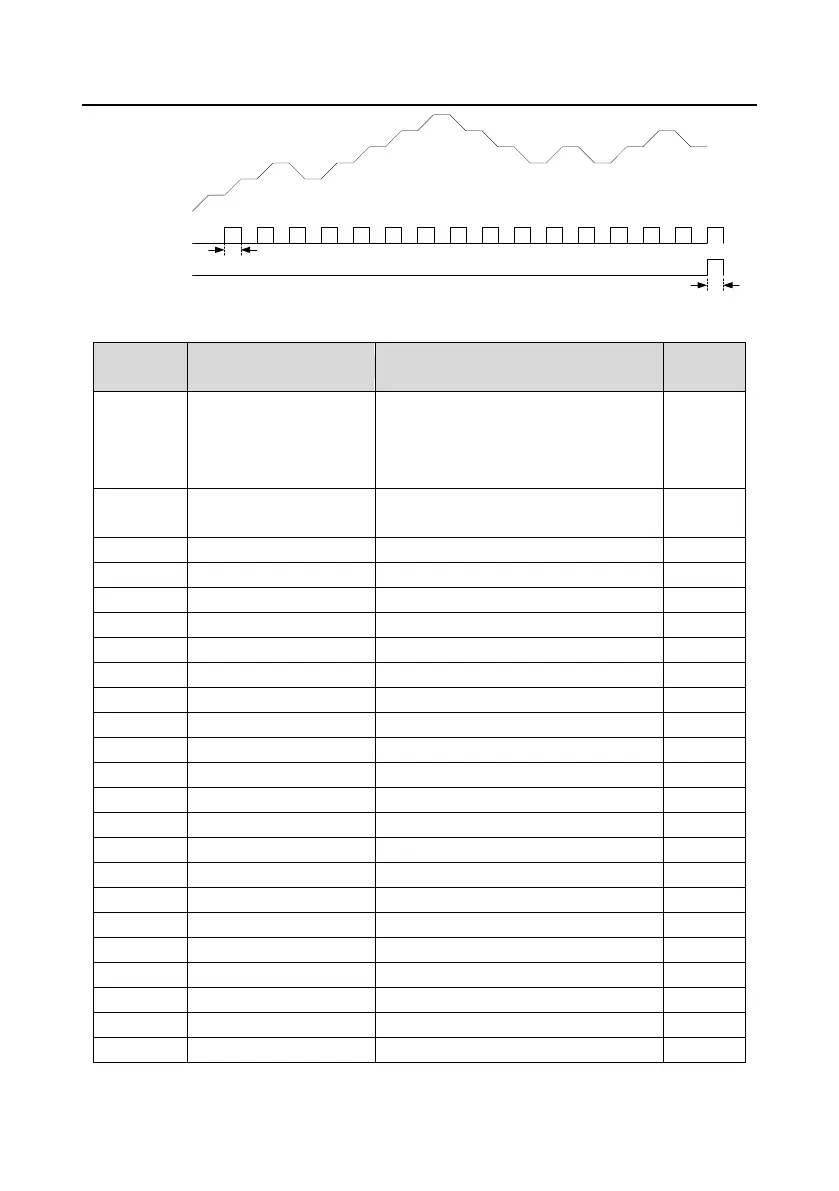

Goodrive300 Series VFD Basic operation instruction
174
200ms
200ms
Digital output 16
Simple PLC stage completion
Digital output 17
Simple PLC cycle completion
Related parameters
Function
code
Name
Detailed instruction of parameters
Default
value
P10.00
Simple PLC
0: Stop after running once
1: Run at the final value after running
once
2: Cycle running
0
P10.01
Simple PLC memory
0: Power loss without memory
1: Power loss with memory
0
P10.02
Multi-step speed 0
-100.0–100.0%
0.0%
P10.03
Running time of step 0
0.0–6553.5s (min)
0.0s
P10.04
Multi-step speed 1
-100.0–100.0%
0.0%
P10.05
Running time of step 1
0.0–6553.5s (min)
0.0s
P10.06
Multi-step speed 2
-100.0–100.0%
0.0%
P10.07
Running time of step 2
0.0–6553.5s (min)
0.0s
P10.08
Multi-step speed 3
-100.0–100.0%
0.0%
P10.09
Running time of step 3
0.0–6553.5s (min)
0.0s
P10.10
Multi-step speed 4
-100.0–100.0%
0.0%
P10.11
Running time of step 4
0.0–6553.5s (min)
0.0s
P10.12
Multi-step speed 5
-100.0–100.0%
0.0%
P10.13
Running time of step 5
0.0–6553.5s (min)
0.0s
P10.14
Multi-step speed 6
-100.0–100.0%
0.0%
P10.15
Running time of step 6
0.0–6553.5s (min)
0.0s
P10.16
Multi-step speed 7
-100.0–100.0%
0.0%
P10.17
Running time of step 7
0.0–6553.5s (min)
0.0s
P10.18
Multi-step speed 8
-100.0–100.0%
0.0%
P10.19
Running time of step 8
0.0–6553.5s (min)
0.0s
P10.20
Multi-step speed 9
-100.0–100.0%
0.0%
P10.21
Running time of step 9
0.0–6553.5s (min)
0.0s
P10.22
Multi-step speed 10
-100.0–100.0%
0.0%
