INVT Goodrive300 Series User Manual

Goodrive300 Series VFD Basic operation instruction
185

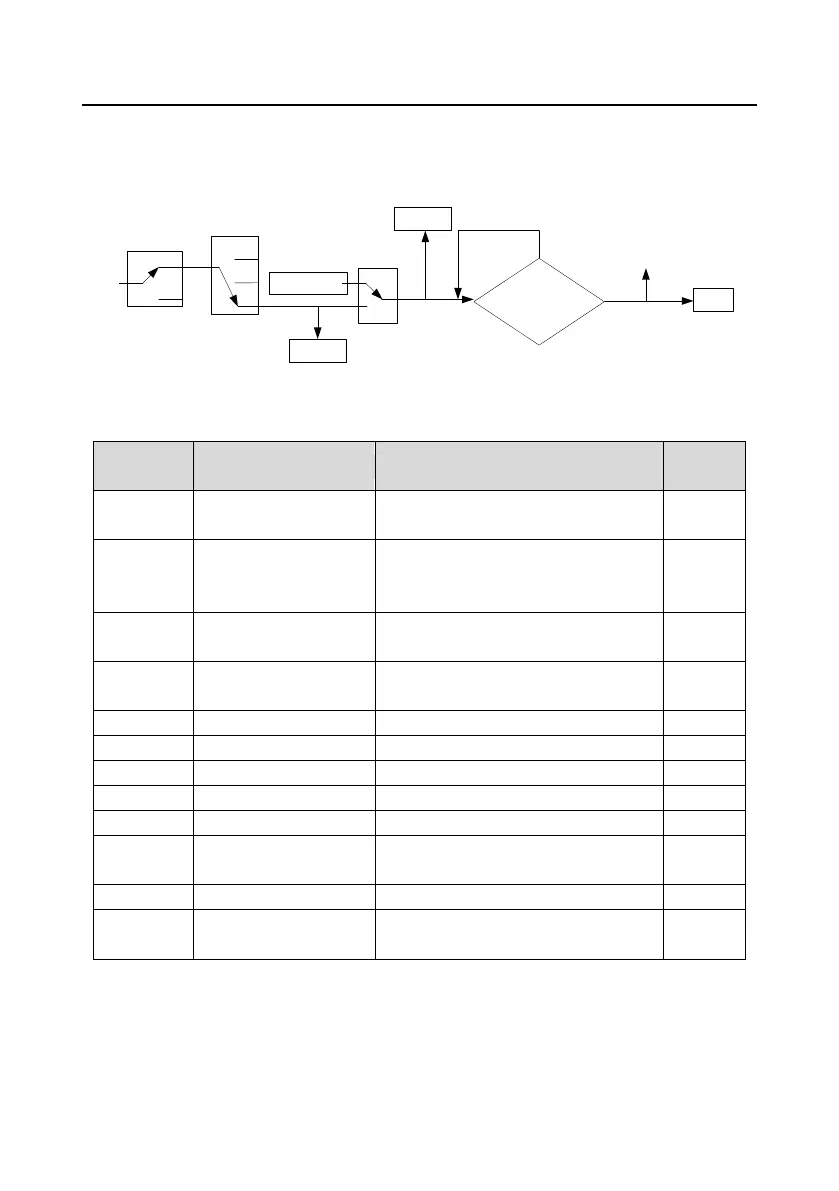

length is longer than or equal to the set length, the digital output terminal can output the length arrival
pulse signal of 200ms and the corresponding length will clear automatically.
P05.00
(HDI input type selection)
P05.49
(HDI high-speed pulse input function
selection)
0
1
2
0
1
P17.22
Length clear
P08.19 (set length)
P08.20 (actual length)
P08.20=P08.22 x P08.23 x P08.24 x f
HDI
/P08.21
P08.20>P08.19 ?
Digital output 21
Length arrival
(HDI input frequency)
Terminal function 32
Length reset
0
Y
N
P17.17
Length value
Note: The parameter of "Length arrival" is related to pulse output and the lasting time is 200ms.
Function
code
Name
Detailed instruction of parameters
Default
value
P05.00
HDI input selection
0: High pulse input.
1: Digital input.
0
P05.49
HDI high-speed pulse
input function
selection
0: Frequency setting input
1: Counter input
2: Length counting input
0
P05.01–
P05.09
Digital input function
selection
32: Length reset
P06.01–
P06.04
Digital output function
selection
21: Length arrival
P08.19
Set length
0–65535m
0
P08.20
Actual length
0–65535m
0
P08.21
Pulse per rotation
1–10000
1
P08.22
Alxe perimeter
0.01–100.00cm
10.00
P08.23
Length ratio
0.001–10.000
1.000
P08.24
Length correcting
coefficient
0.001–1.000
1.000
P17.17
Length
0–65535
0
P17.22
HDI input frequency
Display HDI input frequency
Range: 0.00–50.00kHz
0.00kHz
7.19 Fault procedure
Goodrive300 series VFDs provide sufficient fault procedure information for the convenience of user’s
application.
