INVT Goodrive300 Series User Manual

Goodrive300 Series VFD Dimension drawings
253

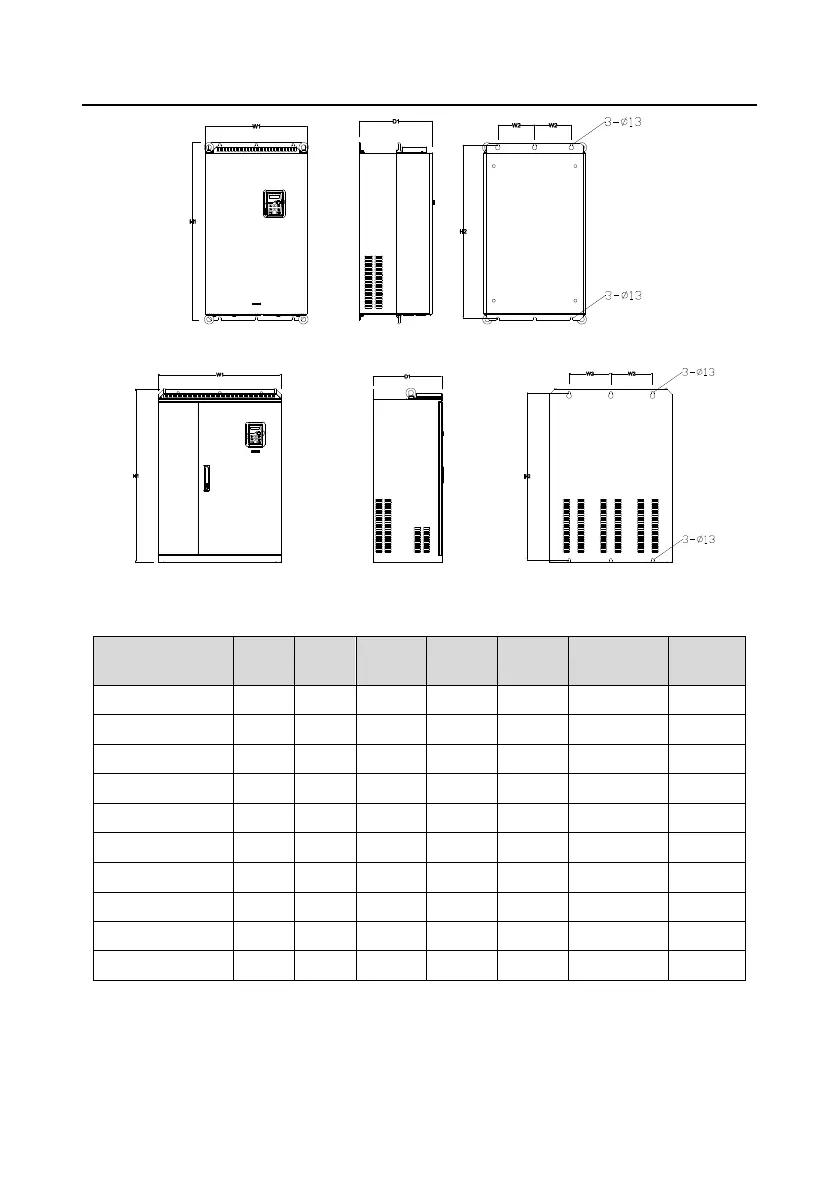

Wall installation of 380V 132-200kW VFDs
Wall installation of 380V 220-315kW VFDs
Installation dimension (unit: mm)
Model
W1
W2
H1
H2
D1
Installation
hole
Weight
(kg)
1.5kW–2.2kW
126
115
193
175
174.5
5
2
4kW–5.5kW
146
131
263
243.5
181
6
3.5
7.5kW–11kW
170
151
331.5
303.5
216
6
6
15kW–18.5kW
230
210
342
311
216
6
7.8
22kW–30kW
255
237
407
384
245
7
9.5
37kW–55kW
270
130
555
540
325
7
30
75kW–110kW
325
200
680
661
365
9.5
47
132kW–200kW
500
180
870
850
360
11
85
220kW–280kW
680
230
960
926
380
13
135
315kW
680
230
960
926
380
13
137
