Goodrive300 Series VFD Dimension drawings
259

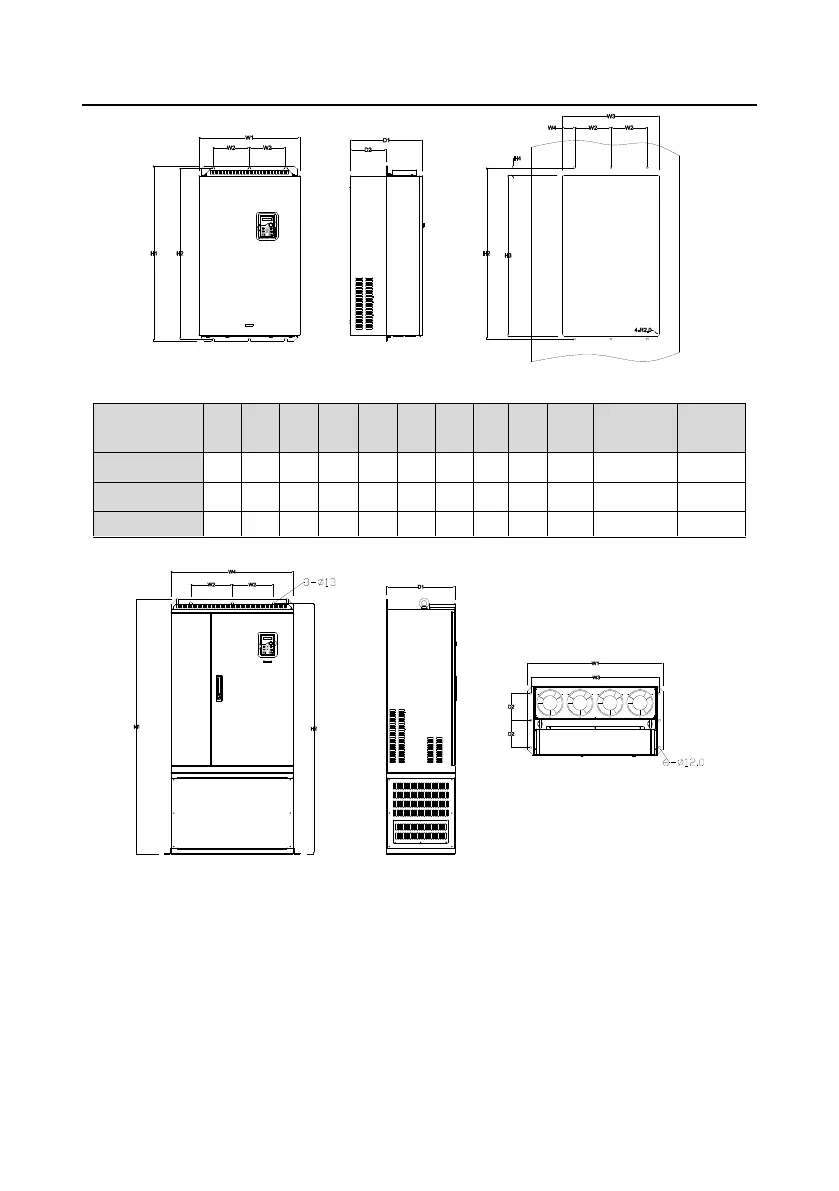

Flange installation of 660V 160-220kW VFDs
Model
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
Weight
(kg)
22kW–45kW
270
130
261
65.5
555
540
516
17
325
167
7
30
55kW–132kW
325
200
317
58.5
680
661
626
23
363
182
9.5
47
160kW–220kW
500
180
480
60
870
850
796
37
358
178.5
11
85
C.6.3 Floor installtion
Floor installation of 660V 250-350kW VFDs
