INVT Goodrive300 Series User Manual

Goodrive300 Series VFD Keypad operation procedure
35

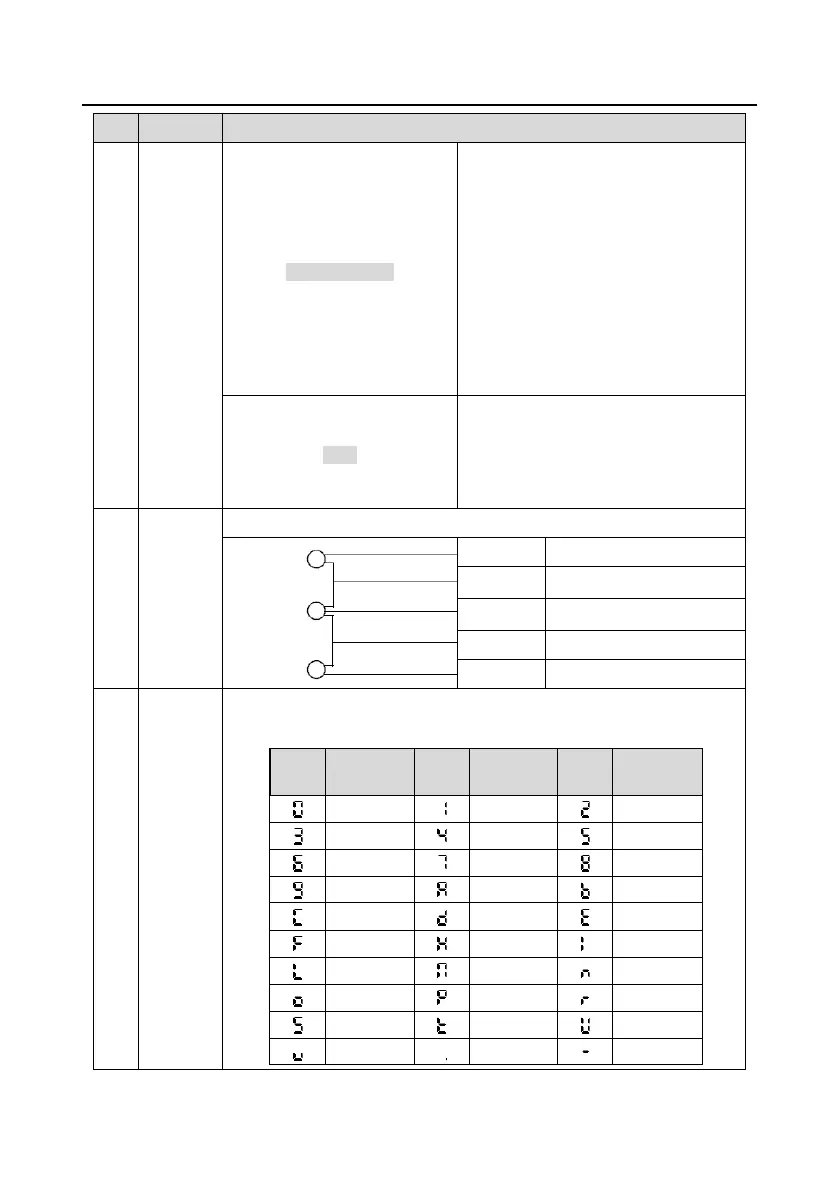

No.
Name
Description
LOCAL/REMOT
LED for keypad operation, terminals
operation and remote communication
control
LED off means that the VFD is in the
keypad operation state; LED blinking
means the VFD is in the terminals
operation state; LED on means the VFD
is in the remote communication control
state.
TRIP
LED for faults
LED on when the VFD is in the fault state;
LED off in normal state; LED blinking
means the VFD is in the pre-alarm state.
2
Unit LED
Mean the unit displayed currently
Hz
Frequency unit
A
Current unit
V
Voltage unit
RPM
Rotating speed unit
%
Percentage
3
Code
displaying
zone
5-figure LED display displays various monitoring data and alarm code such
as set frequency and output frequency.
0
3
6
9
C
F
L
O
S
v
1
4
7
A
d
H
N
P
t
.
2
5
8
b
E
l
n
r
U
-
Displayed
character
Displayed
character
Displayed
character
Corresponding
character
Corresponding
character
Corresponding
character
