Inxpect SBV System Series User Manual

44
SBV System Series| Instruction manual v1.2 DEC 2021 |SAF-UM-SBVBus-en-v1.2|© 2021 Inxpect SpA
5. Sensor position

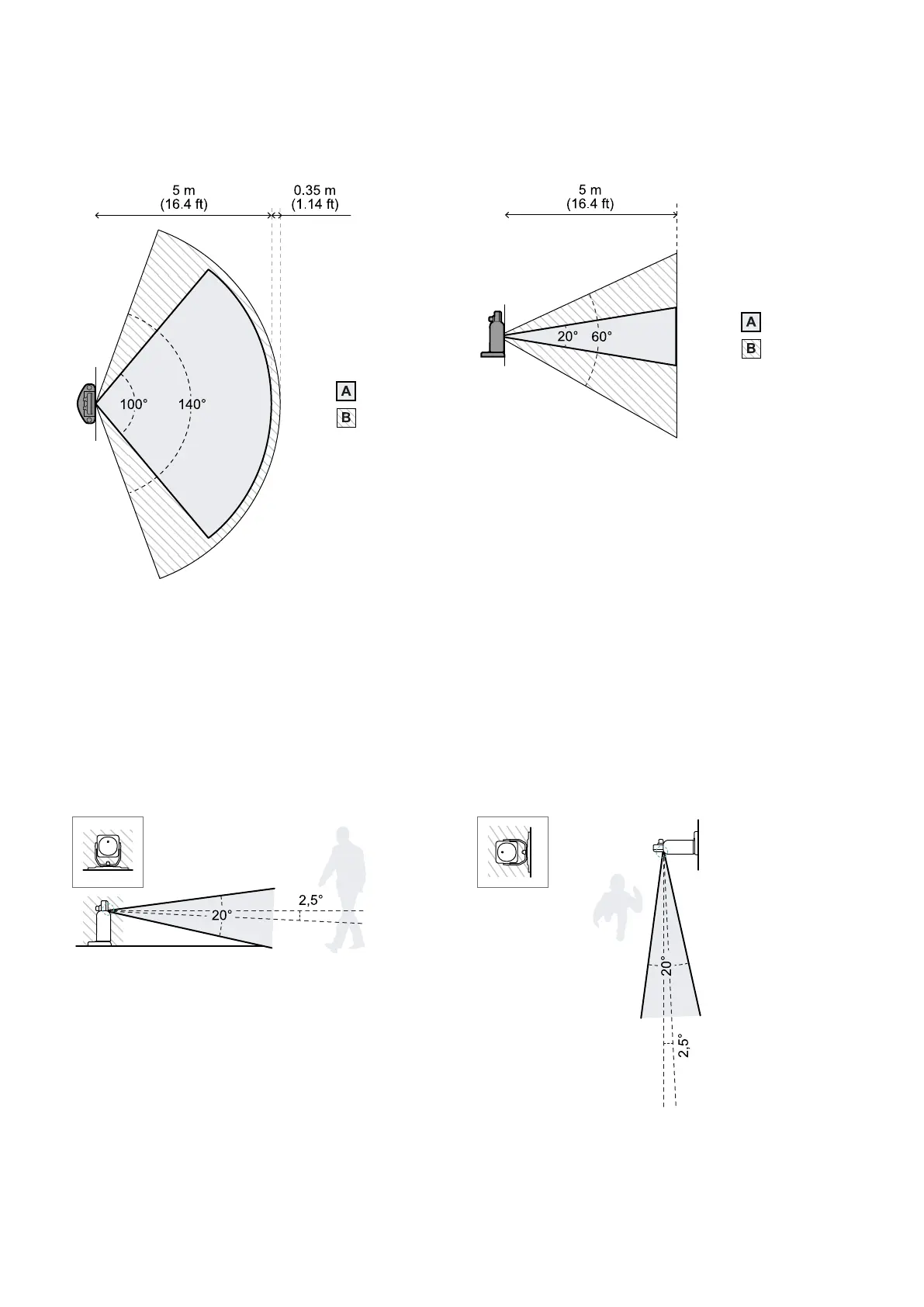

Dimensions for the restart prevention function
Note: the tolerance area dimensions described are related to the detection of humans.
The tolerance area is 40° greater than the angular coverage set.
Top view
Side view
5.2.3 Position of the field of view
The field of view is shifted of 2.5°. To understand the actual position of the sensor field of view consider the LED
position:
l downward with sensor LED up
l right with sensor LED on the left (with respect to the sensor center, facing the sensor)
l left with sensor LED on the right (with respect to the sensor center, facing the sensor)
Side view with sensor inclination 0°.
Top view with sensor inclination 0°.
