3. Get to know SBV System Series
3.2 SBV System Series control units
3.2.1 Control units supported
The SBV System Series supportsthree different control units. The main difference among them are the
connection ports and therefore the communication interfaces available:
l ISC-B01: two Ethernet ports for Fieldbus, an Ethernet port for system configuration and Modbus
communication and a micro-USB port
l ISC-02: an Ethernet port for system configuration and Modbus and a micro-USB port
l ISC-03: a micro-USB port
Safe
Unsafe

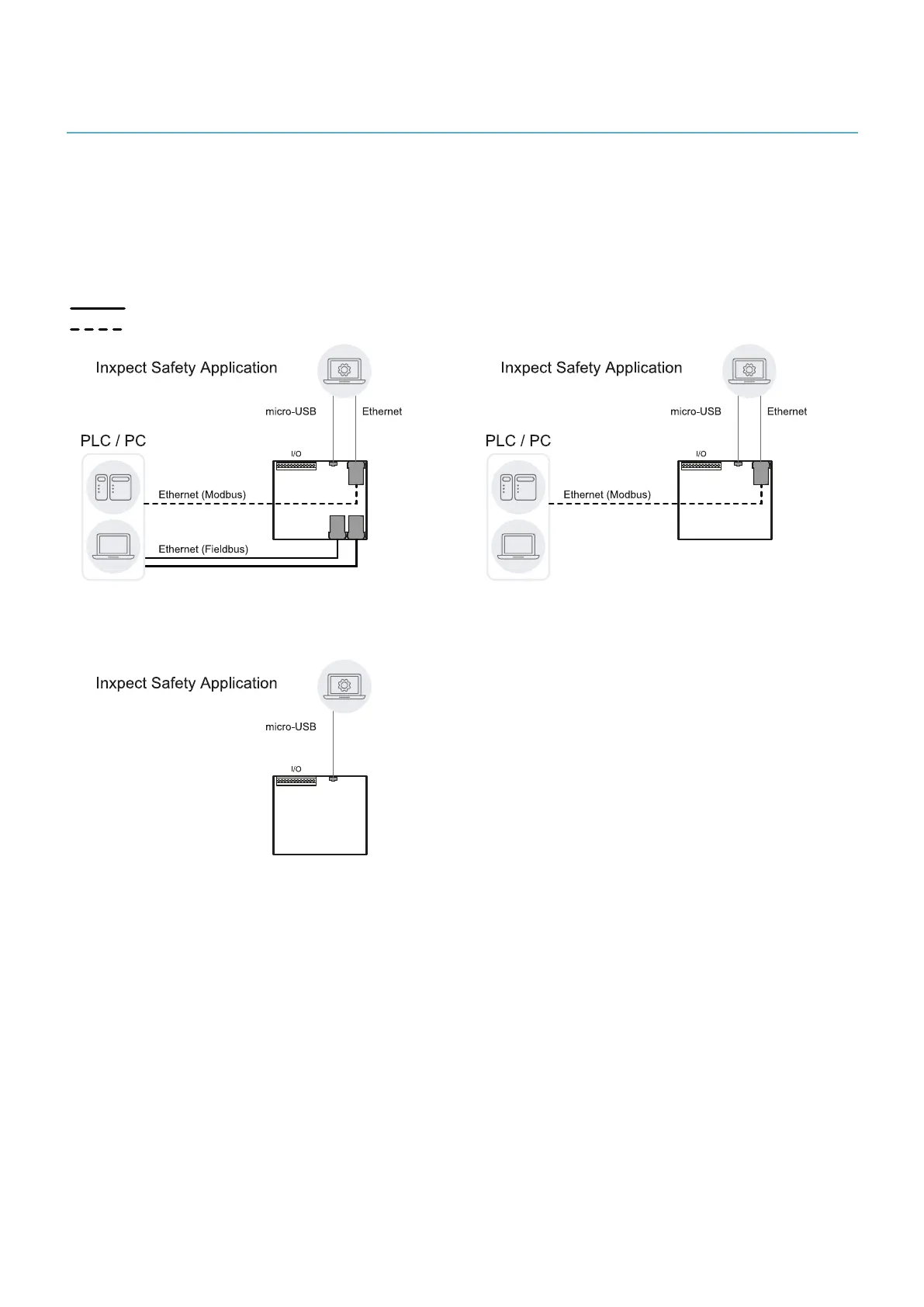

ISC-B01 communication architecture.
ISC-02 communication architecture.
ISC-03 communication architecture.
3.2.2 Functions
The control unit performs the following functions:
l Collects information from all the sensors via CAN bus.
l Compares the position of detected motion with the set values.
l Deactivates the dedicated safety output when at least one sensor detects motion in the detection field.
l Deactivates all the safety outputs if a failure is detected in one of the sensors or the control unit.
l Manages the inputs and outputs.
l Communicates with the Inxpect Safety application for all configuration and diagnostic functions.
l Allows dynamically switching between different configurations.
l Communicates with a safety PLC through the safe Fieldbus connection (if available)
l Communicates and exchanges data through Modbus protocol (if available)
