IOGear GCS1808 - 2-Level Installation (Cascading)

1234 5 678
11121314 15 161718
PS/2-USB
CPU
CONSOLE
VGAUSB PS/2
4
5
18
19
2-Level Installation (Cascading)

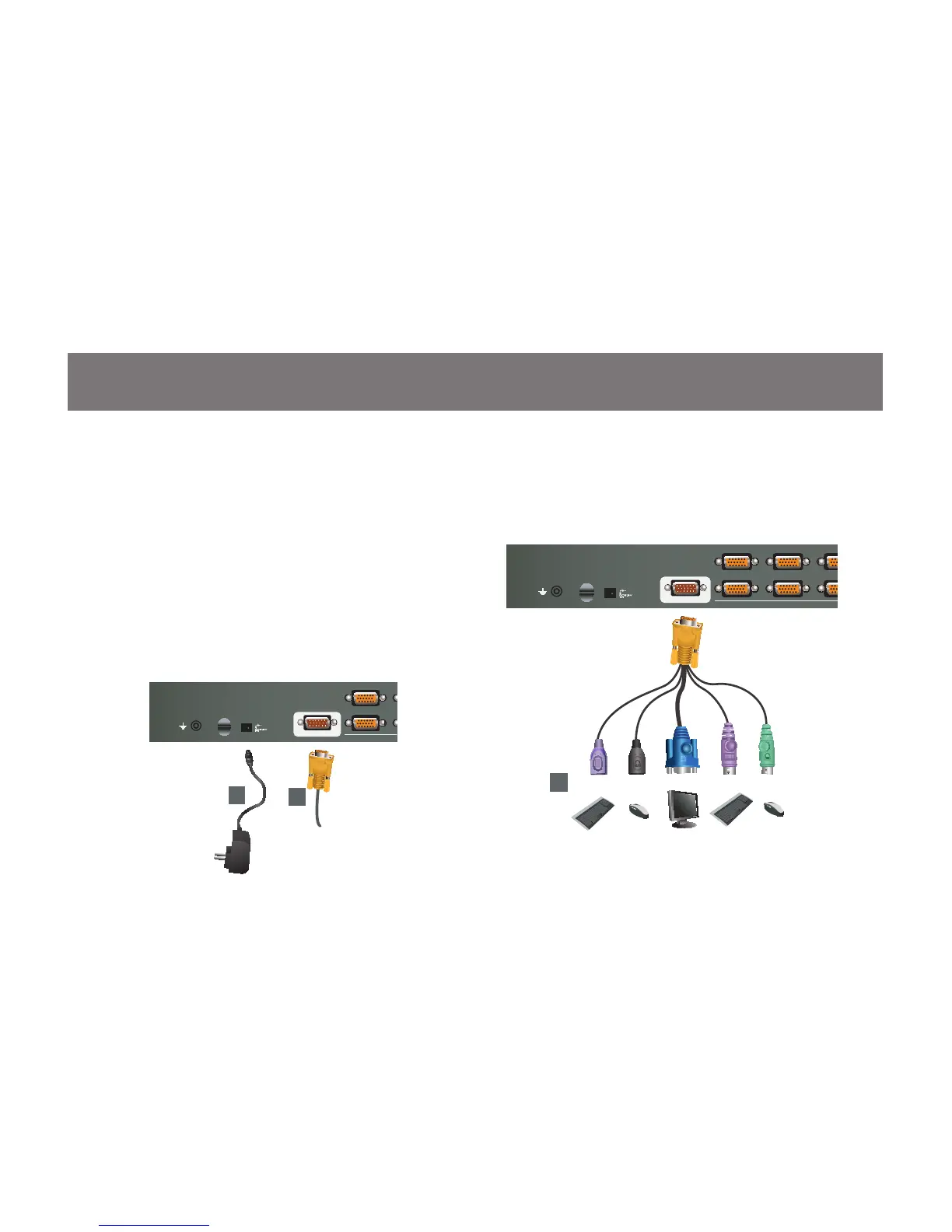

Step 1
Please make sure your computers and monitor are
powered off before you start.
Step 2
Connect the power adapters to the power outlet
and the DC jack of the KVMs.
Step 3
Connect the Console cable to the Console port of
the 1st level KVM.
Step 4
Connect your VGA monitor and USB or PS/2
keyboard and mouse to the console Cable
1234 5 678
11121314 15 161718
PS/2-USB
CPU
CONSOLE
2
3
