Ioline FlexJet E Quick Start Guide
Step 2: Assemble the Left Leg

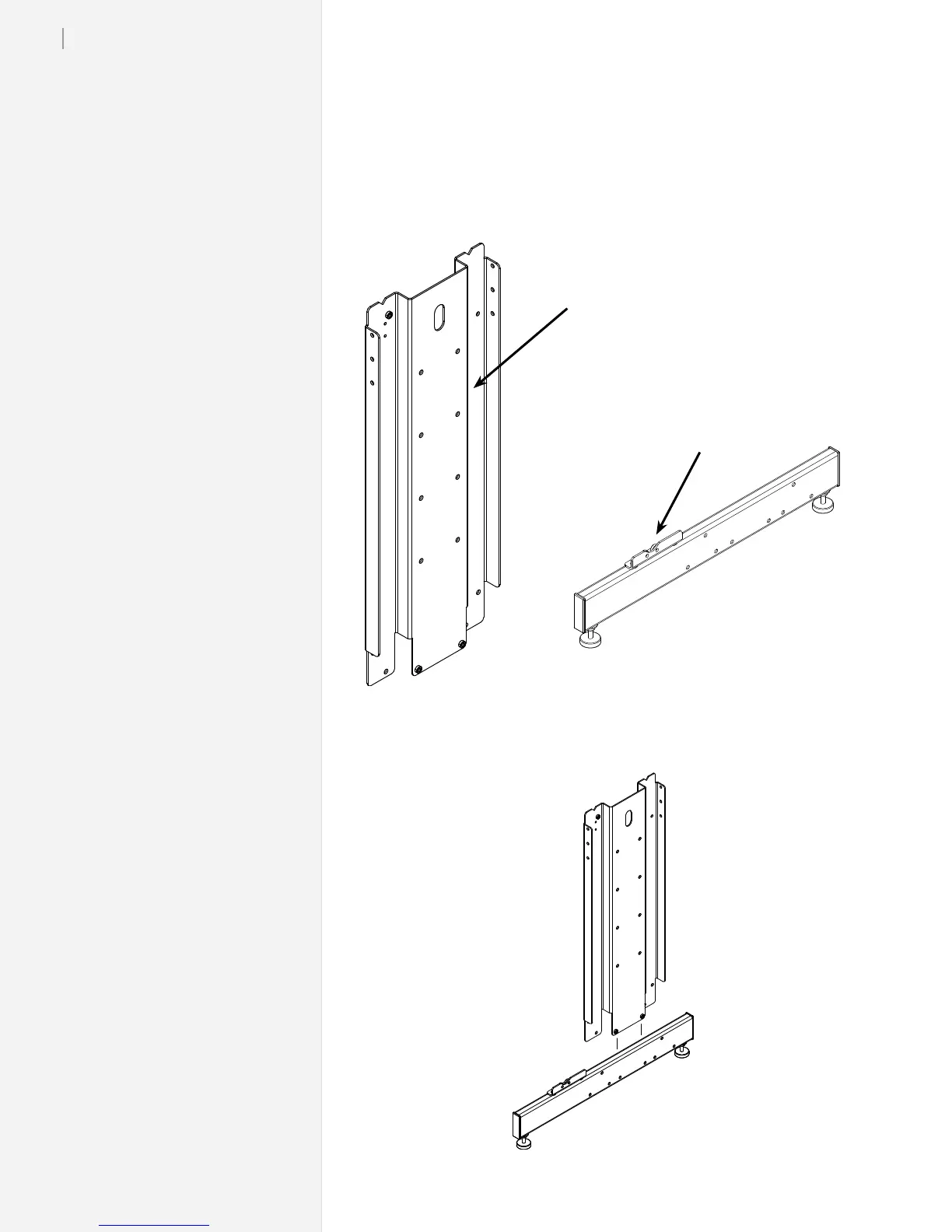

1. Find the left leg assembly. A piece of plastic tape is attached to
the inside of one channel. It is also labeled, “LEFT LEG ASSEM-
BLY, FJe PRINTER”
2. Find the left foot. It has a metal bracket with two bearings
bolted to it.
3. Insert the left foot into the left leg between the flanges on the
bottom of the leg so that the metal bracket is on the side oppo-
site the channel with the plastic tape in it.
Metal Bracket with Bearings
on Left Foot
Left Leg with
Plastic Tape in Channel
To Next Page
