4. Align the holes in the foot with those in the leg. 6 of the holes
should align when correctly positioned.
5. Insert two 1.5-inch long 1/4-20 screws through the foot and
into the threaded nuts in the stand leg. Turn them loosely by
hand only.
6. Insert four 1.5-inch long 1/4-20 screws through the holes in
the stand leg and all the way through the foot. Turn four nuts
loosely by hand onto the end of the screws.
7. Tighten all six screws with the included T-handle Allen wrench
and a 7/16-inch open ended wrench on the four nuts.

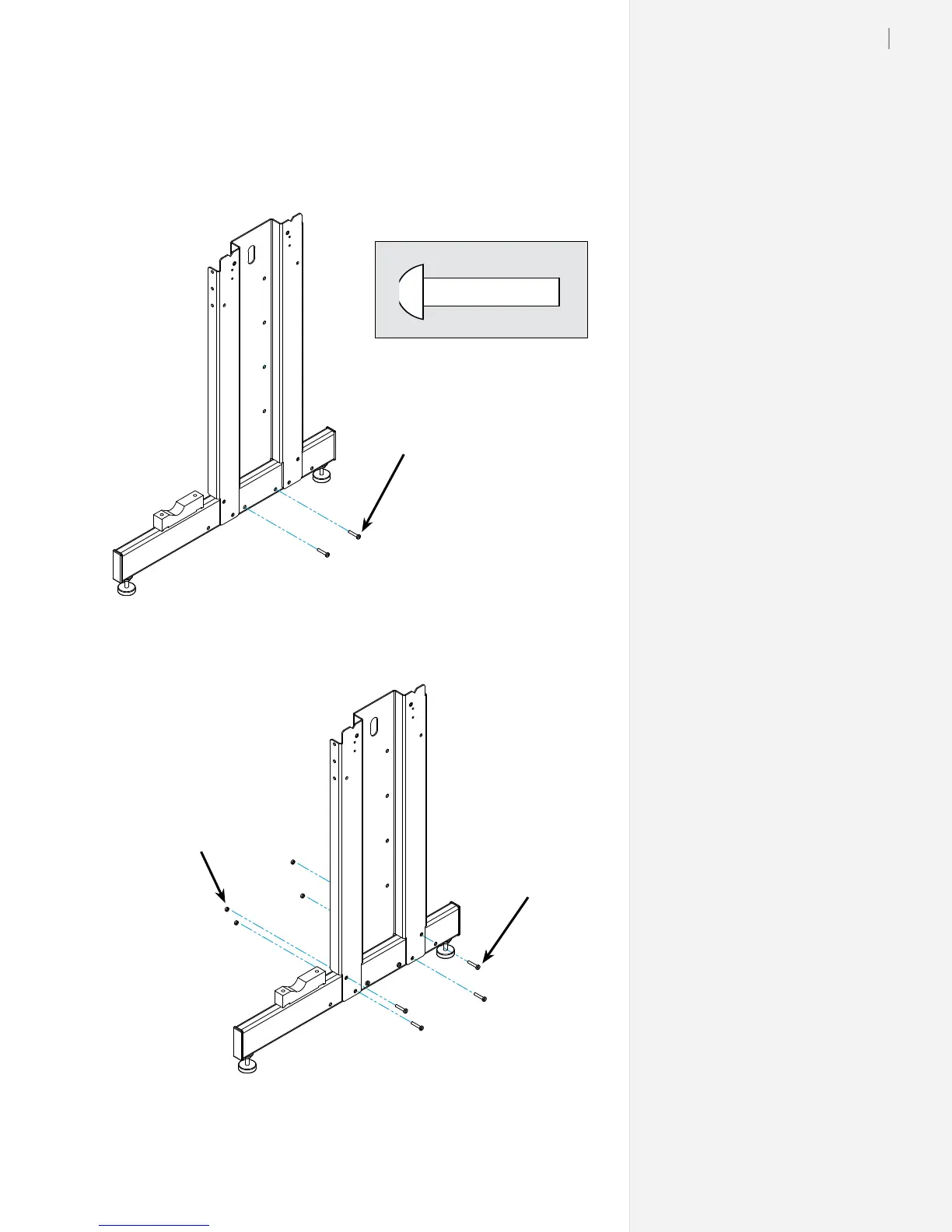

1/4-20 Nut (4)
1.5-in Screw (2)
1.5-in Screw (4)
1.5-inch screw—at actual size.
