Ioline FlexJet E Quick Start Guide
Step 1: Assemble the Right Leg
1. Find the right leg assembly. It has small sensors attached to it
inside one of the channels. The leg is also labeled, “RIGHT LEG
ASSEMBLY, FJe PRINTER”
2. Find the right foot. It has a plastic block on it.
3. Insert the right foot into the right leg between the flanges on
the bottom of the leg so that the plastic block and the small sen-
sors are both on the same side of the assembly.

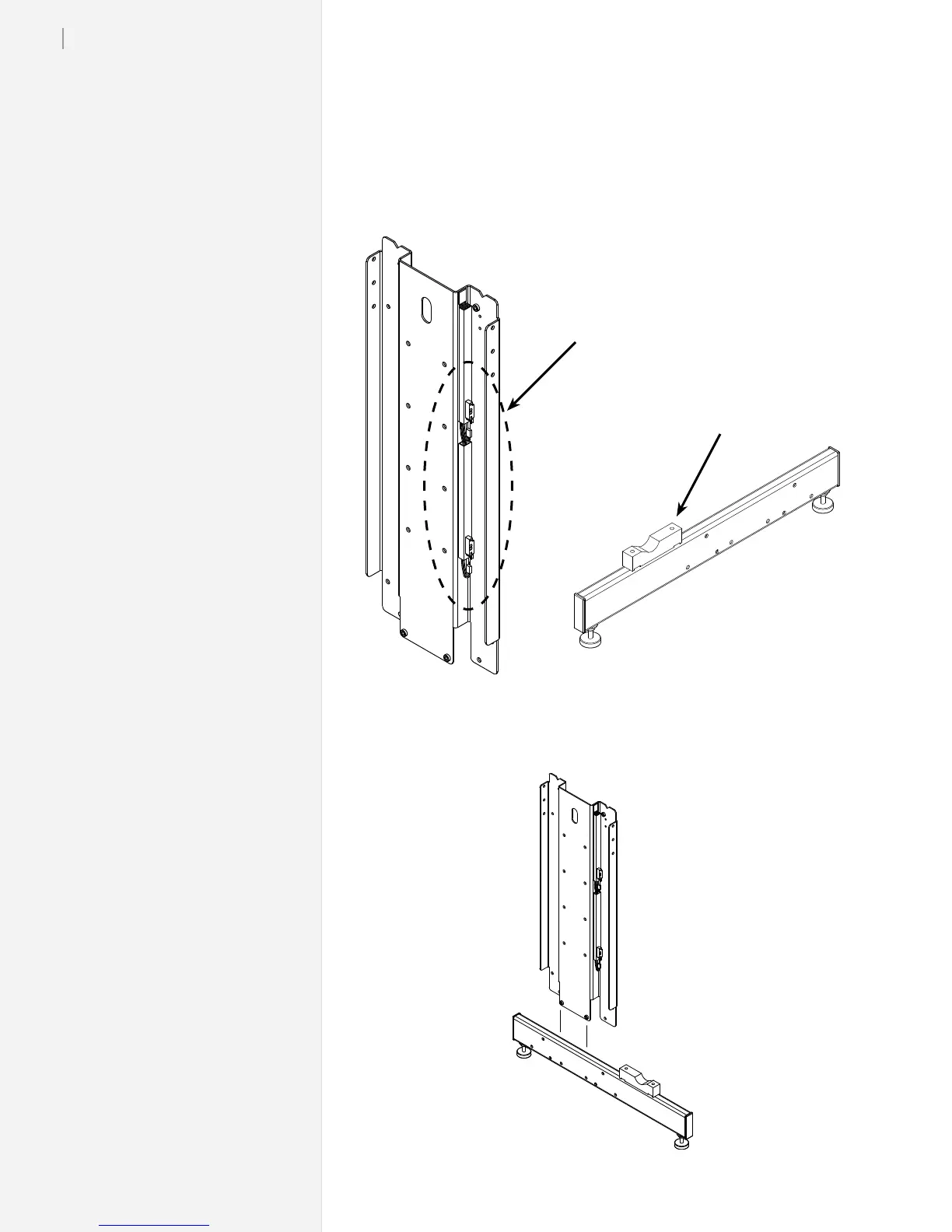

Sensors on
Right Leg
Plastic Block
on Right Foot
