Keypad Controls
The keypad provides access to the main functions of the printer.

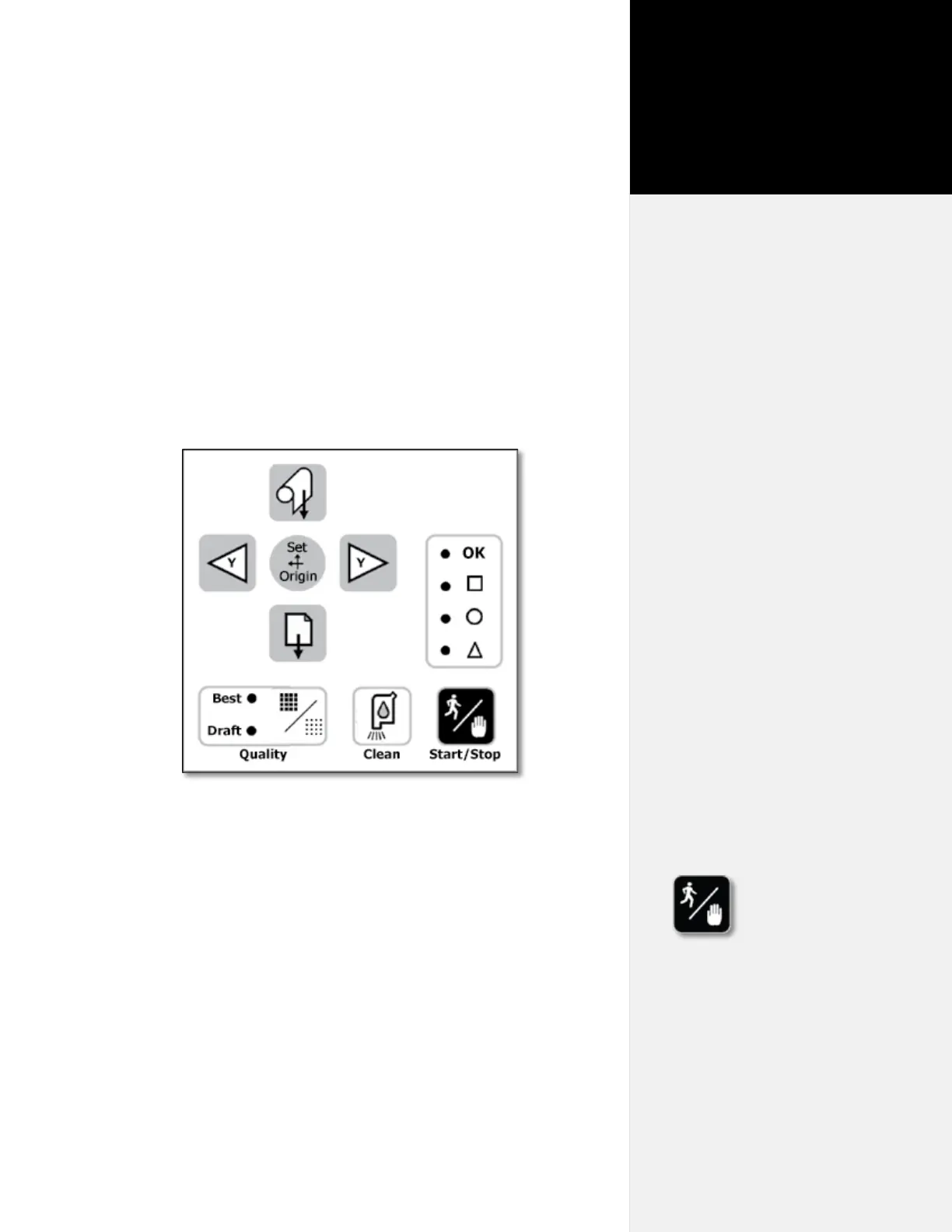

Figure 13. The Printer Keypad.
Start/Stop
The Start/Stop key toggles the printer online and ofine. If the Start/
Stop key is pressed during printing, the OK light turns red and
the machine will stop after it nishes printing the current scan. The
Arrow, Unroll and Paper Advance keys are active when in STOP
mode. When the Start/Stop key is pressed again, the printer enters
START mode, the OK light turns green and printing resumes ex-
actly where it stopped.
START mode OK = green Arrow keys inoperable,
printer online (ready to re-
ceive instructions).
STOP mode OK = red Arrow keys operable,
printer ofine (not ready to
receive instructions).
Chapter 3
Operation
