Chapter 3: Operation
X-axis (paper direction) frame size is 46-in (116.8-cm), maximum is
21600-in (54,864-cm). Default and maximum Y-axis (carriage direc-
tion) frame size is 72-in (182.9-cm).
Quality Setting
Choose Draft or Best to control line density. Draft mode uses 300 DPI.
Best mode uses 600 DPI. A lower DPI setting uses less ink by creating
a fainter line. Higher DPI uses more ink but makes a darker line. Use
this setting in conjunction with the Line Width (see above) to nd a bal-
ance between saving ink and making clearly visible lines.
Measurement Units
Choose between English or Metric units for settings display.
Consumables
Paper
Ioline recommends 27 to 35 pound recycled or bond paper, 36- to 74-in
(91- to 188-cm) wide. The feed system supports rolls up to 600 yds long.
Ink
The Ioline FlexJet E and StudioJet printers require Hewlett-Packard
51645A or ‘45’ cartridges.
Guidelines for Installing a Cartridge
*
1. With the printer in STOP mode (red OK light), press the left
arrow key to move the carriage out onto the platen away from
the right end plate.
2. Open the blue stall latch and remove the old cartridge if one is
present. Squeeze the handle between your ngers and pull for-
ward, then up.

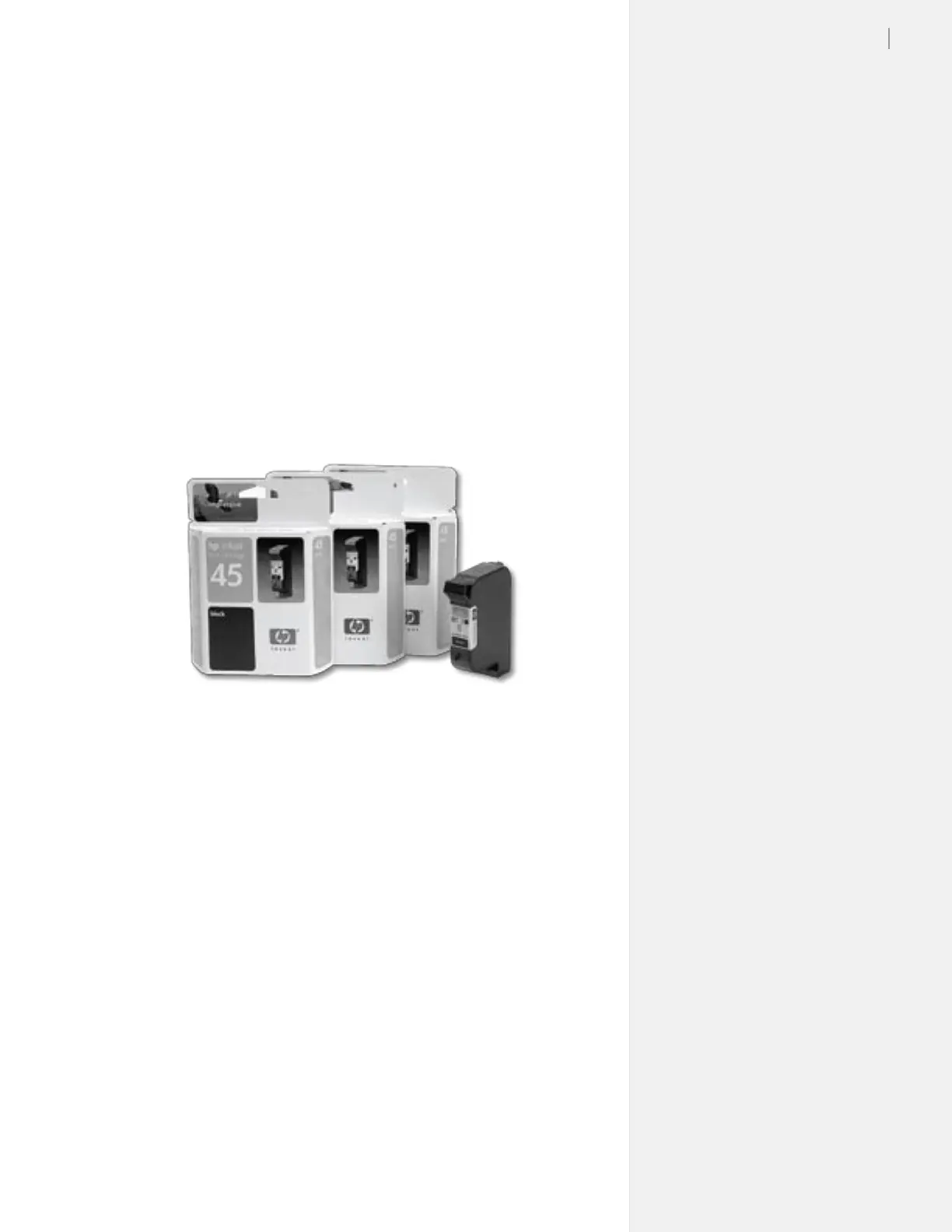

Figure 16. The Hewlett-Packard 51645A (‘45’ cartridges)
are widely available.
