Chapter 3: Operation
3. Make sure that the paper roll is tight on the feed shaft.
4. Move the pinchwheels into their proper positions over a tread and
under the white markers on the traverse rail. (See Figure 22.) Do
not place pinchwheels over drive shaft bearings.)
5. Lower the pinchwheels.
Insert Front Dancer Bar
(FlexJet E only)
1. With the pinchwheels lowered, hold the paper in place over the
rear top bar.
2. Insert the front dancer bar into the dancer bar channel.

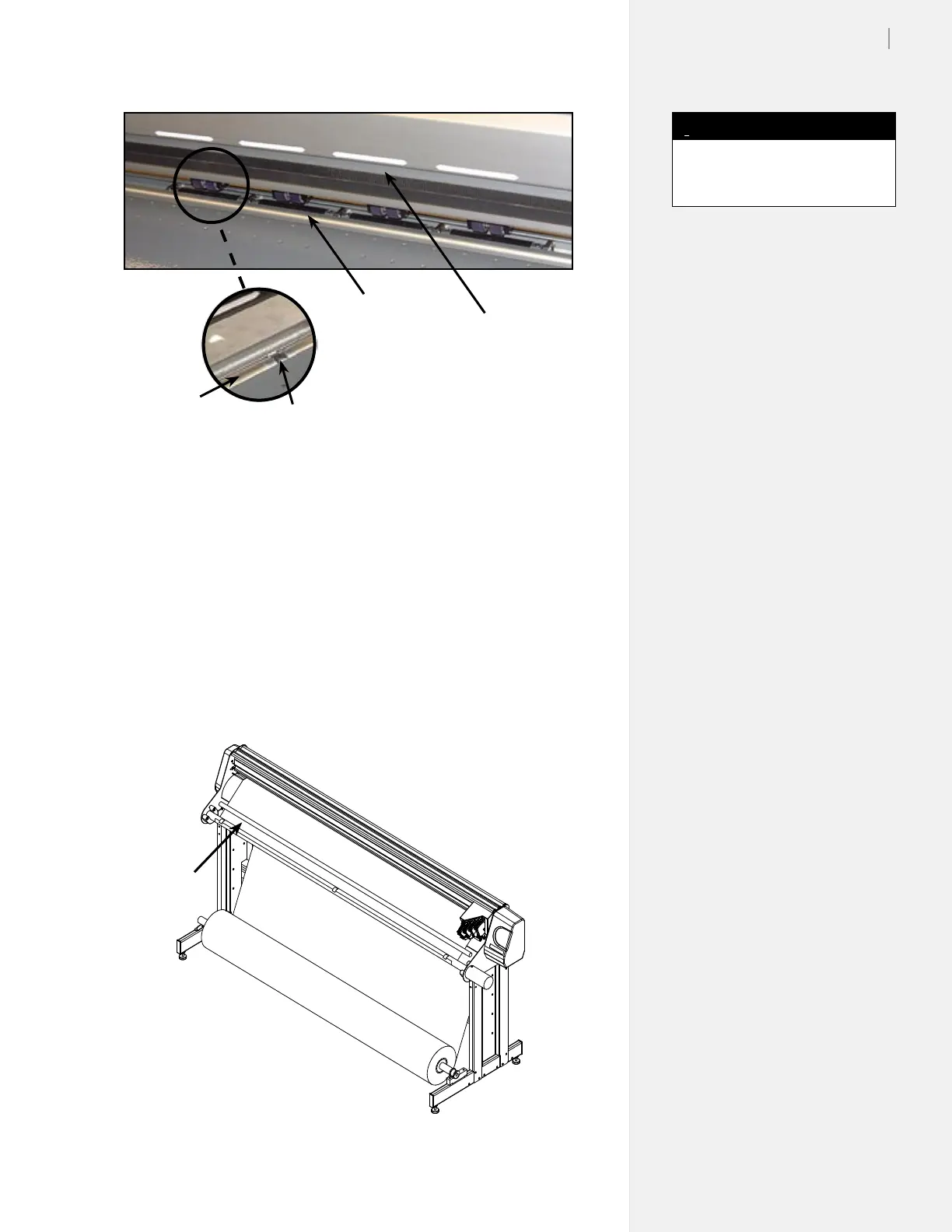

Figure 22. Positioning the pinchwheels.
Figure 24. Inserting the dancer bar.
Ensure that the paper roll is cen-
tered on the feed shaft.
Note
i
Front Dancer
Bar (Silver
light rod)
Pinchwheel
White Driveshaft Markers
Drive Shaft
Bearing
Drive Shaft
Segment
