13

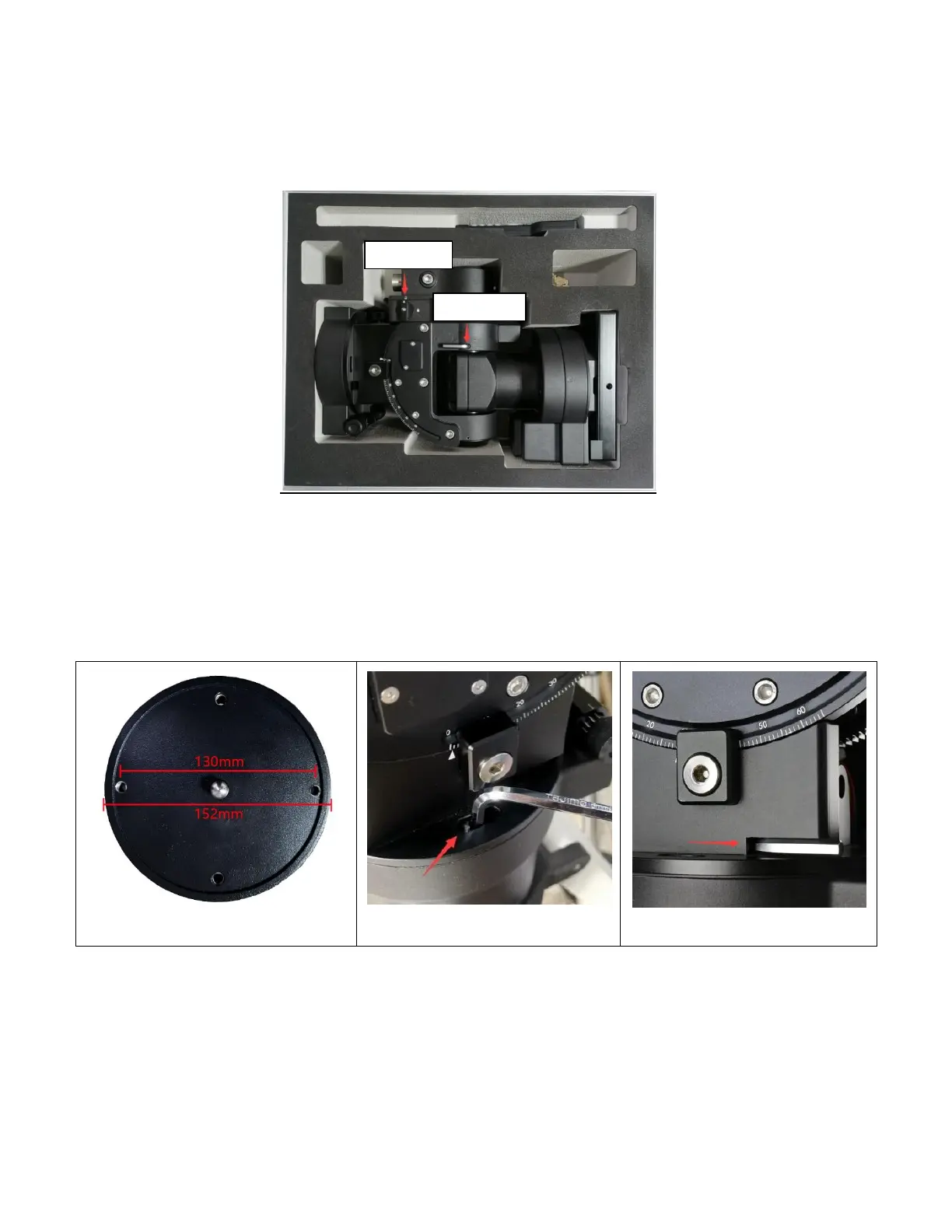

3. CEM70 Mount Assembly
STEP 1. Remove mount head from package
Remove mount head from package: The RA axle is locked by an Allen wrench. Make sure it is
inserted all the way in. Check the R.A. Gear Switch and turn it to unlocking position before removing it
from the box.
Figure 12. Remove the mount
STEP 2. Attach the mount
The mount has a 152mm base, which can be mounted onto an iOptron Tri-pier, LiteRoc
TM
tripod (light payload), or your own tripod/pier with two M8 threaded mounting holes separated 130mm in
diameter.
Figure 13. Tripod top
Figure 14. Locking the mount
Figure 15. Store the wrench
Hold mount head while remove the Allen wrench from the RA yoke. Turn the RA gear switch to
locking position to prevent RA free swing.
Two mounting screws are pre-installed on the base. Rotate the mount to align the screws to the
tripod mounting holes. Insert the wrench into the holes on the base where azimuth locking screws are
located. Tighten the screws.
Store the wrench inside the base. The wrench size is 6mm.
Level the mount by adjusting the tripod legs. Use the build-in Bubble Level Indicator or an
external level for this purpose.
Allen wrench
Gear Switch

Table of Contents

Other manuals for iOptron CEM70

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the iOptron CEM70 and is the answer not in the manual?

iOptron CEM70 Specifications

General IconGeneral
Azimuth Adjustment±10°
Level IndicatorYes
Database212, 000+ objects
Payload Capacity70 lbs (31.8 kg)
Slew Speed6.5°/sec
Counterweight Shaft28mm diameter
Polar ScopeBuilt-in, illuminated
Go2Nova® Hand ControllerYes
GPSBuilt-in
Communication PortsUSB, RS-232, ST-4
Power Supply12V DC
Dovetail SaddleLosmandy/Vixen dual saddle
PECPermanent PEC
GuidingST-4
TripodOptional
Tracking Accuracy≤ ±5 arcsec
