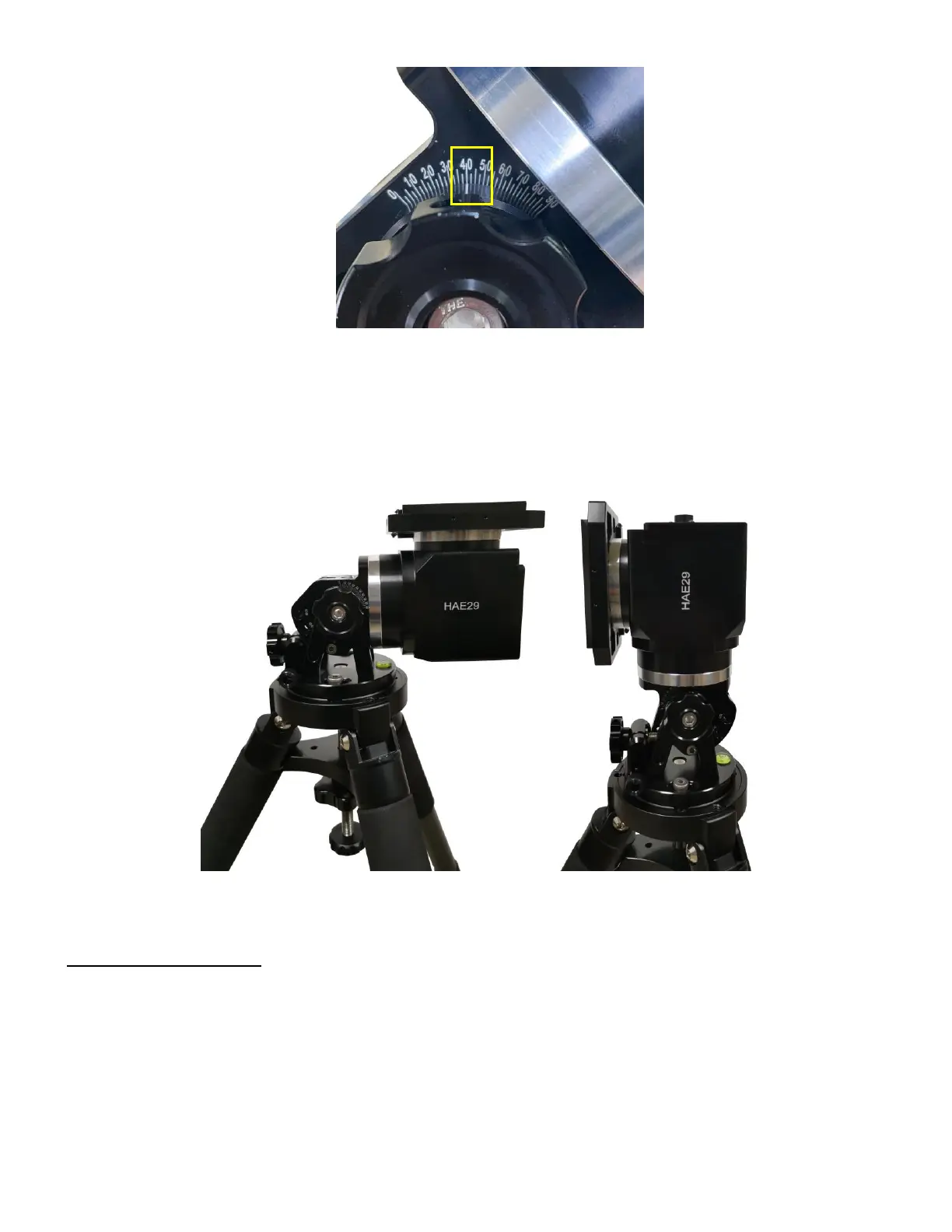

Figure 13. Latitude reading
Tighten the Latitude Locking Knob. There are holes on Latitude Adjustment Knob and Locking Knob
for inserting the Allen wrench for increased adjustment torque, if needed.
To use the mount near equator, set it to 0°~22/31°. To use the mount at AA mode, use the range
67/59°~90°.
Figure 14. An HAE mount set for equator (0°, left) and altazimuth (90°, right) use
Step 4. Install telescope
An HAE mount accepts a Vixen or a Losmandy-D dovetail mounting plate. The default is Vixen-type
one. Release the dovetail Saddle Locking Screws and slide the telescope dovetail plate into the. Make sure
that the arrow sign on the saddle is pointing forward. Tighten the Saddle Locking screws.
To convert dovetail saddle from Vixen-type to Losmandy-type.
(1) Remove two socket screws (in red circles), flip and move the saddle fixed block outward.
(2) Remove locking knobs and flip the sliding blocks (in blue squares).
