3. HAE Mount Assembly
HAE is operated under unbalanced condition and could be tipped over if tripod is not secured.

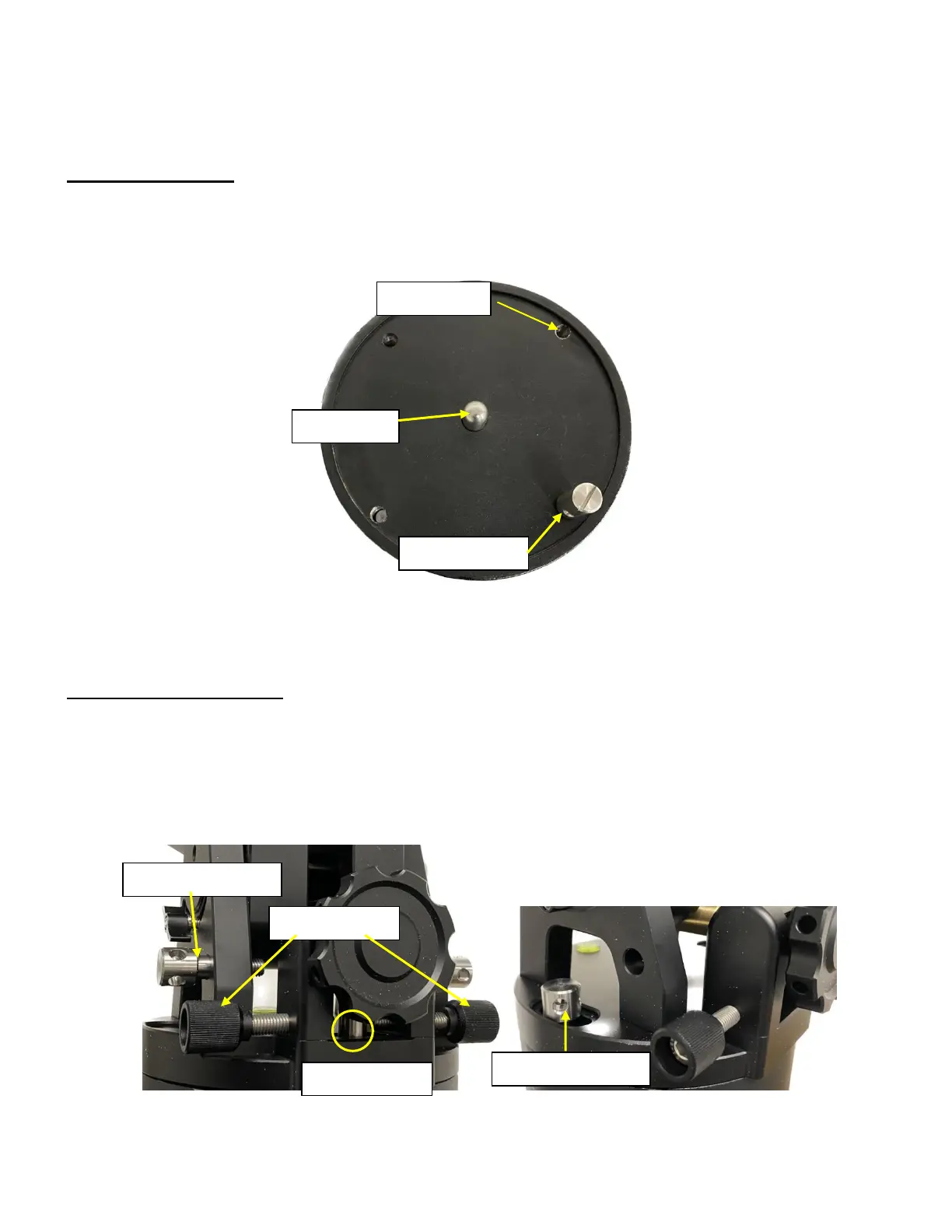

Step 1. Set up tripod
The HAE69 has a 150mm base. An optional LiteRoc tripod #8023ACC or a tri-pier #8034 may be
used. Setup and level the tripod. Adjust the tripod height. Tighten tripod locking knob to secure the tripod.
Thread the Alignment Peg onto the tripod head, on top of a tripod leg or between two legs depending on
the latitude. Use two outside threaded holes to secure the mount head.
Figure 8. LiteRoc tripods
Step 2. Attach mount head
Remove the mount from the package. Retract the 2x Azimuth (Azi) Adjustment Screws from both
sides to leave ample space for the alignment peg to be fitted in between the 2x Azi Adj. Screws. Remove
the 2x Azi Locking Screws from the mount base and insert them into the opening next to Azi Adj. Screw.
Secure the mount head by tightening the Azi Locking Screws into the M8 holes on the tripod. An Allen
wrench is stored in the EQ base if needed.
