6. Tighten the Range Locking Bolt. Now you can adjust the mount between 56°~90°
To use the mount near equator, set it to 0°~34°. To use the mount at AA mode, use the range
58°~90°.

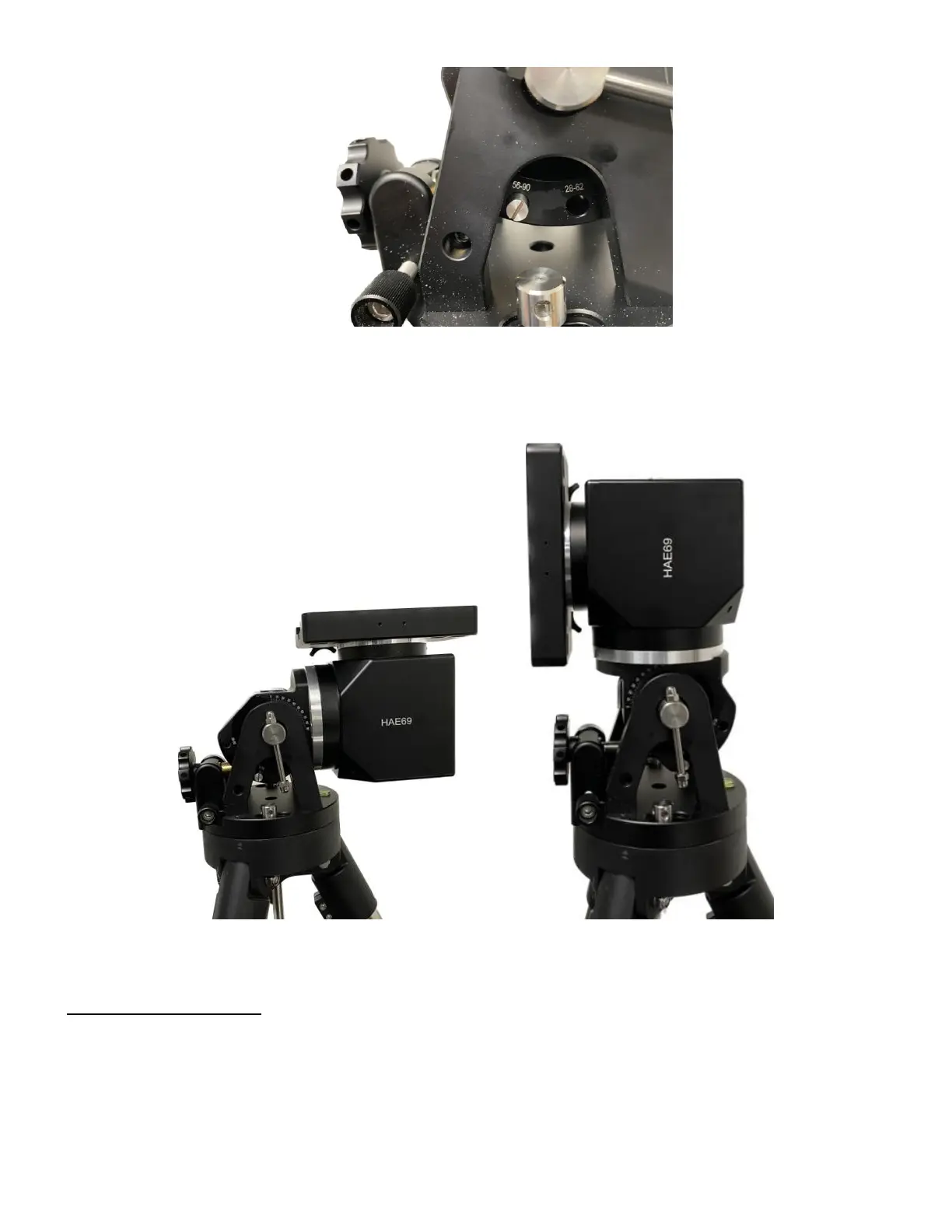

Figure 11. An HAE69 mount set for equator (0°, left) and altazimuth (90°, right)
Step 4. Install telescope
HAE69 is equipped with a Vixen/Losmandy-D dual dovetail saddle. It accepts a Vixen or a
Losmandy-D dovetail mounting bar. Release the dovetail Saddle Locking Screws and slide the telescope
dovetail plate into the. Make sure that the arrow sign on the saddle is pointing forward. Tighten the Saddle
Locking screws. Double check the scope to make sure it is installed securely!
