IOtech 640 - Page 82

Specifications are subject to change without notice.
11.b-8 Specifications, Plotted Data
967692 IOtech 640 and 650 Series

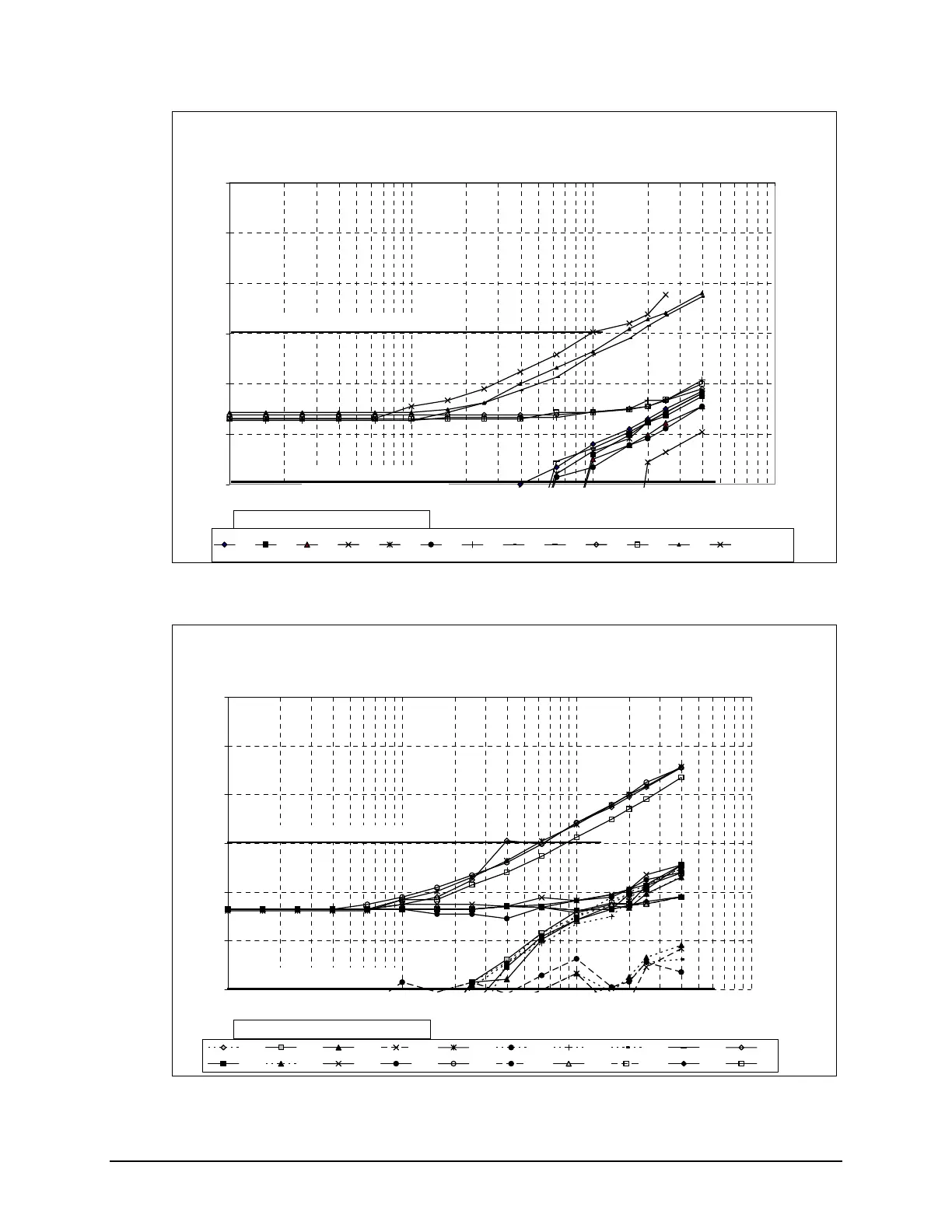

Figure XIII. 640 Channel-to-Channel Crosstalk
640 Channel to Channel Crosstalk
Vin = -0.5dB FS
-130
-120
-110
-100
-90
-80
-70
100 1,000 10,000 100,000
Frequency (Hz)
Crosstalk (dBFS)
1-2 1-3 1-4 2-1 2-3 2-4 3-1 3-2 3-4 4-1 4-2 4-3 A Out to Ch 4
Specification -100dB typical
Measurement noise floor
Legend Format (aggressor - victim)
Figure XIV. 650 Channel-to-Channel Crosstalk
650 Channel to Channel Crosstalk
Vin = -0.5dB FS
-130
-120
-110
-100
-90
-80
-70
100 1,000 10,000 100,000
Frequency (Hz)
Crosstalk (dBFS)
1-2 1-3 1-4 1-5 2-1 2-3 2-4 2-5 3-1 3-2
3-4 3-5 4-1 4-2 4-3 4-5 5-1 5-2 5-3 5-4
Specification -100dB typical
Measurement noise floor
Legend Format (aggressor - victim)
