94

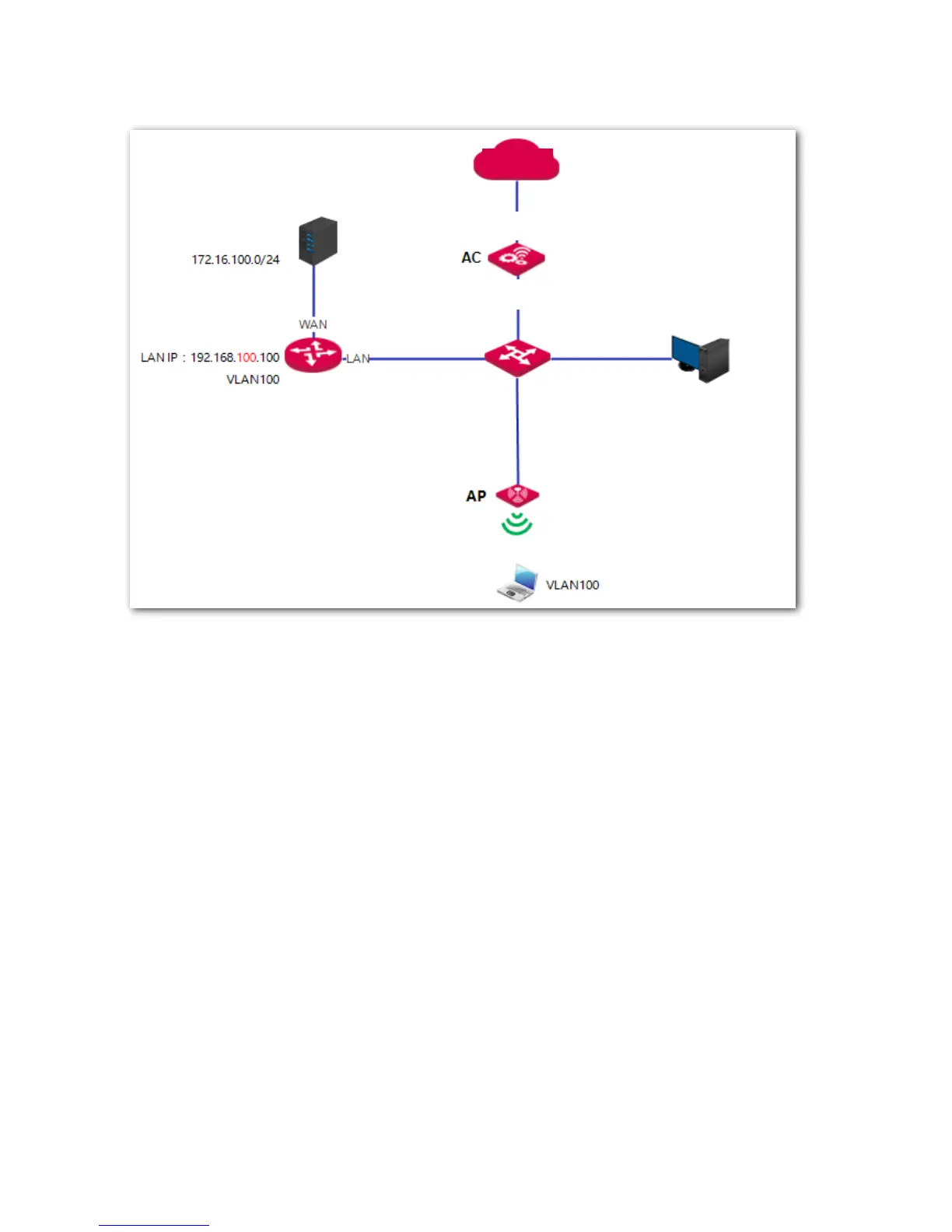

Network Topology
Procedure
I. Manage AP
Step 1: Modify Management VLAN of AP
1. Choose AP Management > Modify AP.
2. Select the APs to be managed and click Advanced Setting.
3. Set the Management VLAN to 5.
4. Click Save.
Internet
Administrator
Internet Server
Router1
Switch
User
eth0: VLAN Interface
eth3: WAN Interface
Management VLAN: 5
SSID: VIP
