IPC 464 - Using the On-board Battery Charger; Starting the Machine; Work Program Selection

EN
A) CONTROL PANEL
B) CHARGER FUSE
USING THE ON-BOARD BATTERY
CHARGER:
When the battery on the machine is
discharged, the red LED on the control panel
comes on and all the machine functions will
automatically stop: the operator must then
turn o󰀨 the machine and start the charging
procedure by connecting the machine battery
charger plug into a power socket (when
recharging, the yellow LED on the control
panel comes on).
Once the battery has been recharged, the
green LED on the control panel will come
on and the operator can resume work, once
having unplugged the machine from the
socket.
NOTE: USING THE MACHINE BEFORE THE
BATTERY HAS FULLY CHARGED (GREEN
LED ON) WILL REDUCE THE LIFE AND
RUNNING TIME OF THE BATTERY.
WARNING: The charger on this
machine is built specically for
recharging GEL batteries
NOTE: If during operation the machine
battery charger plug is connected, the
machine will automatically stop all its
functions.
STARTING THE MACHINE:
WARNING: the machine must be
used only by authorised personal,
DO NOT LEAVE the machine when
switched on, do not use the machine
for collecting liquid, turn the machine
OFF before leaving the machine. KEEP
THE MACHINE OUT OF THE REACH
OF CHILDREN.
To start the machine, proceed as follows:
• press the machine's on/o󰀨 button.
• check that the green LED (battery charge
status indicator) is on.
• select the appropriate work program:
Press the work program button 1 for smooth
surfaces and light debris.
Press the work program button 2 for very dirty
surfaces, asphalt, carpet.

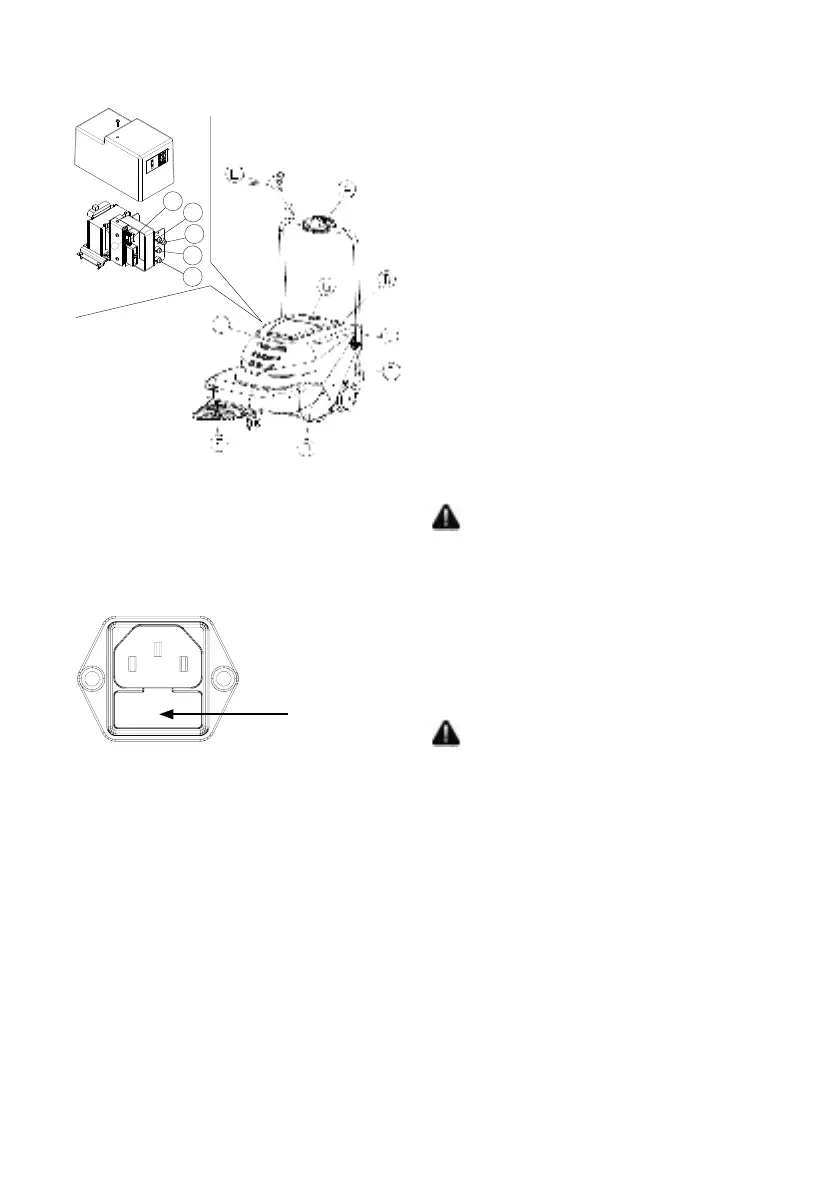

BATTERY CHARGER
FUSE
C) HANDLE RELEASE
D) BUMPER
E) SIDE BRUSH
F) TOP COWLING
G) CHARGER EXTENSION CORD
COMPARTMENT
I) DEBRIS BIN
L) FLAP RAISER (MODELS 664, JET660,
LION600, SR664)
M) ACTUATOR FUSE (F2.5A)
N) CENTRAL BRUSH MOTOR FUSE (T20A).
O) SIDE BRUSH MOTOR FUSE (T6,3A).
P) VACUUM FAN MOTOR FUSE (T5A).
Q) FILTER SHAKER FUSE (F2,5A).
