EN

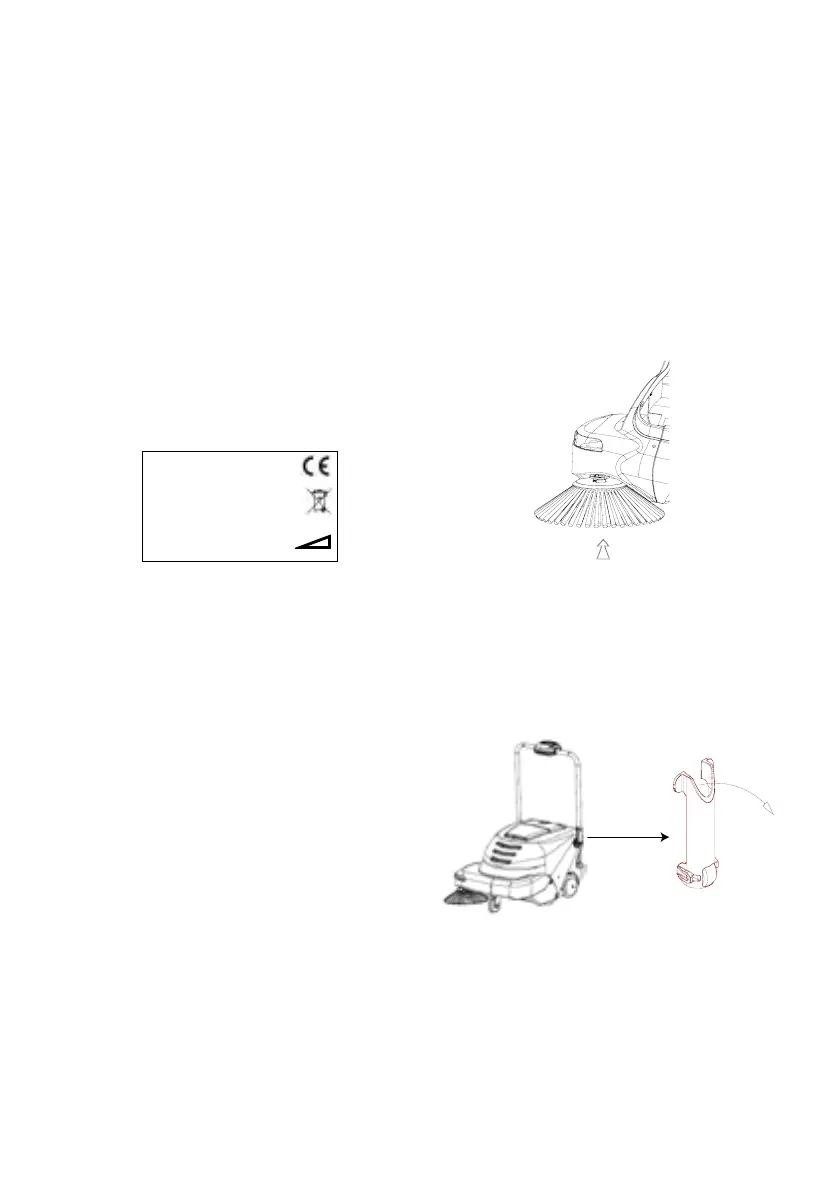

IDENTIFYING THE MACHINE
The nameplate provides the following
information:
• Name of manufacturer.
• Model
• Serial number.
• Year of manufacture.
• Power supply voltage (charging/supply
values).
• Current intensity (charging value).
• Gross weight.
• IP degree of protection.
• Machine voltage (in average working
conditions).
• Machine power (in average operating
conditions)
• Maximum negotiable gradient.
If you notice that any of the above are missing,
contact your retailer immediately.
Make sure the packaging materials (bags,
boxes, pallets, hooks, etc.) are put away, out of
the reach of children.
PREPARING THE MACHINE:
Fitting the side brush:
• raise the front part of the machine and
attach the side brush, as shown in the
gure.
UNPACKING:
Unpack your machine with great care, avoiding
any manoeuvre that could lead to damage.
Once you have unpacked it, make sure all
parts are in a good condition. If you notice
any damage, DO NOT use the machine and
contact your retailer immediately.
Due to packaging and transport requirements,
some parts and optionals may be supplied
separately; for correct assembly, follow
the instructions given in the corresponding
chapters of this booklet.
Contents of the packaging:
• Machine.
• Side brush.
• User and maintenance manual.
• Warranty.
• Gel battery.
• 4 mm hex wrench.
• T20A fuse, functions board.
• Battery charger fuse.
• F2.5A actuator fuse.
• T6,3A side brush motor fuse.
• T5A suction motor fuse.
• F2,5A lter shaker fuse.
• Charger extension cord.
Handle assembly:
• release the handle locks to allow rooms
for the handle to be turned.
• tilt the handle to the desired position.
• lock the handle again.
Connecting the battery:
Undo the xing screws to open the top cowling.
The machine is delivered by the manufacturer
with the battery disconnected from the
electrical system. The operator must connect
the two connectors, as shown in the drawing.
Model :
Vac :
W :
A :
Hz :
Ser.N :
Date :
IP :
Kg :
7
