C
HAPTER
5
| Interface Configuration
Trunk Configuration
– 154 –
WEB INTERFACE
To display LACP port counters:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Aggregation Port from the Step list.
3. Select Show Information from the Action list.
4. Click Counters.
5. Select a group member from the Port list.

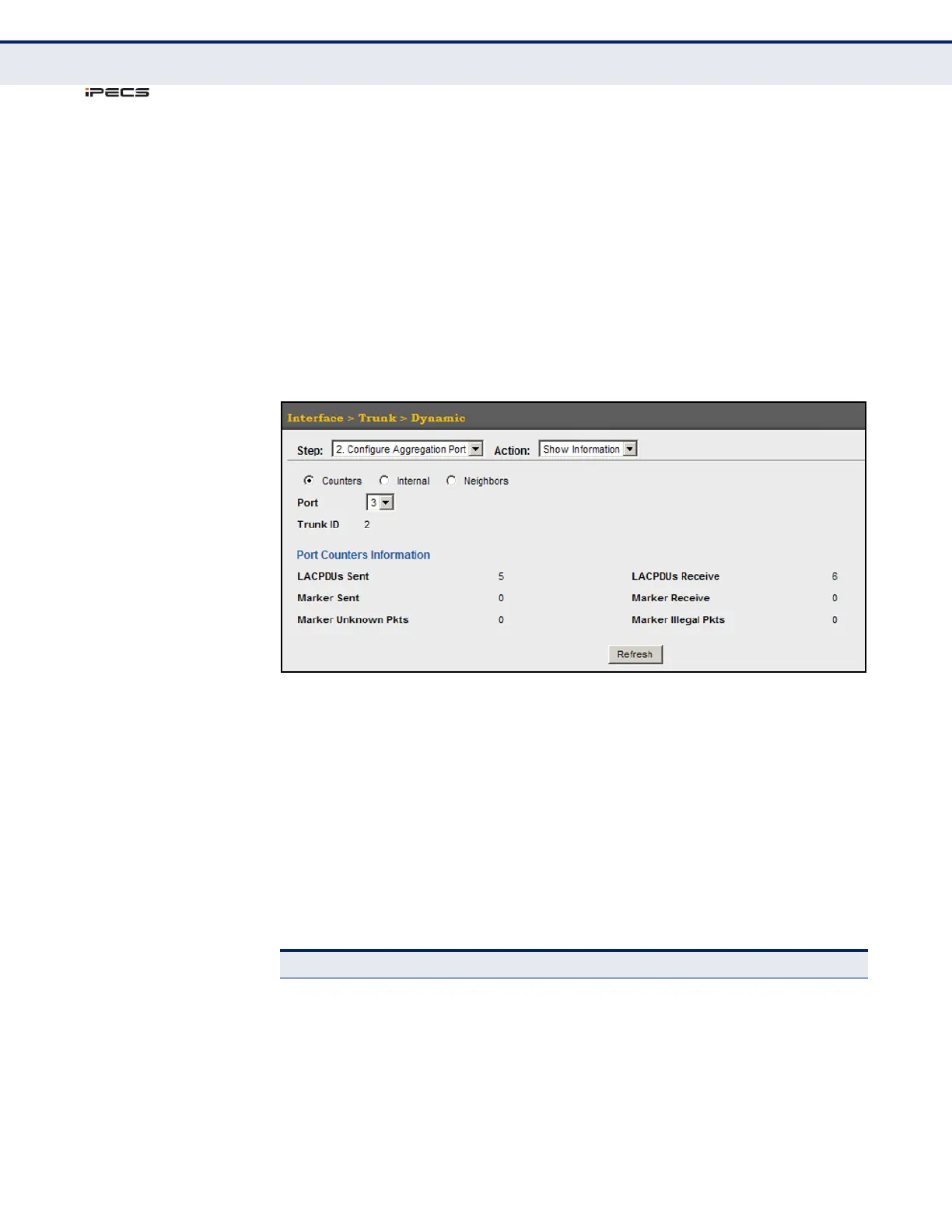

Figure 50: Displaying LACP Port Counters
DISPLAYING LACP
S
ETTINGS AND STATUS
FOR
THE LOCAL SIDE
Use the Interface > Trunk > Dynamic (Configure Aggregation Port - Show
Information - Internal) page to display the configuration settings and
operational state for the local side of a link aggregation.
CLI REFERENCES
◆ "show lacp" on page 773
PARAMETERS
These parameters are displayed in the web interface:
Table 9: LACP Internal Configuration Information
Parameter Description
LACP System Priority LACP system priority assigned to this port channel.
LACP Port Priority LACP port priority assigned to this interface within the channel group.
Admin Key Current administrative value of the key for the aggregation port.
Oper Key Current operational value of the key for the aggregation port.
