| Class of Service
Layer 2 Queue Settings
– 244 –
◆ Weight – Sets a weight for each queue which is used by the WRR
scheduler. (Range: 1-255; Default: Weights 1, 2, 4, 6 are assigned to
queues 0 - 3 respectively)
WEB INTERFACE
To configure the queue mode:
1. Click Traffic, Priority, Queue.
2. Set the queue mode.
3. If the weighted queue mode is selected, the queue weight can be
modified if required.
4. If the queue mode that uses a combination of strict and weighted
queueing is selected, the queues which are serviced first must be
specified by enabling strict mode parameter in the table.
5. Click Apply.

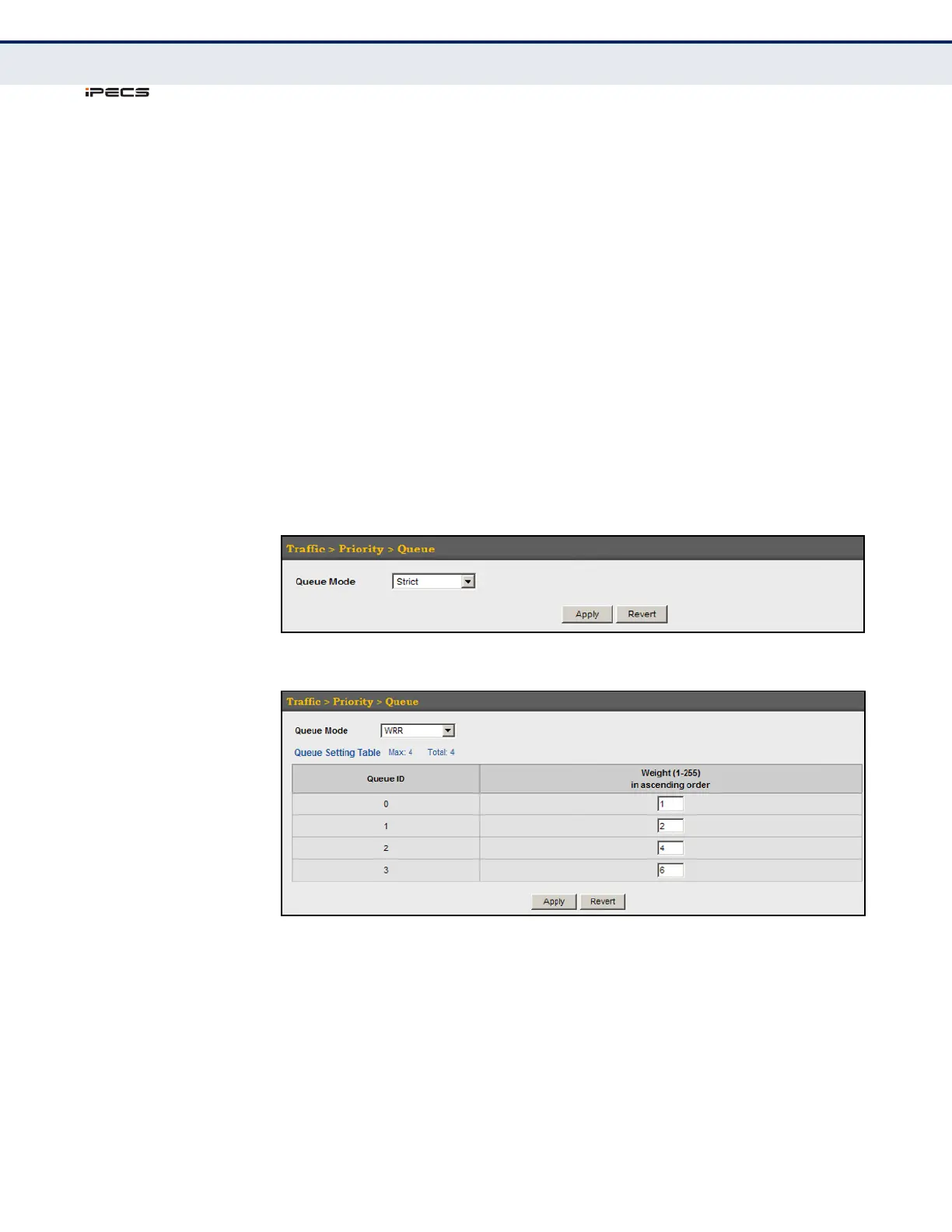

Figure 115: Setting the Queue Mode (Strict)
Figure 116: Setting the Queue Mode (WRR)
