C
HAPTER
10
| Class of Service
Layer 3/4 Priority Settings
– 251 –
WEB INTERFACE
To map DSCP values to internal PHB/drop precedence:
1. Click Traffic, Priority, DSCP to DSCP.
2. Select Add from the Action list.
3. Set the PHB and drop precedence for any DSCP value.
4. Click Apply.

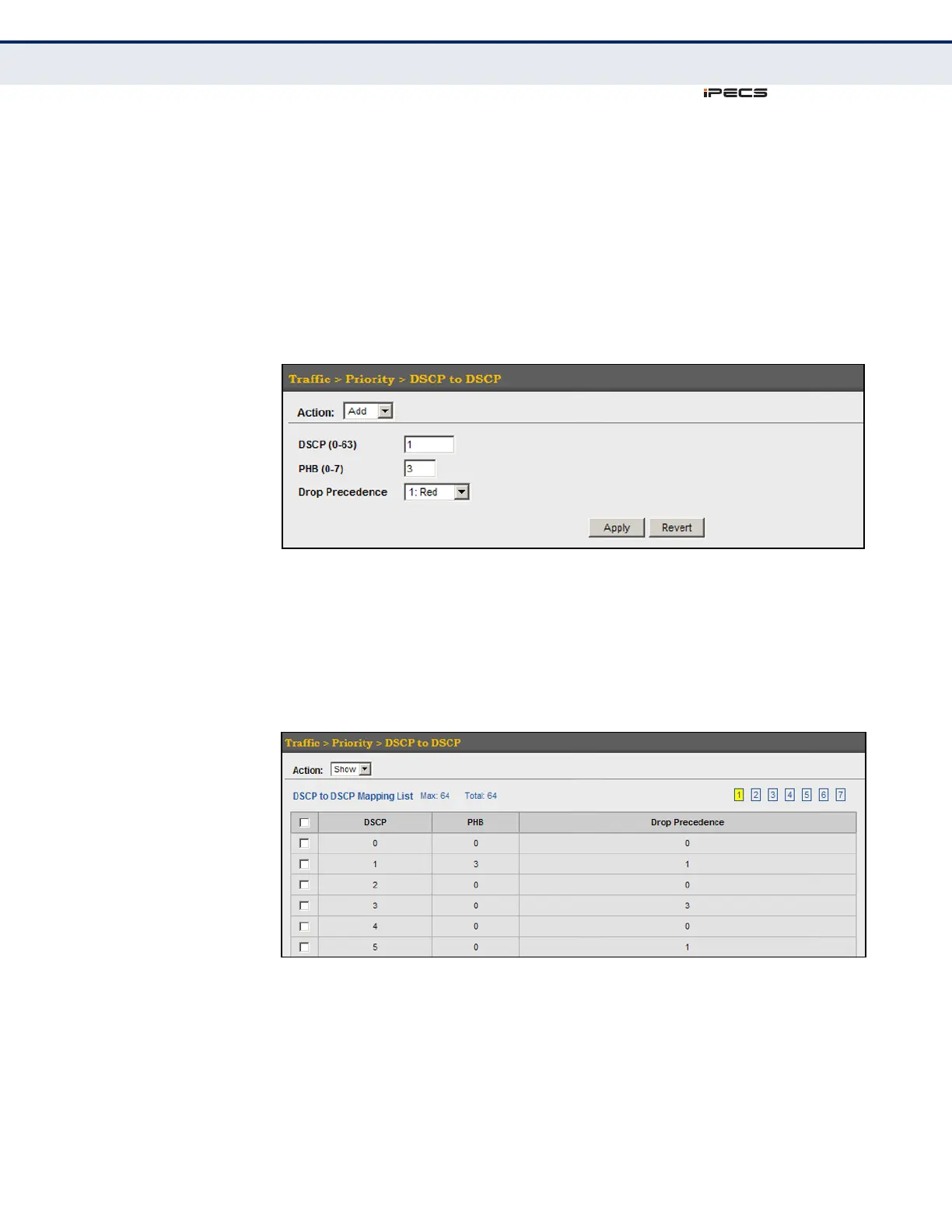

Figure 121: Configuring DSCP to DSCP Internal Mapping
To show the DSCP to internal PHB/drop precedence map:
1. Click Traffic, Priority, DSCP to DSCP.
2. Select Show from the Action list.
Figure 122: Showing DSCP to DSCP Internal Mapping
