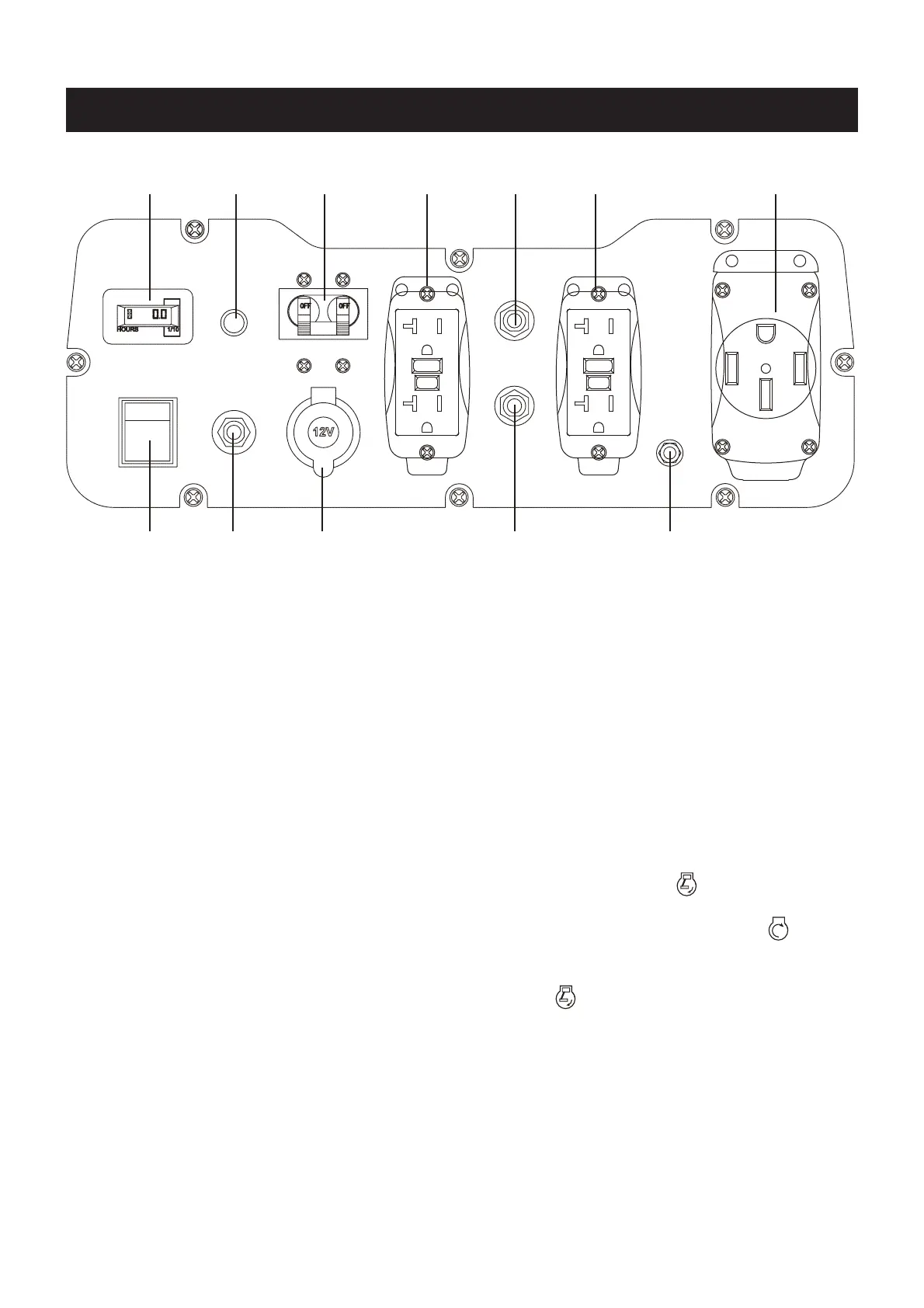

CONTROL PANEL FEATURES
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.
1. Hour Meter: Displays and records how many
hours your generator has run (up to 9,999.9).
2. Low Oil Indicator: The Light will be illuminated
when the engine oil level is low. Add oil.
3. Main Breaker: The main breaker controls total
output of all outlets to protect the generator from
overload or short circuit.
4. 120V AC, 20A Duplex, GFCI, Single Phase, 60 Hz
Outlets (5-20R): Each outlet is capable of
carrying a maximum of 20 amps on a single outlet
or a combination of both outlets.
5. Circuit Breaker(AC): Protects the generator against
electrical overloads.
1 32 4 5 4 6
5 78910
6. 120/240V AC, 50A, Single Phase, 60 Hz Outlet
(NEMA 14-50R): This outlet can supply either 120
Volt or 240 Volt output up to 50 amps.
7. Ground Terminal: The ground terminal is used to
ground the generator.
8. 12V DC, Outlet (Automotive): Provides 12 volt DC
power up to 8.3 amps.
9. Circuit Breaker (DC): Protects the generator
against electrical overloads.
10. Engine Control Switch: To start engine manually,
flip the switch to RUN (I) position and pull recoil
starter. To start engine with electric start, press
and hold the switch on the START (II) position
and the engine will crank and attempts to start.
When the engine starts, release the switch to the
RUN (I) position.
