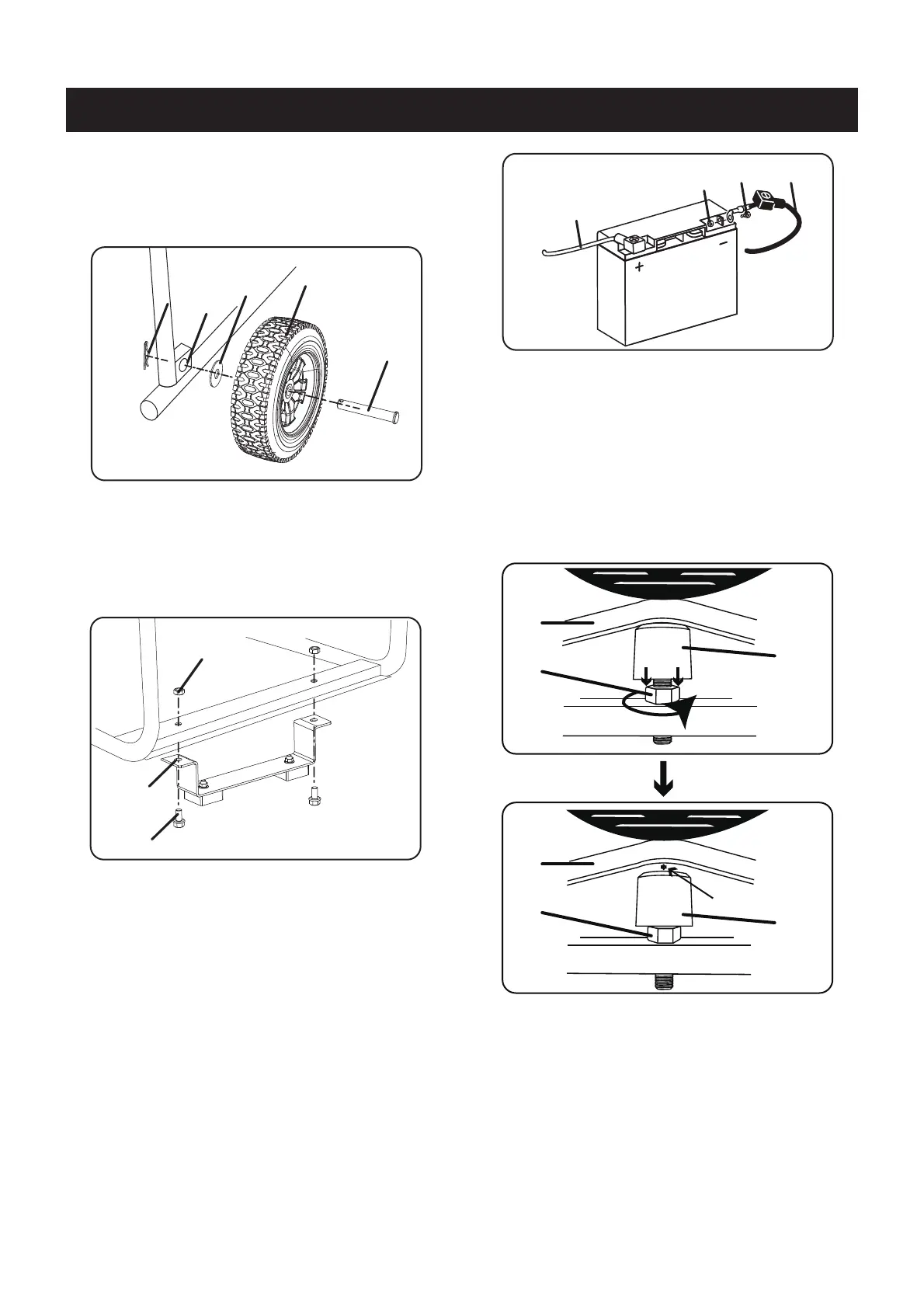

Page 08
ASSEMBLY
NOTE:
Handle already is assembled on the unit.
IMPORTANT: Before operating the generator the
shock-absorbing seat (K) must be adjusted for
clearance. Loosen the lock nut (L) and adjust the
shock absorbing seat (K) so there is about 3-4mm
gap between the top of the seat and the bottpm of
the alternator bracket (M). Re-tighten the lock nut
after adjustment.
3-4mm
3 - Slide axle pin (A) through the wheel (B), flat
washer (C) and generator frame axles hole (D).
4 - Secure everything with cotter pin (E). Repeat on
opposite side.
Install the Support Leg
5 - Insert bolts (F) throught the support leg (G) and
holes on the generator frame as shown.
6 - Tighten bolts (F) and nuts (H) to the frame.
M
K
L
M
K
L
G
F
H
Battery Cable Connection
NOTE: The generator comes equipped with the
positive cable (A) (with red boot) already attached.
1. Verify the positive (+) battery cable (A) with red
boot is securely tightened to the positive (+)
battery post. Make sure boot is over battery post.
2. Remove bolt (B) (M6x12) and nut (C) from battery
negative (-) post.
3. Locate negative (-) battery cable (D) with black
boot and attach to the negative (-) battery post.
Tight the cable with bolt (B) and nut (C). Cover the
post with black boot.
A
BD
C
A
B
C
D
E
