CONTROL PANEL FEATURES
Page 10
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.

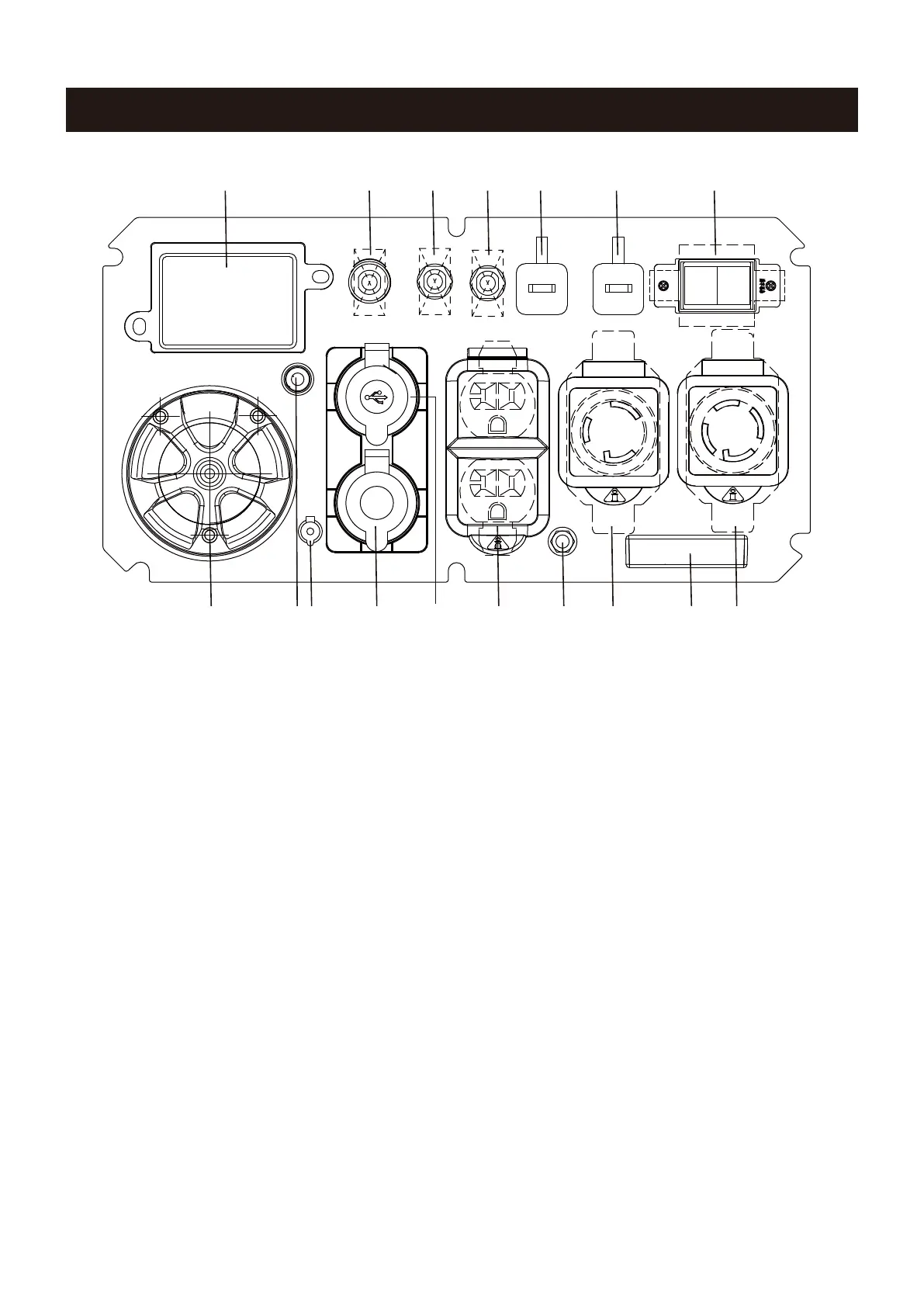

1 2 3 3 4 4 5
678
91011121315 14
12V
带防水帽
1. LED Data Center: See LED DATA CENTER section.
2. Circuit Breaker(DC): Protects the generator against
electrical overloads.
3. Circuit Breaker(AC): Protects the generator against
electrical overloads.
4. Parallel Operation Outlets: These outlets are used
for connecting two AIPOWER inverter generators for
parallel operation. Do not connect or disconnect
parallel cables while the generator is running to avoid
damage.
5. Voltage Selector Switch: To select 120 Volt or 240
Volt. Turn generator off before switching voltages.
6. 120/240V AC, 30A Twist Lock, Single Phase,60Hz
Outlet (NEMA L14-30R): supply either 120 Volt or
240 Volt output up to 30 amps.
7. LED Light
8. 120V AC, 30A Twist Lock Outlet, Single Phase,60
Hz Outlet (NEMA L5-30R): This receptacle can
provide120 volt output up to 30 amps.
9. Grounding Terminal: To ground the generator.
10. 120V AC, 20A Duplex, Single Phase, 60Hz
Outlets (5-20R): Each outlet is capable of carrying a
maximum of 20 amps on a single outlet or a ombina-
tion of both outlets.
11. 5V DC USB Outlets: Supply 3.6A USB-A type and
3.0A USB-C type for different applications.
12. 12V DC, Outlet (Automotive): Provides 12 volt DC
power up to 8.3 amps.
13. 12V DC Battery Charger Inlet: Plug the battery
float charger to this inlet and 120V wall outlet to
charge the generator battery when the generator is
not running.
14. CO (Carbon Monoxide) WATCH-GUARD Indicator
Light (Red for Shut off and Yellow for Service): The
CO(Carbon Monoxide) WATCH-GUARD monitors for
the accumulation of poisonous CO gas around the
generator produced by engine exhaust when the
generator is running. If the CO WATCH-GUARD
detects increasing levels of CO gas, it automatically
shuts off the engine. See CO WATCH-GUARD section
for more information.
15. Starting Dial Switch: Used to start and stop the
generator.
