CONTROL PANEL FEATURES
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.
1. LED DATA CENTER: See LED DATA CENTER
section.
2. Circuit Breaker(AC): Protects the generator against
electrical overloads.
3. Parallel Operation Outlets: These outlets are used
for connecting two AIPOWER inverter generators for
parallel operation. Do not connect or disconnect parallel
cables while the generator is running to avoid damage.
4. 120V AC, 20A Single, Single Phase, 60Hz
Outlets (5-20R): Each outlet is capable of carrying a
maximum of 20 amps on a single outlet or a ombina-
tion of both outlets.
5. Ground Terminal: The ground terminal is used to
ground the generator.
6. 120V AC, 30A Twist Lock outlet, single phase,60
Hz Outlet (NEMA L5-30R): This receptacle can
provide120 volt output up to 30 amps.
7. 5V DC USB Outlets: Supply 3.6A USB-A type and
3.0A USB-C type for different applications.
8. CO (Carbon Monoxide) WATCH-GUARD Indicator
Light (Red for Shut off and Yellow for Service): The
CO (Carbon Monoxide) WATCH-GUARD monitors for
the accumulation of poisonous CO gas around the
generator produced by engine exhaust when the
generator is running. If the CO WATCH-GUARD detects
increasing levels of CO gas, it automatically shuts off
the engine. See CO WATCH-GUARD section for more
information.

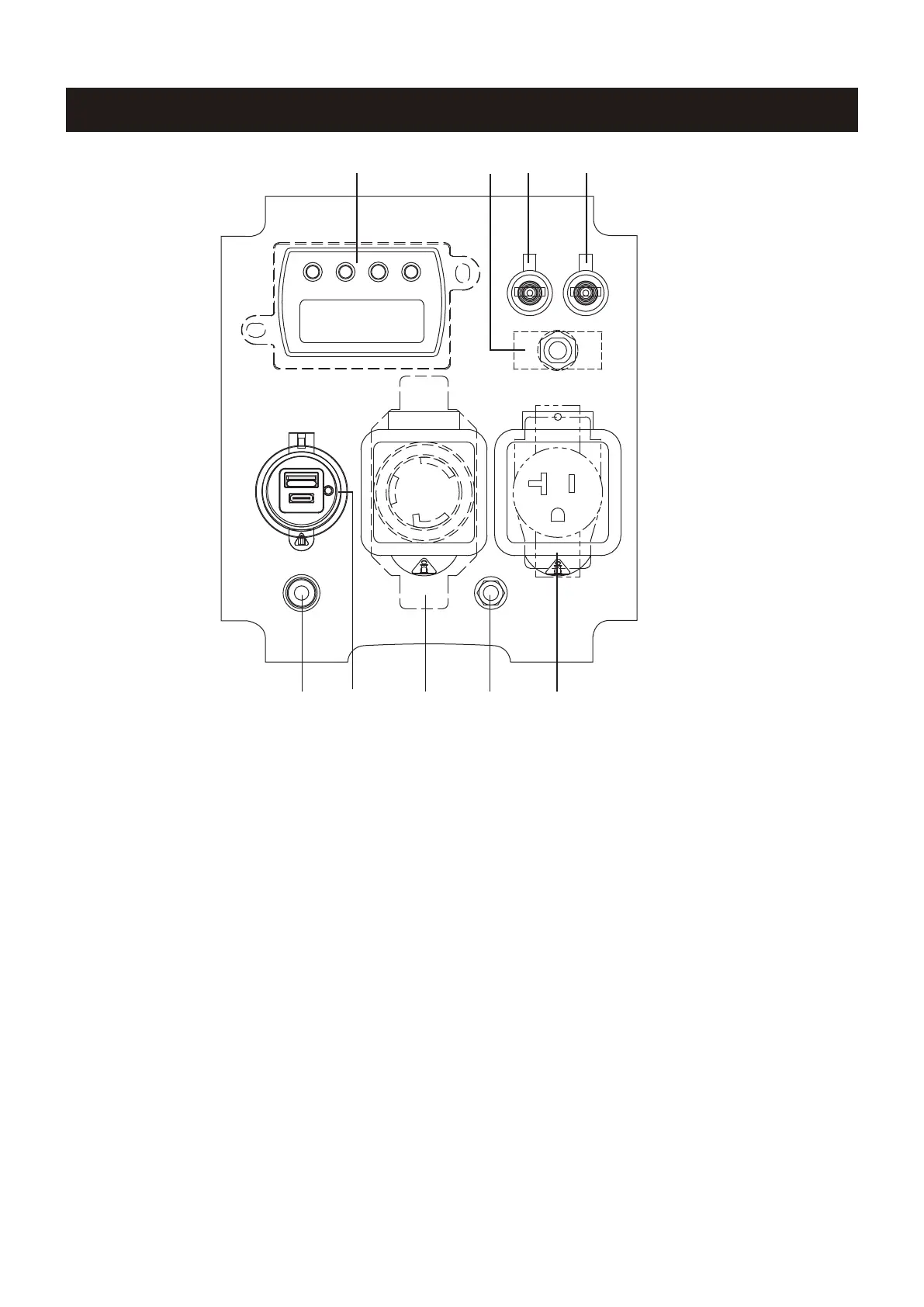

1 2 3 3
