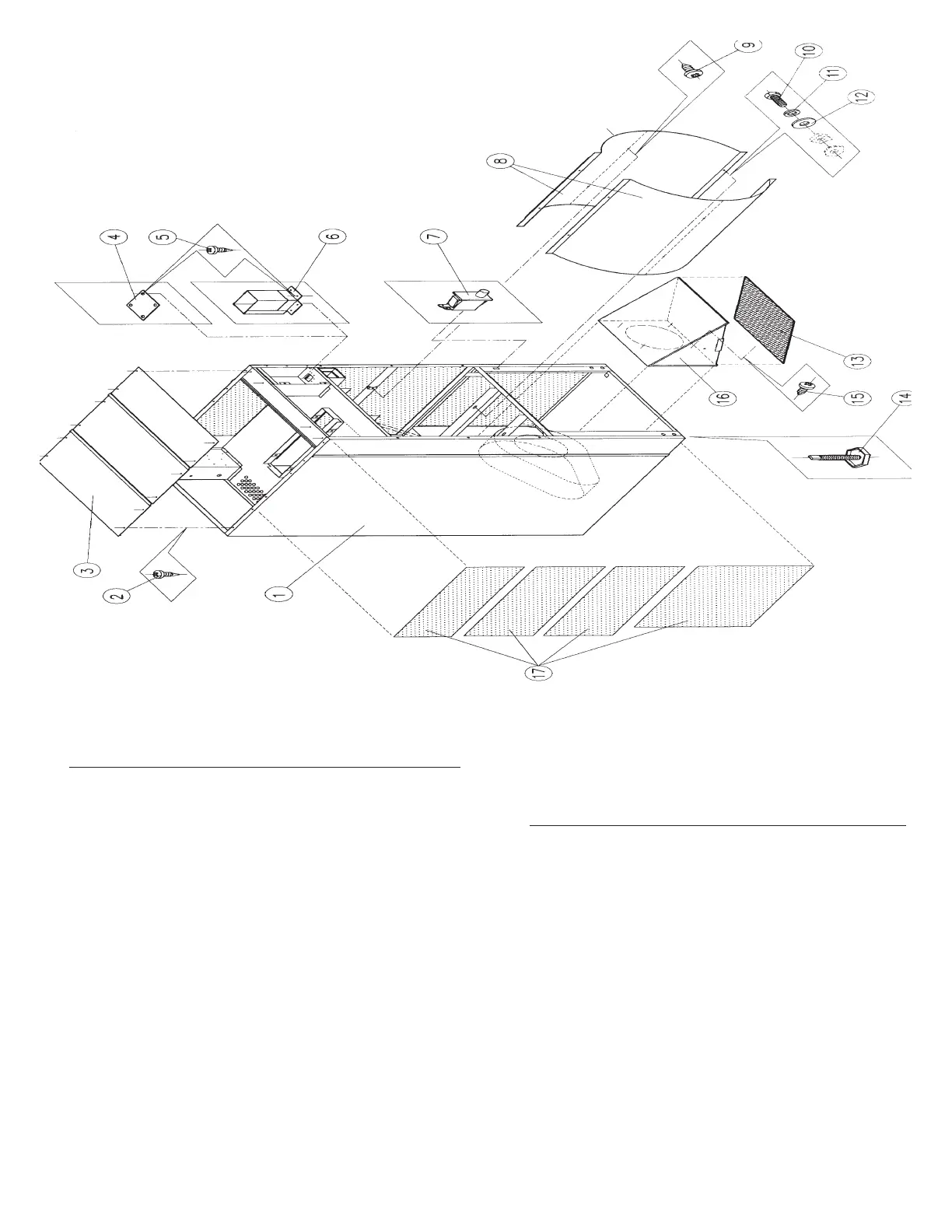

IPSO DR75 - Front View Parts Identification

Page 29
Ref. Part No. Description
No.
1 CSA-50045WH Jacket gas/electric (white)
1 CSA-50052WH Jacket steam (white)
2 TU7733 Screw self drilling 8-18 X 1/2”
3 CA-13027-0 Top panel
4 CSA-11546-0 Cover plate (non-coin models)
5 TU7733 Screw self drilling 8-18 X 1/2”
6 CSA-01435-0 Coin chute w/a
7 EA-00650-0 Microswitch door
8 CA-13026-0 Right sweepsheet
9 CA-13026-0 Left sweepsheet (gas & elec)
9 CA-13095-0 Right sweepsheet (steam)
Ref. Part No. Description
No.
10 CB36 Screw -hex 1/4-20 X 1/2”
11 TU2846 Lockwasher 1/4” medium
12 TU2847 Washer 1/4”
13 CA-13085-0 Lint frame
13 CA-13035-0 LintScreen
14 TU3211 Leveling bolt
15 TU7733 Screw self drilling 8-18 X 1/2”
16 CSA-01545-0 Support filter
17 CSA-01512-0 Insulation side WMC complete
-used on gas models only-
FRONT VIEW
