Page 31
Ref. Part No. Description
No.
1 SB-00915-0 Screw self drilling #10-16 X 5/8
2 CSA-01523WH Front panel, welded assy.-Coin
2 CSA-01513WH Front panel, welded assy-OPL
3 TU3213 Pop Rivet PVD doorlocker
4 TU2876 Latch strap
5 CA-00676 Insulation
6 SB-00924-0 Screw 4-40*3/8 taptite
7 SB-00938-0 Washer 4 external tooth
8 CA-00699-0 Bezel - Coin box
9 ESA-00862-0 Reed switch assy.
10 SB-009775-0 Screw 6-32*1/4 phillips
11 EA-00827-0 Mounting plate - Reed switch

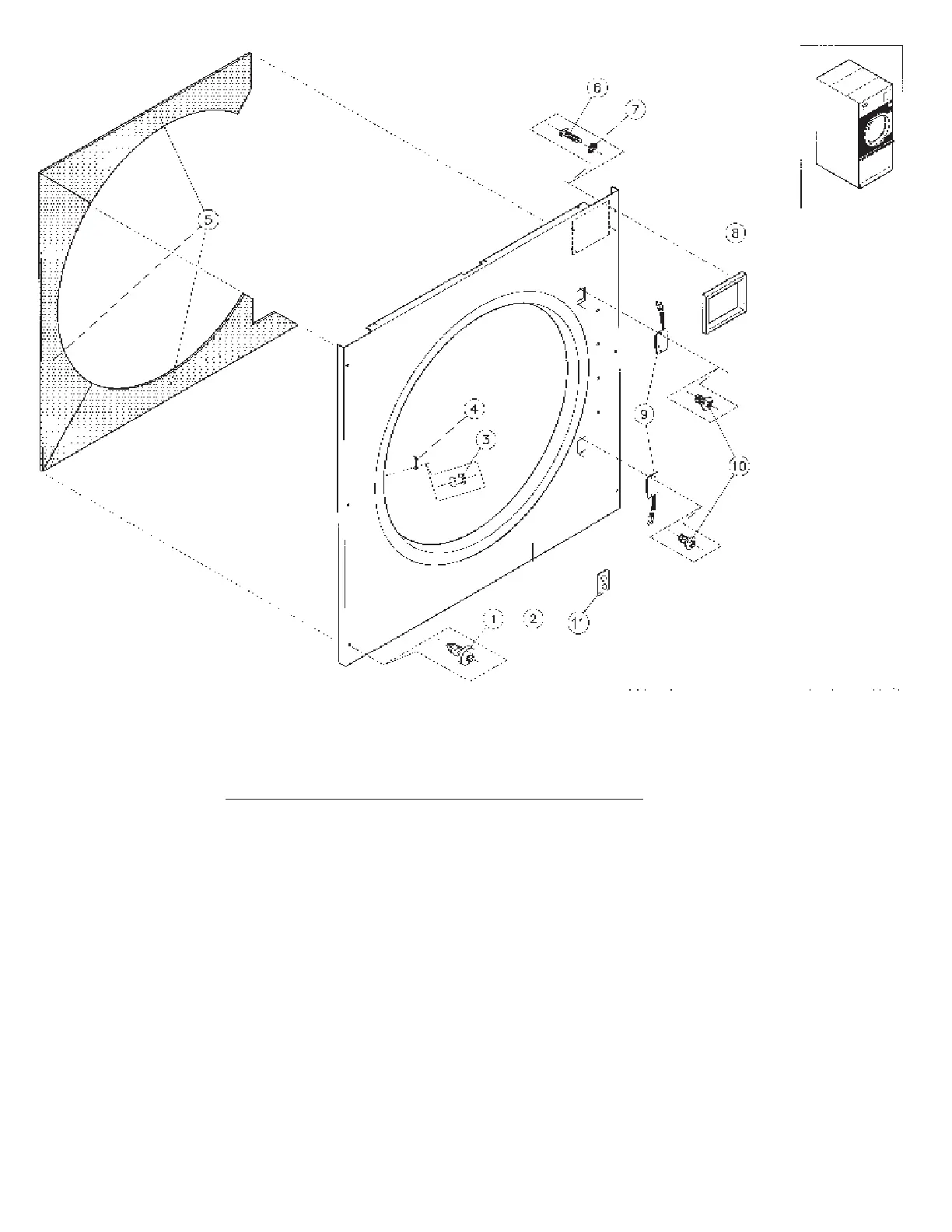

FRONT PANEL ASSEMBLY
