IPSO DR75 - Motor & Fan Assembly - Non-Reversing

Page 40
Ref. Part No. Description
No.
1 DA-00477-0 Fan motor 3/4 HP 115/208/230/60/50/1
1 DA-00480-0 Fan motor 3/4 HP 230/460/60/3 & 220/380/50/3
2 TU2814 Lock washer 5/16”
3 TU5439 Screw-cap 5/16-18 X 3/4"
4 DSA-00782-0 Motor mount w/a - non-rev.
5 SB-00842-0 Nut, grip, Tinnerman
6 SB-00836-0 Screw, phillips, pancake head
7 DSA-00773-0 Fan (12")
8 SB-00813-0 Nut 1/2-20" - Left hand thread
9 SB-00847-0 Washer -1" O.D. X .505 I.D.
10 IB140 Washer cut 3/8"
11 VSB134 Washer lock 3/8"
12 TU4787 Hex nut 3/8-16"
13 DA-00460-0 Seal, acoustical
14 SB-00847-0 Washer -1" O.D. X .505 I.D.
15 DA-00512-0 Sheave, 60 cycle, 1/2” bore
15 DA-11906-0 Sheave, 50 cycle, 1/2” bore
16 TU2473 Gasket - curved (2 req’d)
17 TU2474 Gasket - straight (2 req’d)

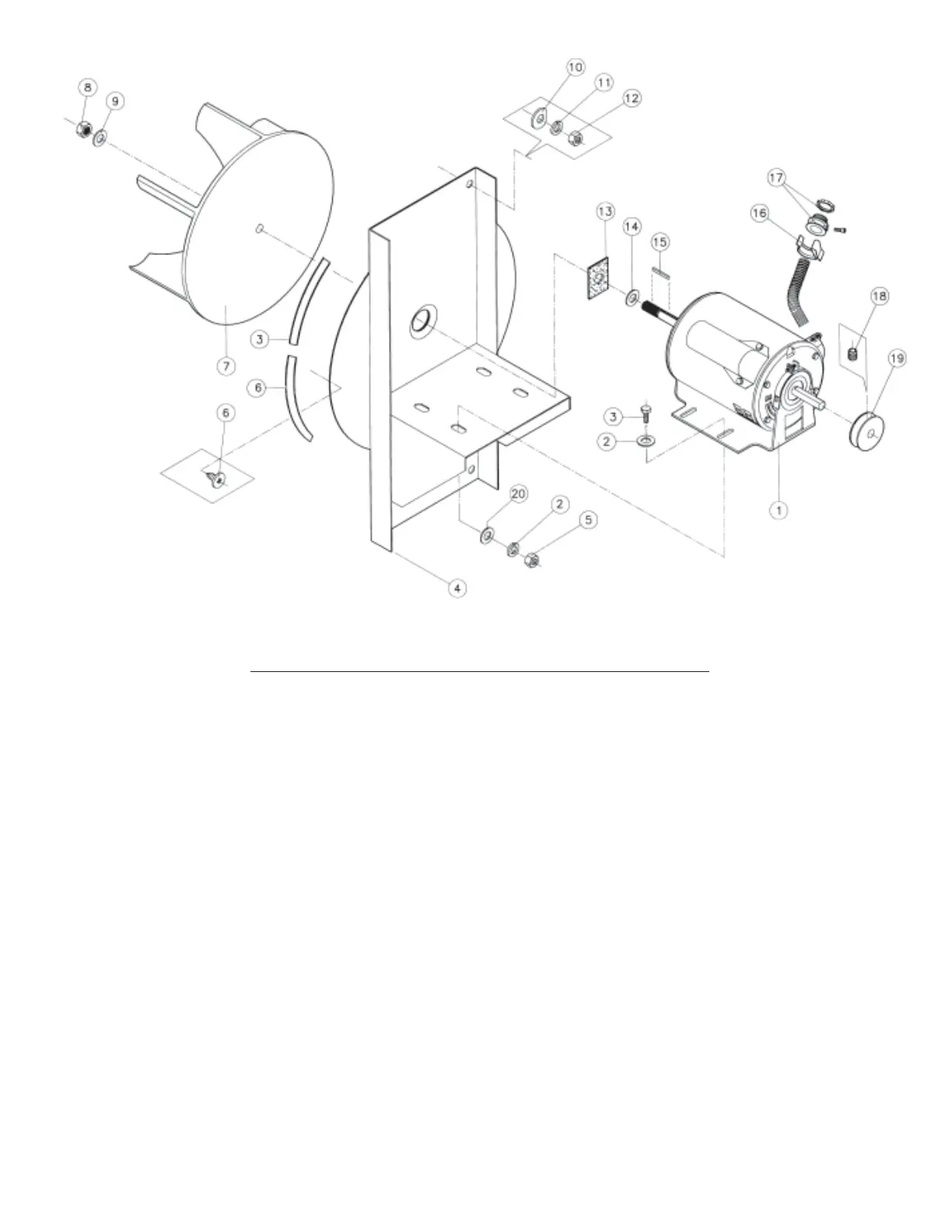

MOTOR & FAN ASSEMBLY- NON-REVERSING
