IPSO DR75 - Lint Door Assembly

Page 35
Ref. Part No. Description
No.
CSA-01515WH Complete Asm - WMC75 OPL
CSA-01594WH Complete Asm - WMC75 Coin
1 CSA-01516WH Lint door w/latch holes(white) OPL
1 CSA-01593WH Lint door w/lock holes(white) Coin
2 CSA-00839-0 Kickplate
3 SB-00949-0 Fastener plastic kickplate
4 CA-13131-0 Insulation lower frontpanel WMC75
5 SB-00915-0 Screw self drilling #10-16 X 5/8
6 TU2853 Gasket
7 CA-00697-0 Handle lint door
8 CA-00841-0 Label (not part of assy.)
9 CA-00655-0 Trim-rubrail-specify 39” long
10 CA-11359-0 Cam lock
11 CA-00121-0 Lock
12 CA-00119-0 Key
13 CA-00123-0 Latch - trigger
For OPL models only.

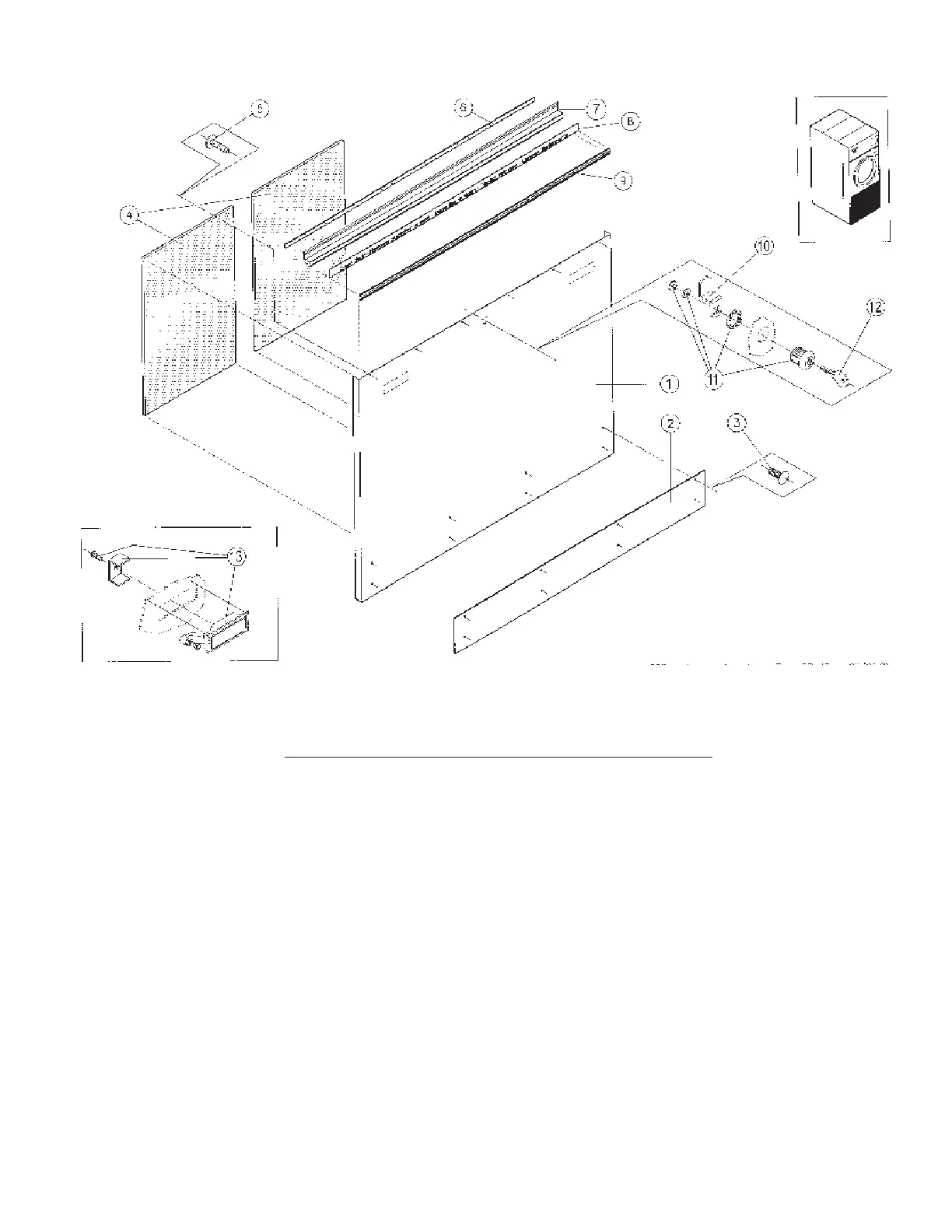

LINT DOOR ASSEMBLY
