Tumblers – 50 and 75
16
4-08-44

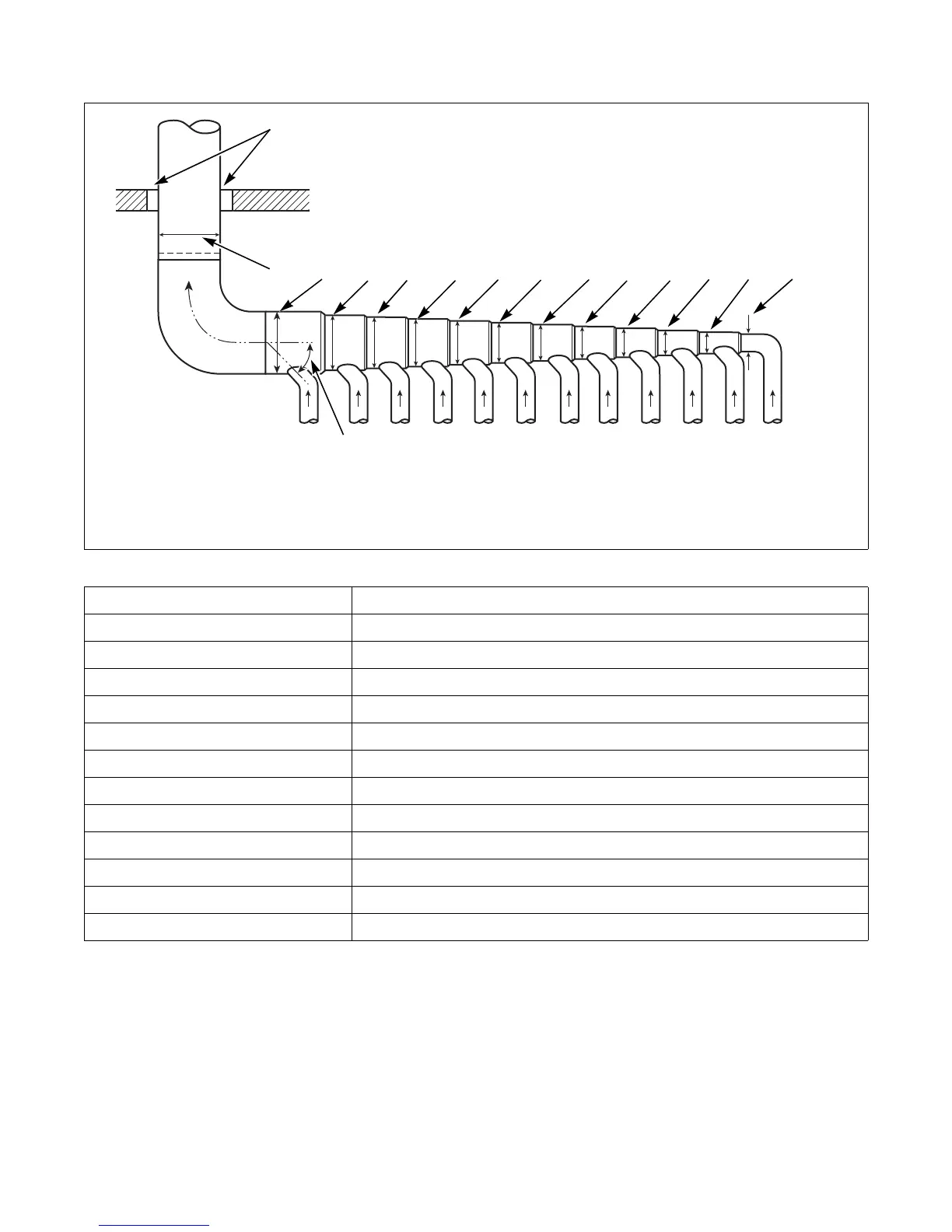

Figure 4
TMB2019N
1 NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, the opening
MUST be sized per local codes.
2 Outlet duct diameter
3 45° typical
LKJ I HG F
E
DCB A
3
1
2
ONE MANIFOLD ASSEMBLY
Duct Station 8 in. (203 mm) Duct
A
8 in. (203 mm)
B
12 in. (305 mm)
C
15 in. (381 mm)
D
17 in. (432 mm)
E
19 in. (483 mm)
F
21 in. (533 mm)
G
23 in. (584 mm)
H
25 in. (635 mm)
I
26 in. (660 mm)
J
27 in. (686 mm)
K
29 in. (737 mm)
L
30 in. (762 mm)
Table 2
