Tumblers – 50 and 75
4-08-44
17

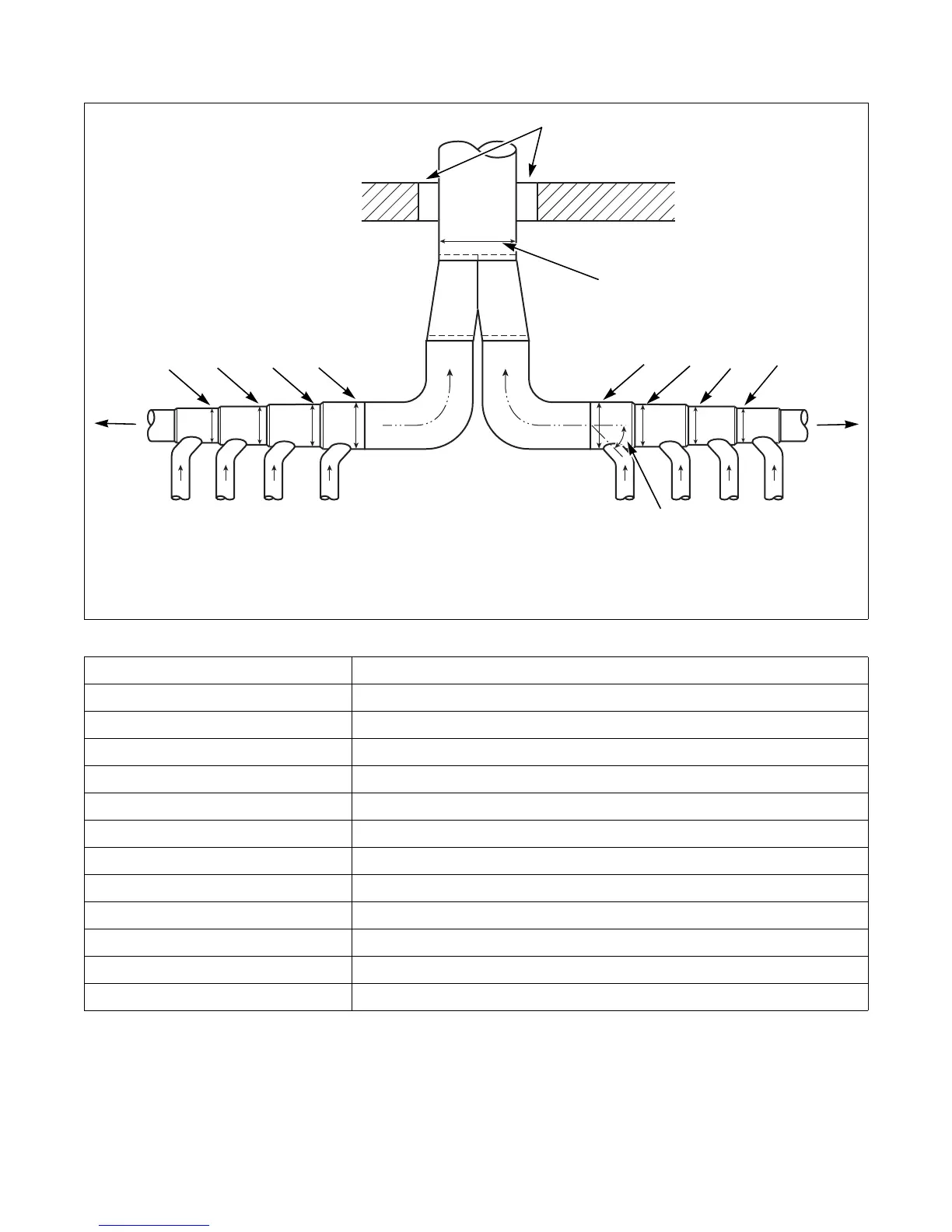

Figure 5
TMB2018N
1 NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, the opening
MUST be sized per local codes.
2 Outlet duct diameter
3 45° typical
1
2
3
LKJ I
L
K
J
I
CONTINUE
TO A
CONTINUE
TO A
TWO MANIFOLD ASSEMBLIES
Duct Station 8 in. (203 mm) Duct
A
13 in. (330 mm)
B
17 in. (432 mm)
C
18 in. (457 mm)
D
24 in. (610 mm)
E
27 in. (686 mm)
F
30 in. (762 mm)
G
33 in. (838 mm)
H
34 in. (864 mm)
I
37 in. (940 mm)
J
39 in. (991 mm)
K
40 in. (1016 mm)
L
42 in. (1067 mm)
Table 3
To Next Page
