-SENSOR-HD-00-SWITCH-(IO)-00-(R)(1) Installation Manual | Released

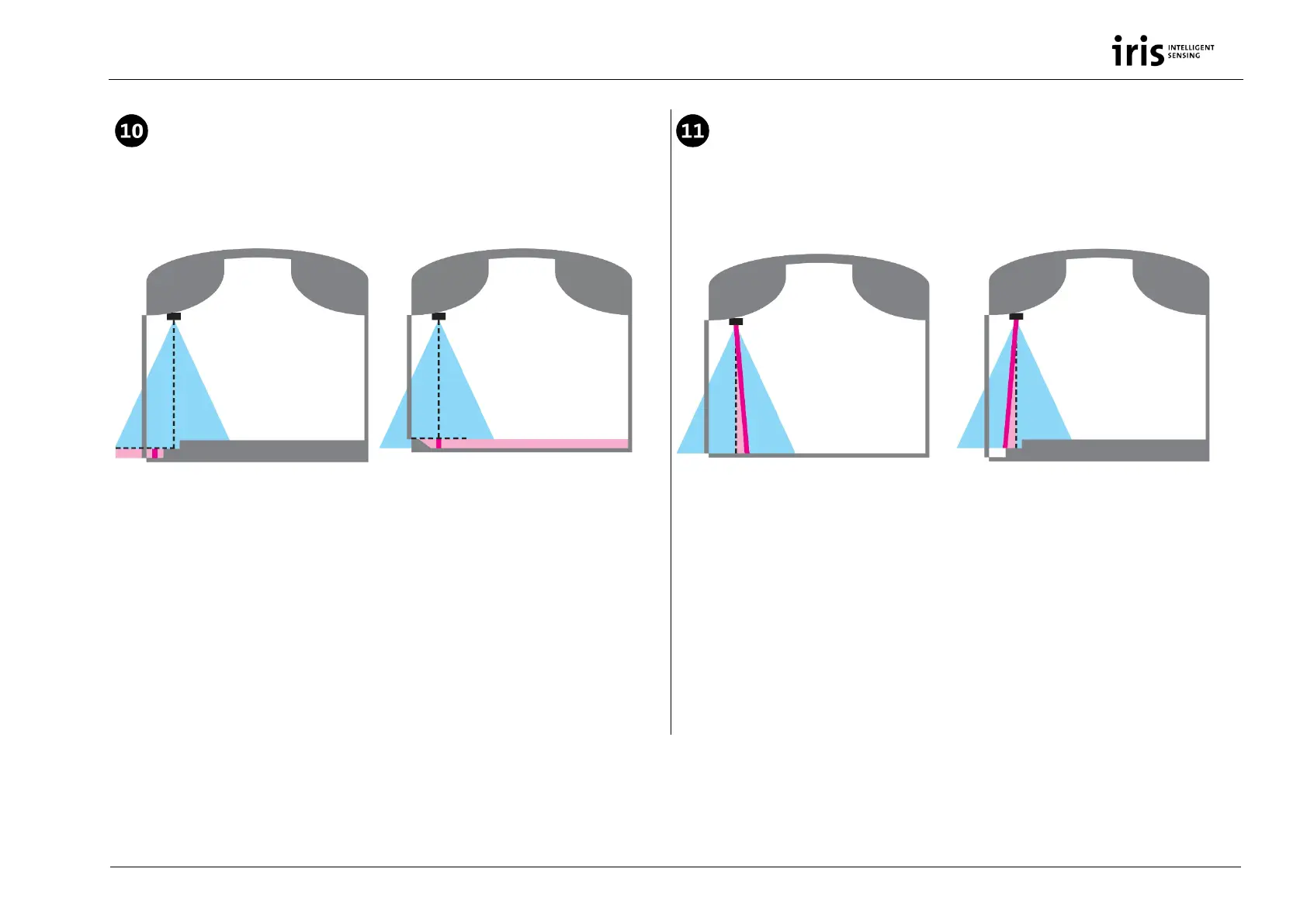

Vehicle edge offset
Rotation angle X
positive value negative value
positive angle negative angle
Side view
Vehicle edge offset is the difference in level between the adhesive marker
and the vehicle edge with the door open. The vehicle edge may be below or
above the adhesive marker. Measure the difference in height between
the vehicle edge and the adhesive marking and:
Rotation angle X is the inclination angle of the sensors visual axis (=x axis)
when the vehicle is stationary on a level plane. Sensors directed towards
the inside have a positive angle. This angle must not be > 5°; otherwise
the counting accuracy is reduced. Measure the sensor‘s angle of rotation
(e.g. using a suitable smartphone app) and enter the value measured.
• Set the measured value as positive (> 0 mm)
if the vehicle edge is below the adhesive marker.
• Set the measured value as negative (< 0 mm)
if the vehicle edge is above the adhesive marker.
