-SENSOR-HD-00-SWITCH-(IO)-00-(R)(1) Installation Manual | Released
Left / right wall distance
Left / right door clearance

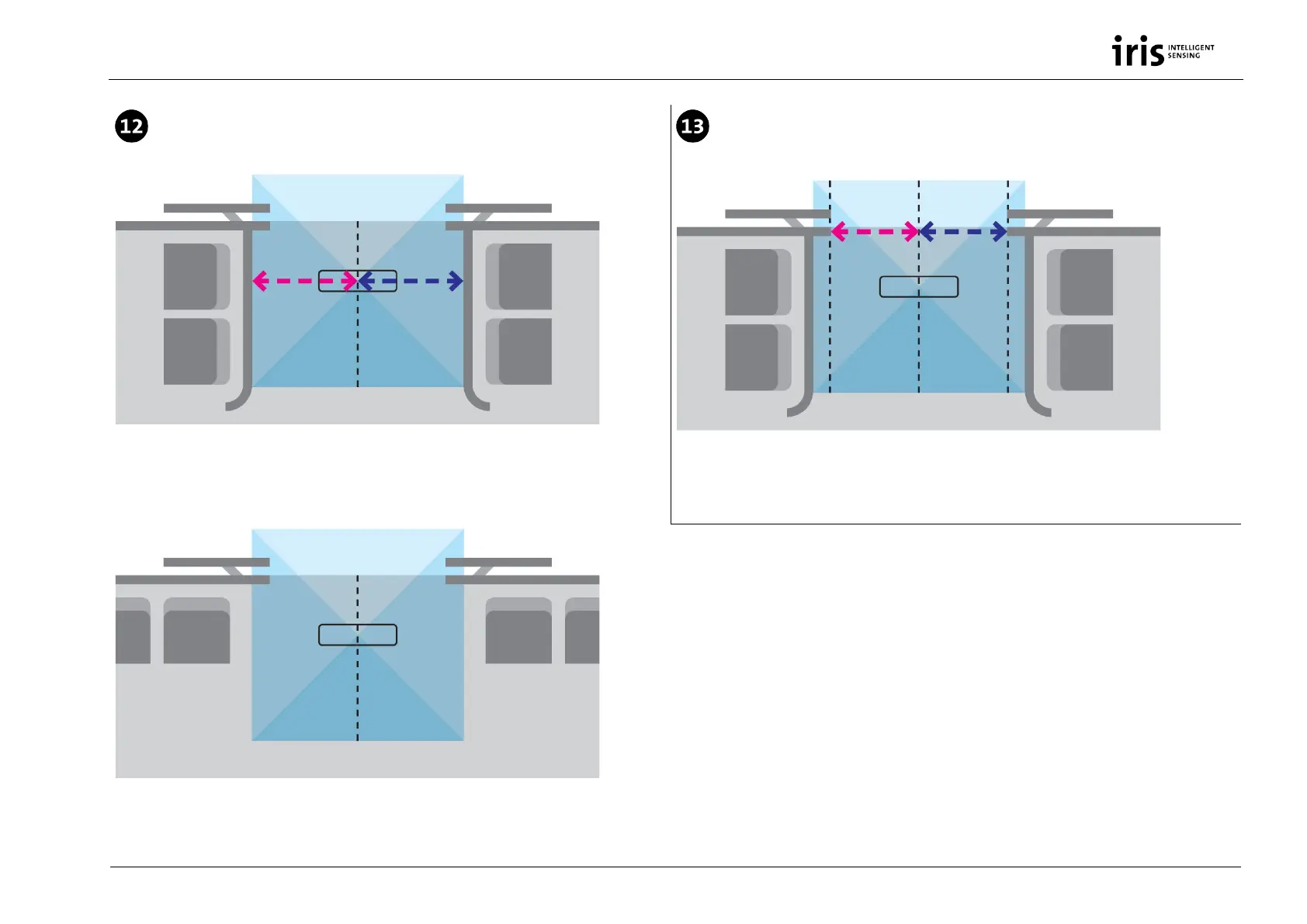

Left/right wall distance is the left-hand/right-hand sensor monitoring
area up to the left/right lateral boundary in the vehicle interior.
Left/right door clearance (passage width) is the horizontal distance
between the sensor and the left/right opened door parallel to the vehicle edge.
Enter 0 mm if there is no opened door in the sensor viewing range.
Set 0 mm if there is no obstacle between the adhesive marker and
the left/right lateral boundary when the door is open.
Left wall
distance
Right wall
distance
Left door
Right door
To Next Page
