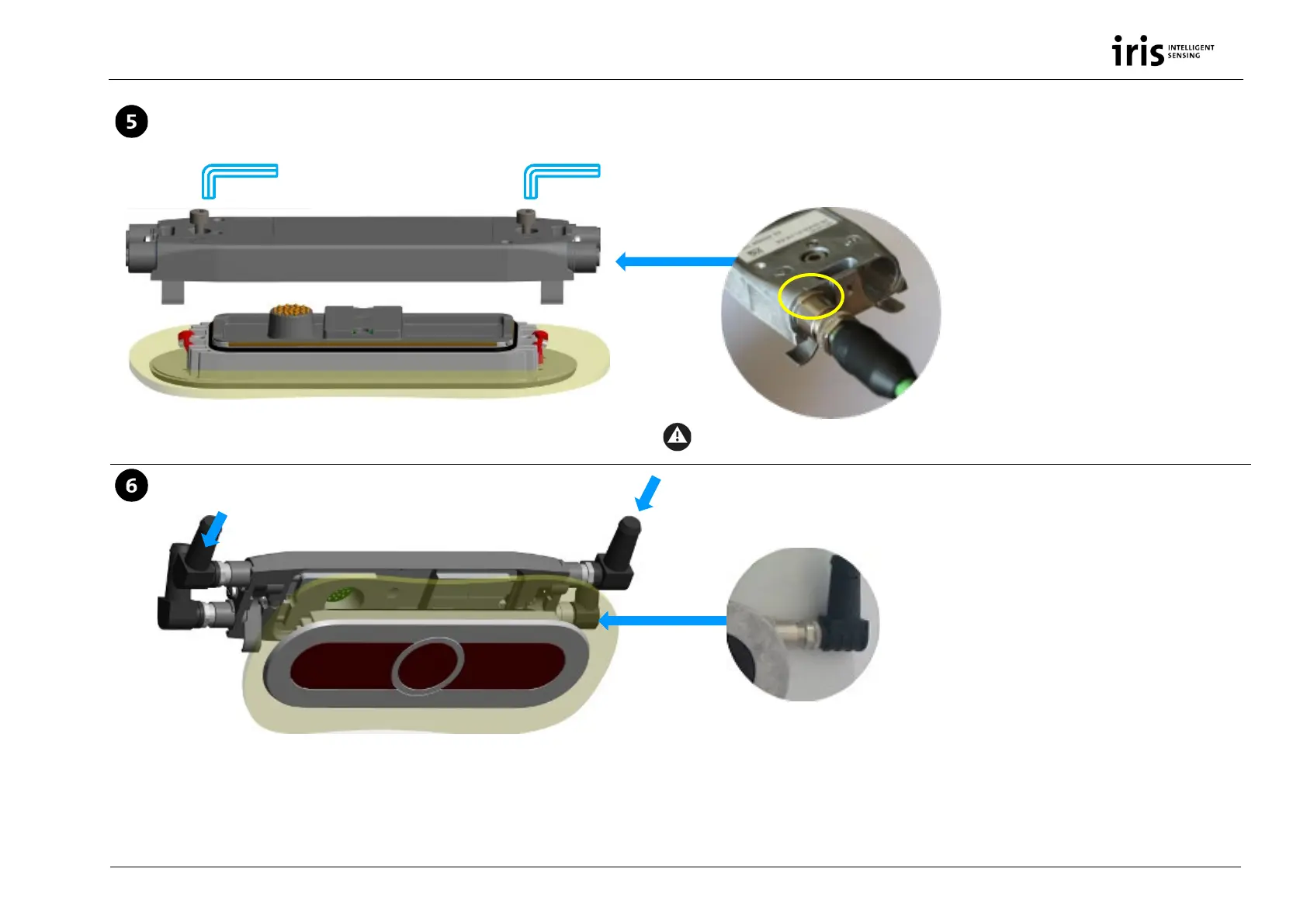

Tighten screws with hex key
Max. 3 Nm Max. 3 Nm
Tighten both screws max. 3 Nm with a hex key (4 mm) on the interface unit.
For easy and correct connection to the cables: Align the M12 connector so that the stop lug is
centered toward the top of the labels!
Connect IRMA 6
Connect IRMA 6 via (angled) M12 connectors to the Ethernet
network, to voltage supply and optionally to the door contacts.
Angled M12 connectors, slewable (180°), optionally available.
