Ironman4x4 BB074 - Bull Bar Parts List; Tools Required; Bolt Tension Chart

Page 2 of 13
BB074Installation Guide
©Copyright 2021 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd

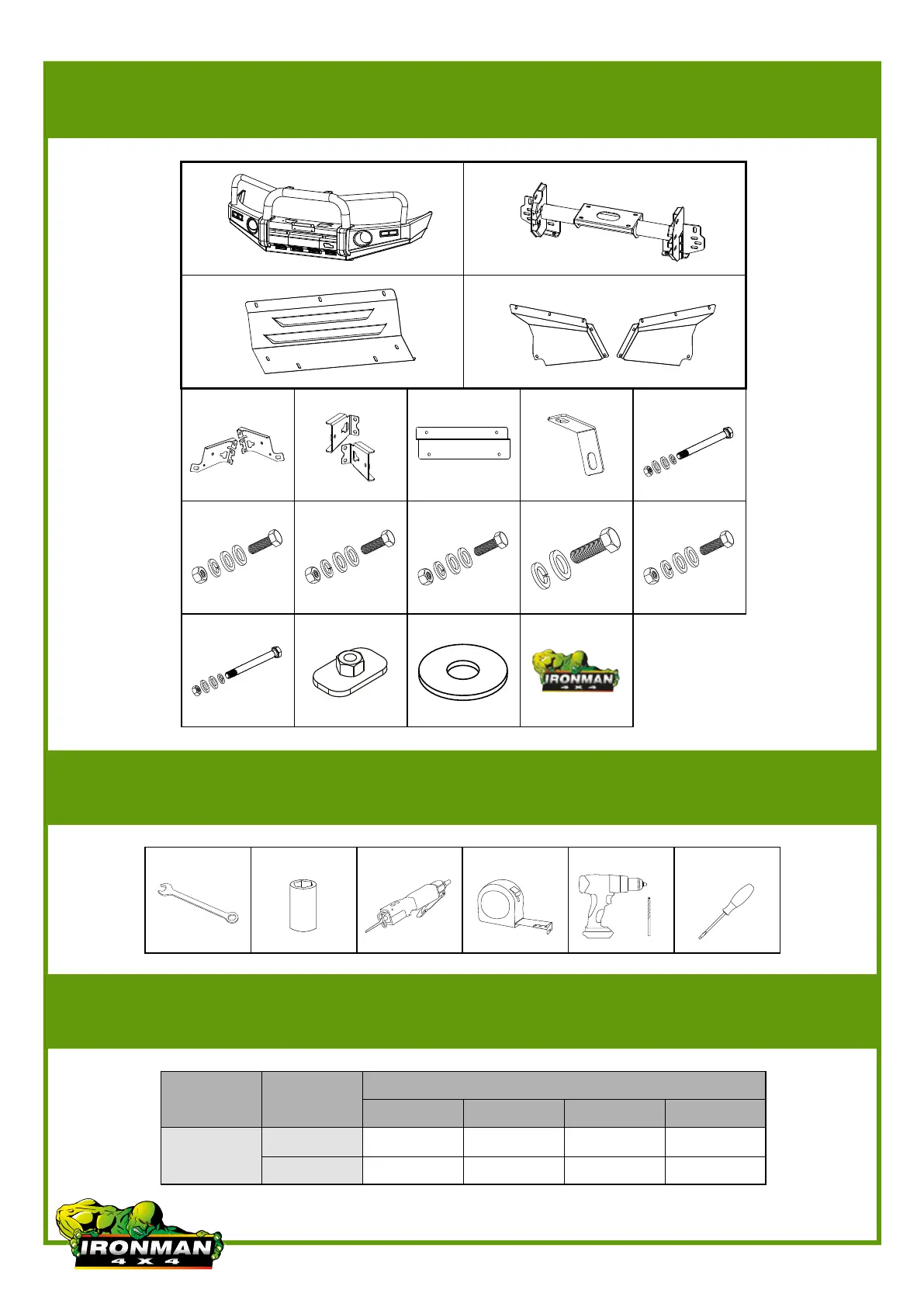

Bull Bar Parts List
Tools Required
1. Bull Bar
QTY-1
2. Mounting Bracket
QTY-1
3. Steel Skid Plate
QTY-1
4. Steel Skid Plate L-R
QTY-2
5. Support Bracket 1 L-R
QTY-2
6. Support Bracket
QTY-2
7. License Plate Bracket
QTY-2
8. Skid Plate Bracket
QTY-2
9. Bolt M12x1.25x90mm
QTY-4
10. Bolt M10x1.25x40mm
QTY-4
11. Bolt M12x1.25x40mm
QTY-16
12. Bolt M6x1.0x25mm
QTY-2
13. Bolt M8x1.25x25mm
QTY-13
14. Bolt M8x1.25x25mm
QTY-4
15. Bolt
M10x1.25x120mm
QTY-4
17. Bolt M8x1.25x25mm
QTY-2
18. M10 Washer
QTY-4
19. Logo
QTY-1
Metric spanner set Metric socket set
Air hacksaw
Tape measure Drill and drill bits
Screwdriver set
Bolt Tension Chart
Property Class TORQUE ma
NOMINAL DIAMETER - COARSE THREAD
M6 M 8 x 1 M 10 x 1.25 M 12 x 1.5
8.8
Nm 10.5 25 49 88
ft/lb 7.7 18 36 64
