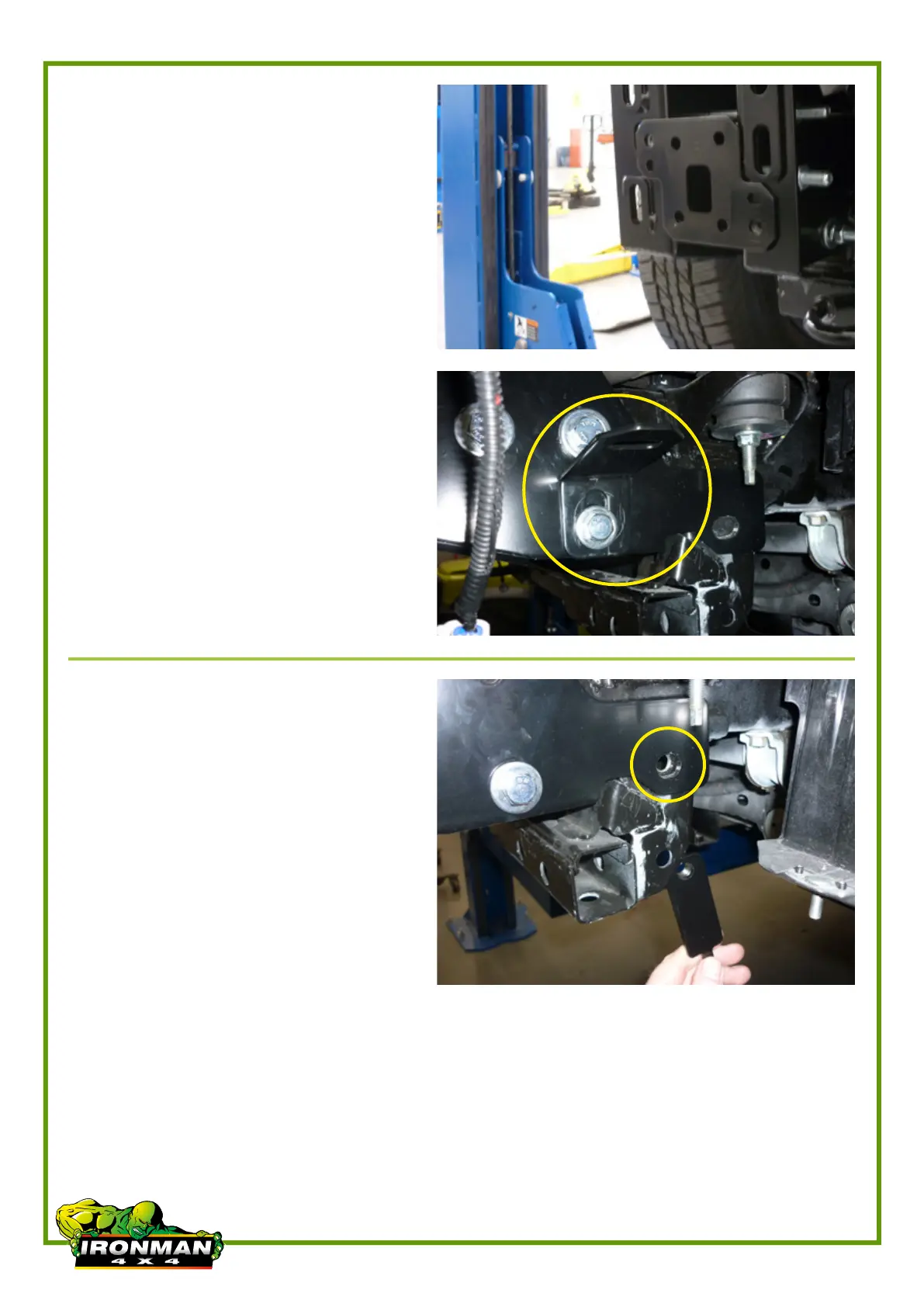

10. Using rear hole in outer support
brackets as a guide drill 1 x 12mm
hole per side, insert nut plate and
secure with M12 x 40mm bolt,
spring washer and flat washer.
9. Install inner and outer chassis
support brackets to the chassis
using the following per side:
Secure protection plate mounting
bracket to outside chassis support
bracket using the lower M10 bolts
as shown and tighten.
• 2 x M10 x 120mm bolts
• 4 x flat washers
• 2 x spring washers
• 2 x M12 nuts per side
• 1 x M10 x 120mm bolt
• 2 x flat washers
• 1 x spring washer
• 1 x M12 nut
To Next Page
