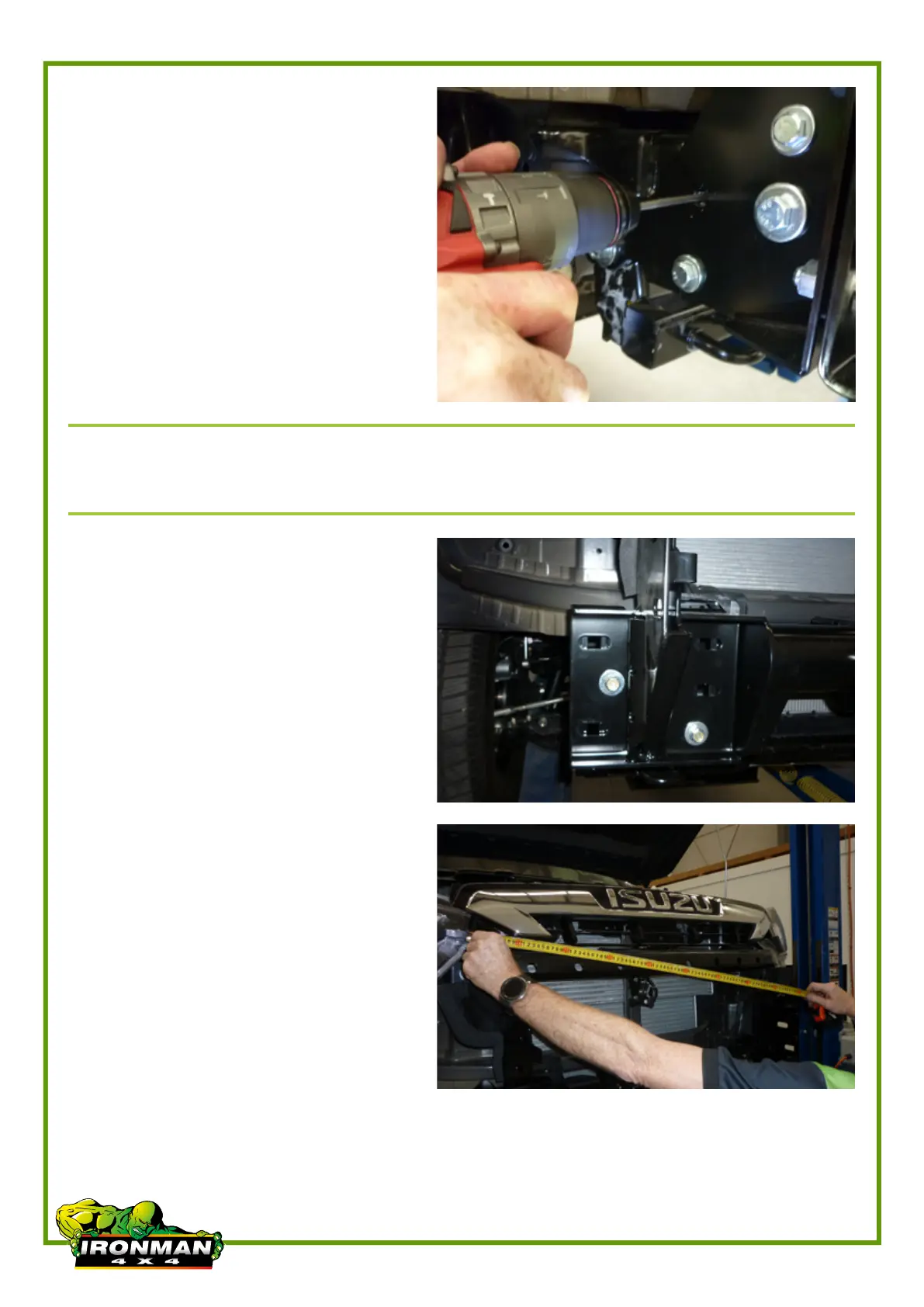

12. Fit rubber edging to outside edges of
bumper bar where cuts were made.
13. Fit mounting cradle to chassis
and secure using 4 x original M10
bolts and supplied M10 washers
removed from vehicle. Centralise
bracket to vehicle body and tighten
bolts.
11. Using remaining holes in the inner
and outer support brackets as a
guide drill 4 x 12mm holes. Secure
with 1 x M12 x 120mm bolt, 2 x
12mm flat washers, 1 x 12mm
spring washer and M12 nut per
side.
To Next Page
