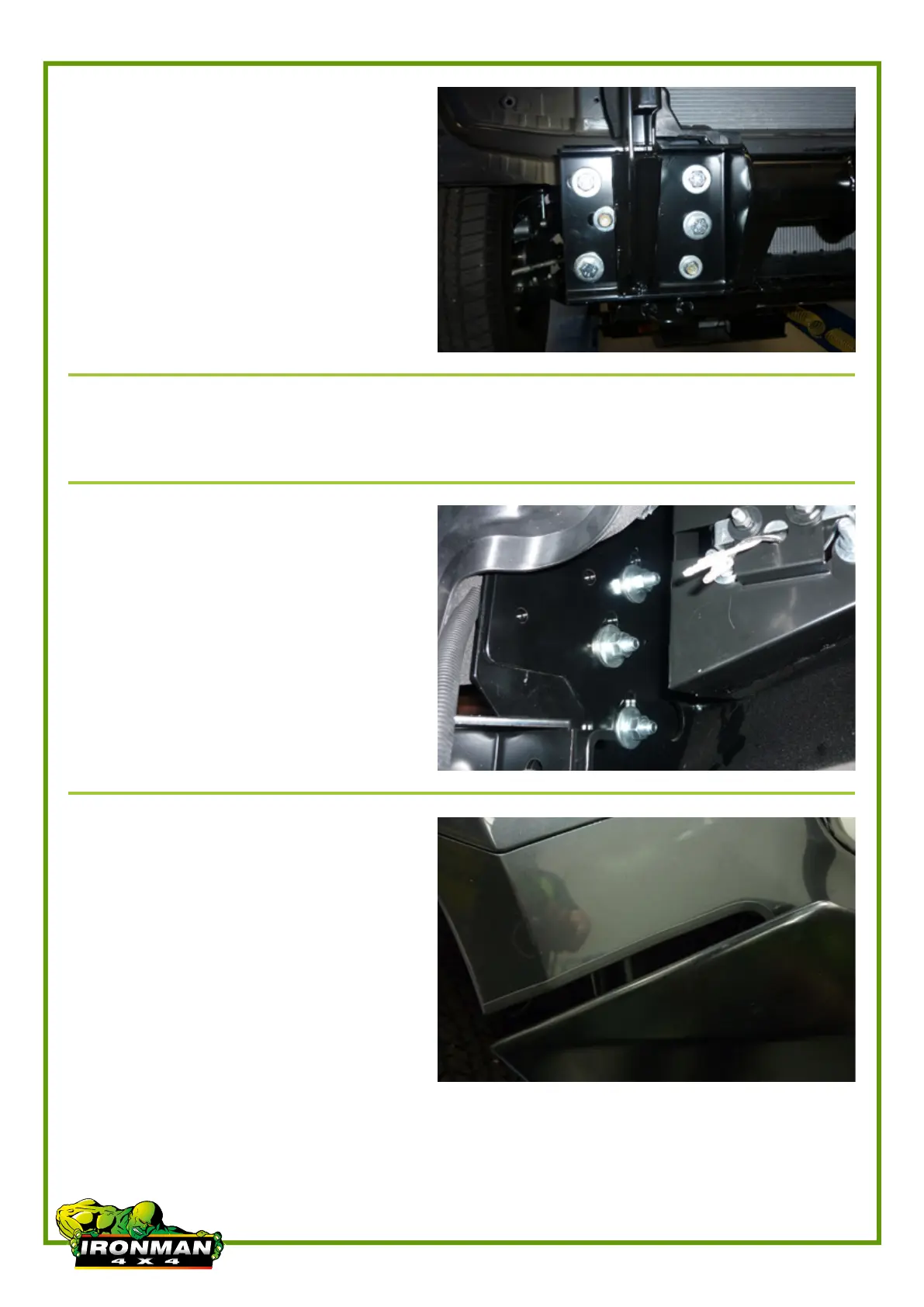

16. Fit bullbar to vehicle using
6 x M12 x 40mm bolts, 12 x flat
washers, 6 x spring washers and
6 x M12 nuts. Do not tighten.
17. Align bar with vehicle leaving a
minimum 20mm gap between the
bullbar and bumper, to allow for
body movement.
14. Install 8 x M12 x 40mm bolts,
16 x flat washers, 8 x spring
washers and 8 x nuts to remaining
mounting holes and tighten.
15. Install 2 x captive nuts to square
number plate mounting holes in
the face of the bullbar from behind.
