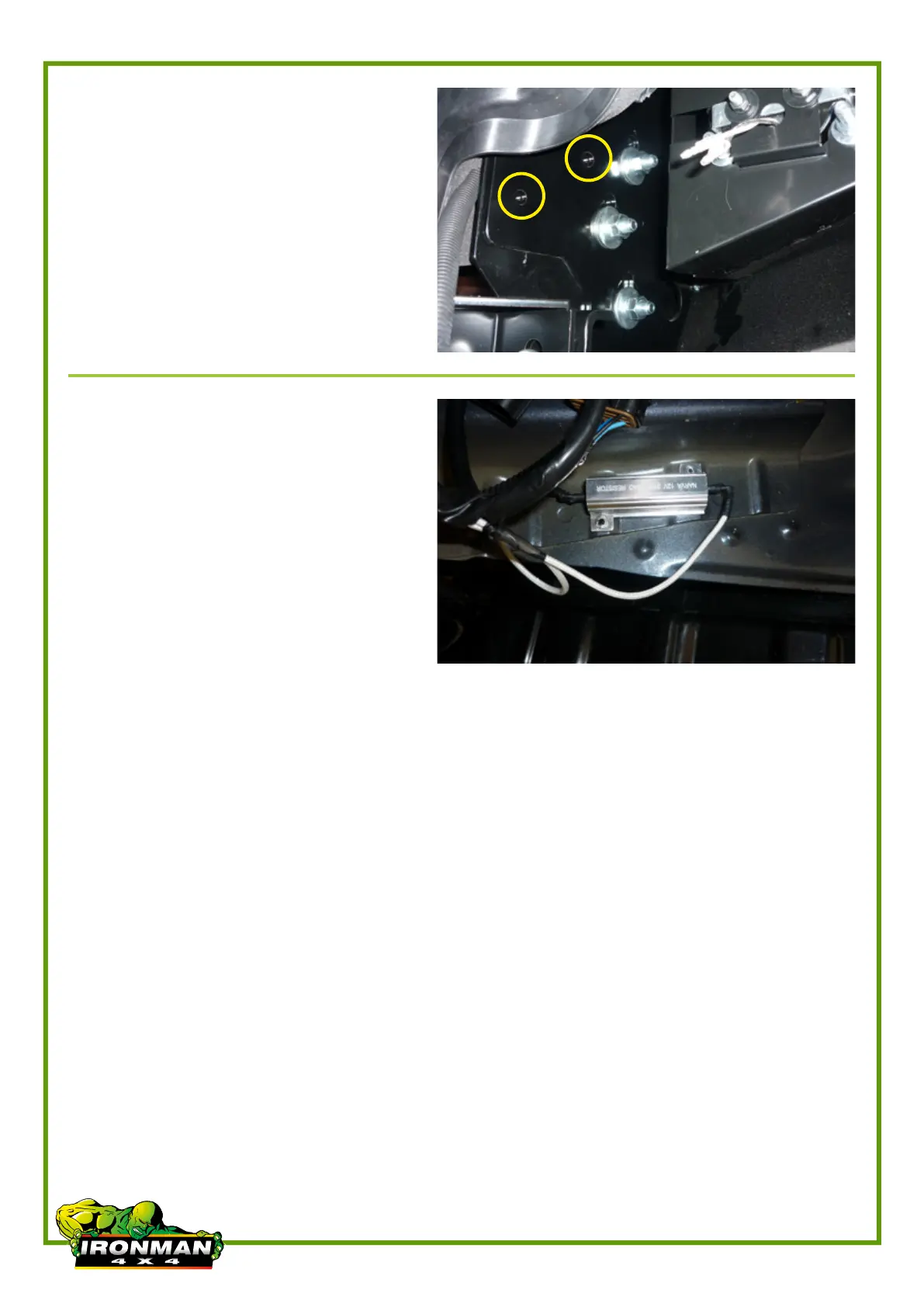

18. Once bullbar is aligned, drill
4 x 10mm holes through pinning
points as shown and secure in
position using 4 x M10 x 40mm
bolts, 8 x flat washers, 4 x spring
washers and 4 x M12 nuts.
19. Connect lights as per wiring
diagram on page 13.
NOTE:
Supplied 21W resistor must be
connected to indicator wiring
to ensure correct function of
indicators.
