Ironman4x4 BBC110 - Parts List

Page 4 of 25
BBC / BBCD / BBP110 Installation Guide
©Copyright 2023 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd
Document Number: BB110/241123
No. Part Description Qty
1.
Bull bar assembly 1
2.
Number plate flip bracket 1
3.
Underbody protection plate 1
4.
Side wing protection plate - LHS 1
5.
Side wing protection plate - RHS 1
6.
Winch cradle 1
7.*
Rear chassis bracket spacer - LHS 1
8.*
Rear chassis bracket spacer - RHS 1
9.
No. Part Description Qty
10.
Front chassis bracket spacer - RHS 2
11.
Air trap plate 1
12.
Recovery point - LHS 1
13.
Recovery point - RHS 1
14.
Support Mounting Bracket - LHS 1
15.
Support Mounting Bracket - RHS 1
16.
Side wing protection plate bracket 1 - LHS 1
17.
Side wing protection plate bracket 1 - RHS 1
18.
Side wing protection plate bracket 2 - LHS 1
No. Part Description Qty
19.
Side wing protection plate bracket 2 - RHS 1
20.
Horn Mounting Bracket 2
21.
Sensor holders 6
22.
Wired crush tube 2
23.
Wired spring clip 2
24.
Logo badge 1
25.
Pinch weld 1
26.
Recovery point warning sticker 2
27.
Zip ties 8

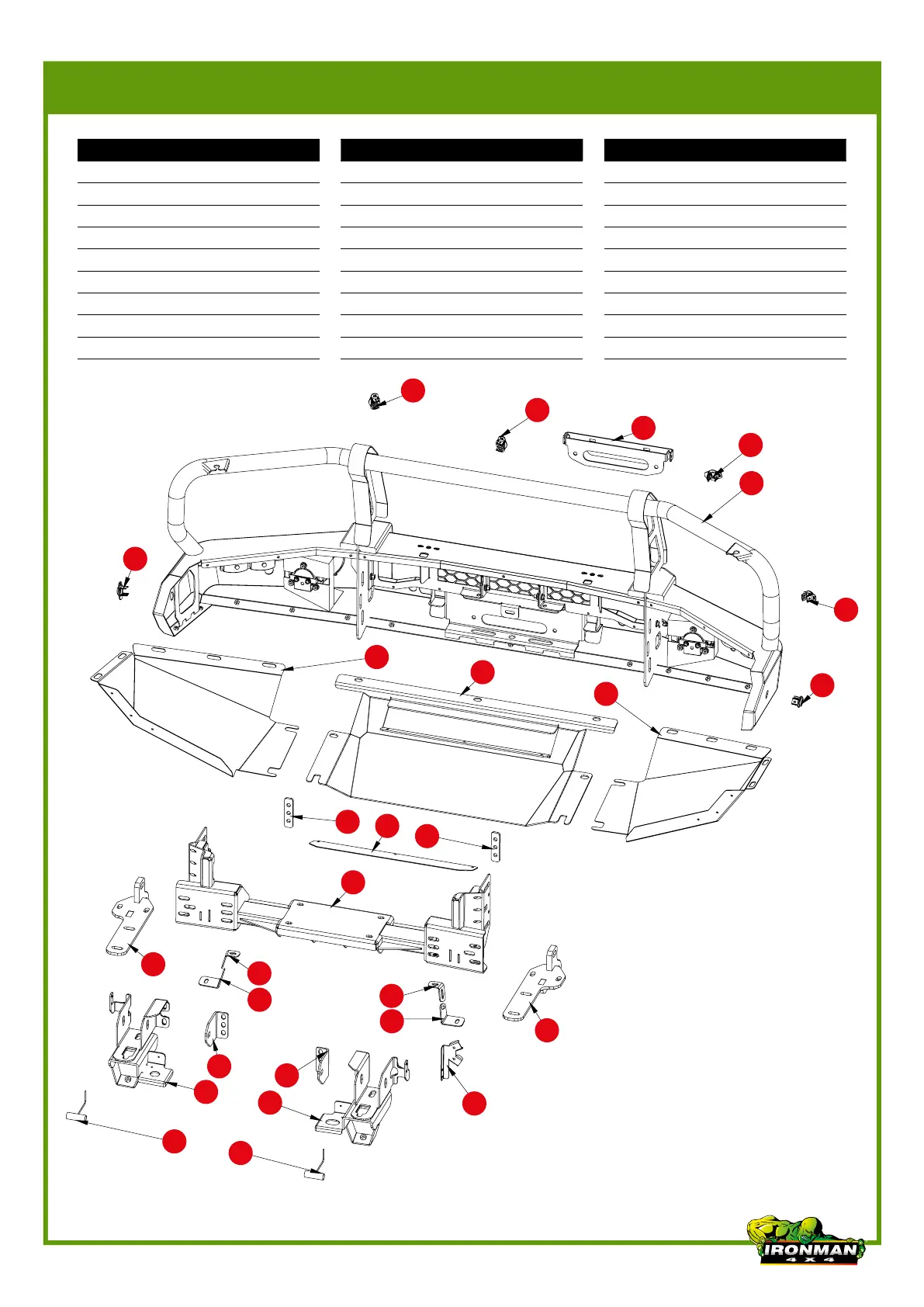

Parts List (Item)
Any damage or losses caused by improper installation and application, goes beyond our quality warranty.
2222
2222
2222
22
2222
2222
11
2222
33
55
44
1111
1010
1010
66
1313
1919
1717
2020
2121
1515
88
77
1414
2121
1818
1616
1212
22
22
14
7
12
16
6
10
11
10
4
21
21
2
1
21
21
5
21
21
3
18
17
19
20
13
8
15
* May be required on overseas models only
*
*
