Ironman4x4 BBCD068 - Wiring Diagrams

Page 12 of 12
BBCD068 Installation Guide
©Copyright 2018 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd
Wiring Diagrams
Parklight
Blue
Relay
Connector
Ground
Fuse
Red
3085
86
87
87a
Red Lamp
Black
LampBattery
Ground
Ground
White
Switch
SPST
Park Light Indicator
Ground Ground
Indicator
Circuit
Park Light
Circuit
Black
YellowWhite
Black

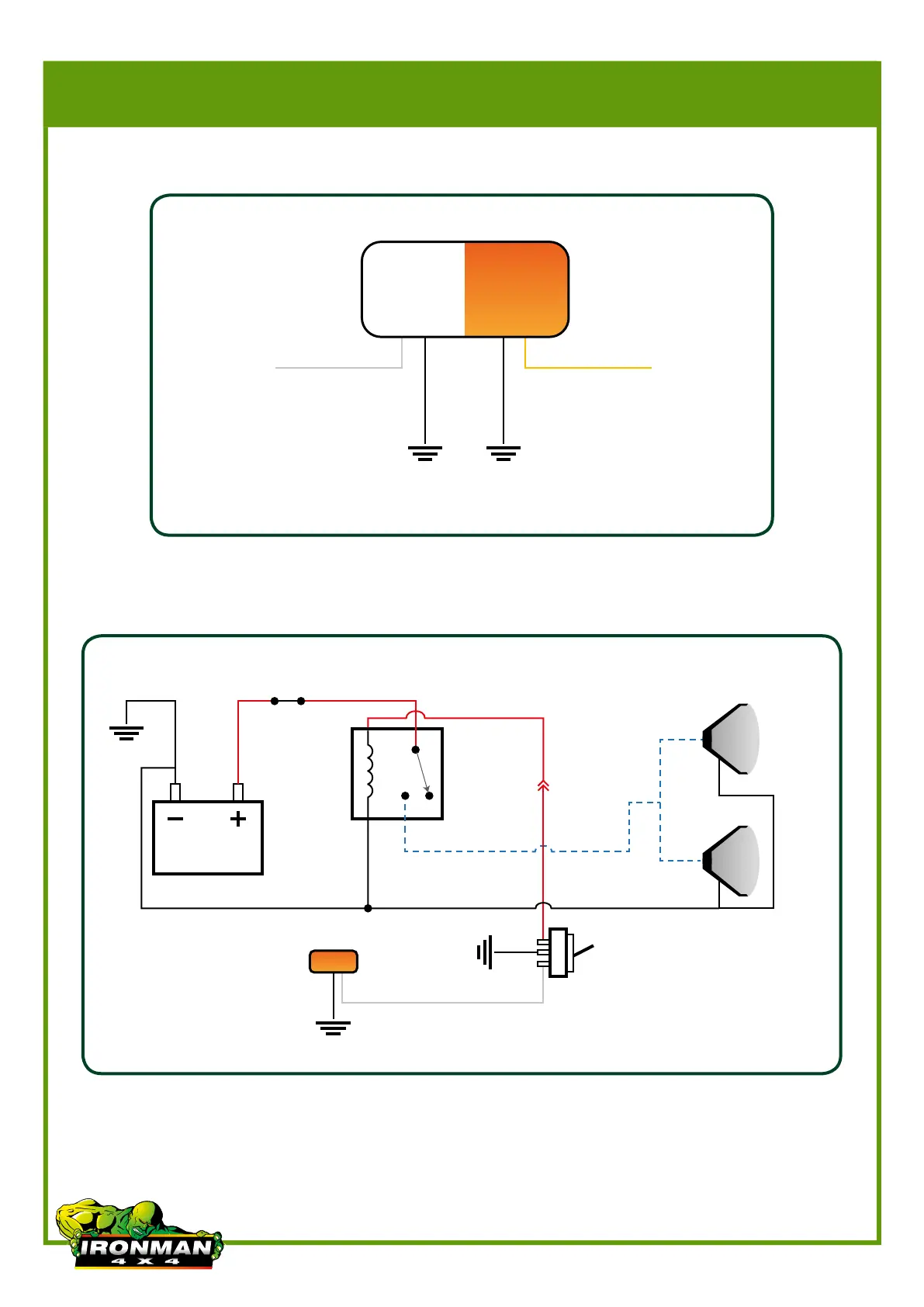

PARK LIGHT & INDICATOR
FOG LIGHTS
