Irritrol Rain Dial-R Quick Start Guides

9

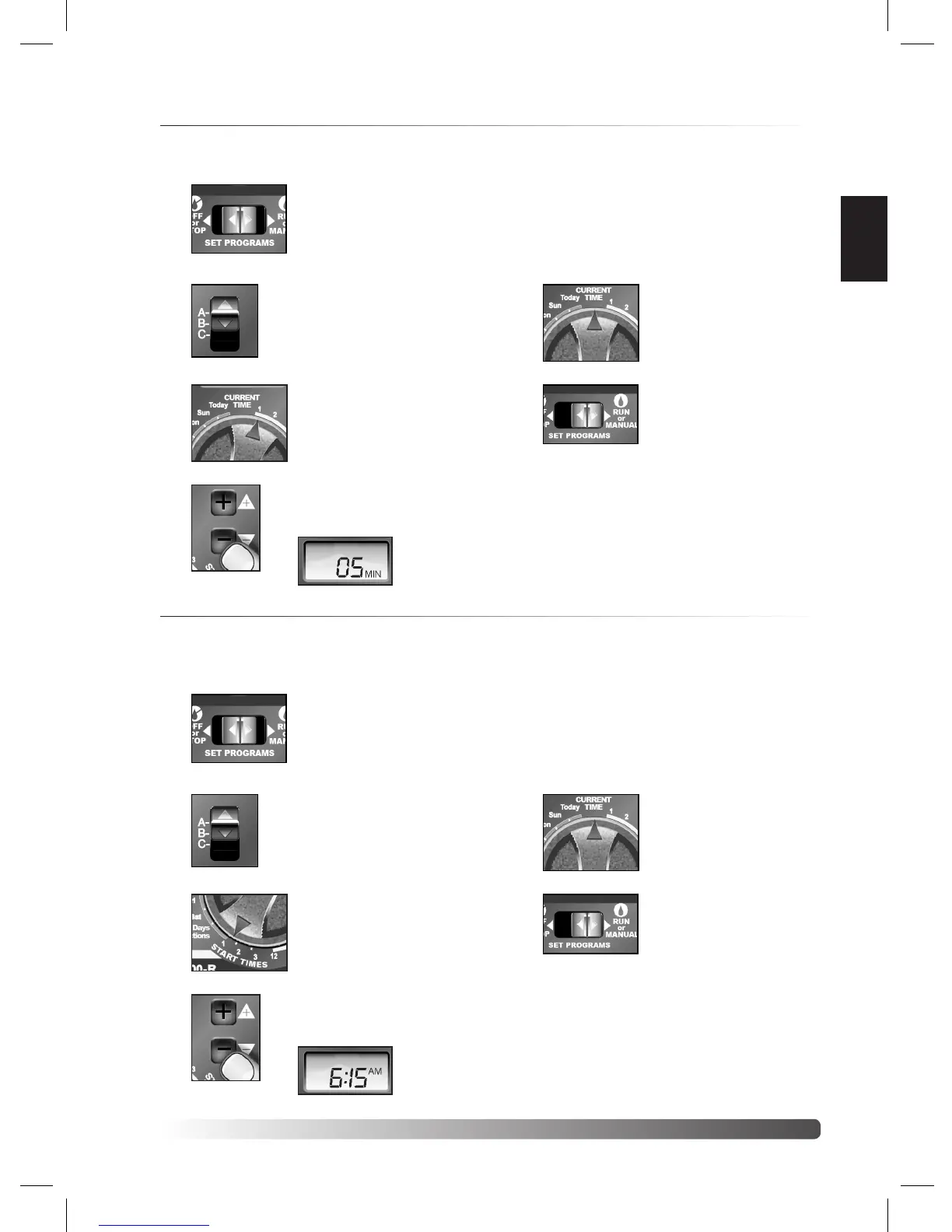

Setting the Valve Run Time Duration
Each valve station can have an individual run time assignment in each Program. Run time can
be set for 1–59 minutes (in 1-minute increments) or 1–5.9 hours (in 1/10-hour increments).
1. Function switch to Set
Programs.
5. Repeat steps 3 and 4 for all valves.
Switch to a different Program. Repeat
steps 3 and 4 as needed.
2. Select Program
A, B, or C.
6. Return Dial to
Current Time.
3. Turn Dial to desired
Valve Number.
7. Function switch back
to Run.
4. Set valve run time.
Display shows
valve run time.
Setting the Program Cycle Start Time(s)
Each Program can have three separate start times. For mature landscapes, one start time per
Program is generally sufficient. For new lawns, two or three start times with short valve run
times can provide the additional irrigation required for grow-in.
1. Function switch to Set
Programs.
5. Repeat steps 3 and 4 to set additional
start times.
Switch to a different Program. Repeat
steps 3 and 4 as needed.
2. Select Program
A, B, or C.
(Make sure to use
Program A and reset its
default values.)
6. Return Dial to
Current Time.
3. Turn Dial to Start Time
1 (or 2 or 3).
7. Function switch back
to Run.
4. Set start time.*
Display shows
start time.
*Note: To remove a start time, select
Off, displayed between 11:59–12:00 and
5:59–6:00 (AM and PM).
