.. One 4-way cable for connect Trasducers. Cable is 10 meter long, and
terminated on one side with safety 4 mm banana plugs and on other side
with male measure connector.
.. One plastic bag that hosts all the cables.

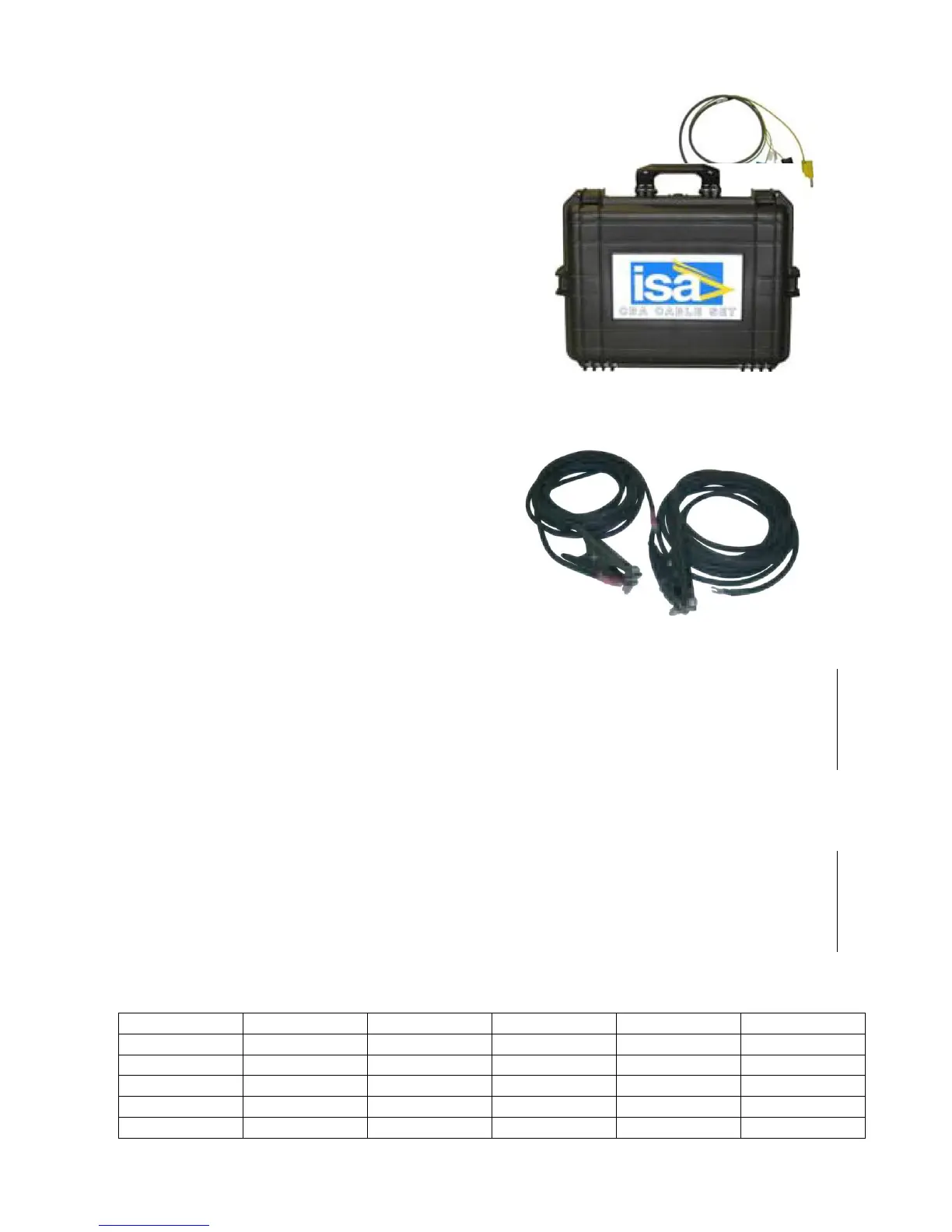

If the micro-ohm meter option is included, the following connection cables are provided:
.. Two current conductors, marked red and black.
Cable length: 10 m; cross section 25 sq. mm.
Terminated with a suitable terminator on the
CBA1000 side, and with an high current
crocodile on the CB side.
If the four coils drive option is included, the following additional connection cables are provided:
.. One cable with four conductors for the connection to the CB coils. Cable length: 10 m;
cross section 1.5 sq. mm, terminated with safety banana plugs on both sides; colors: black;
red, blue, yellow.
Two jumpers, with 2 safety plugs, 10 cm long, for the connection of coil drivers to the supply.
If the MTC option is included, the following additional connection cables are provided:
.. One cable, single conductor, for the connection to the positive auxiliary supply. Cable
length: 4 m; cross section 1.5 sq. mm, terminated with safety banana plugs on both sides;
color: black.
.. Two cables, single conductor, for the connection to the MTC coil. Cable length: 2 m; cross
section 1.5 sq. mm, terminated with safety banana plugs on both sides; color: red.
The code of the option changes with the additional options, as follows.
